Mini PC, Micro Firewall Appliance, Mini Firewall Router, Intel Core I7 1255U, 6 x Intel 2.5GbE LAN, AES-NI, Silent Fan, HDMI 2.1, DP 1.4A, 3 x M.2 Slots, H2, OPNsense, 8GB RAM 512GB SSD - OEM
- High-Performance Processing: Core i7-1255U (10C/12T, up to 4.7GHz Turbo) with 15W TDP for efficient multitasking in networking applications.
- Advanced Networking: Six i225-V 2.5G Ethernet ports, with optional and extra pay for 802.3af PoE on LAN 1-4 for flexible deployments.
- Expandable Storage & Memory: Supports up to 64GB DDR4 RAM, one M.2 NVMe SSD, and a 2.5" SATA drive for scalable storage solutions.
- Dual 4K Display & Rich I/O: Features DP 1.4a + HD-MI 2.1 (4K@60Hz), 6x USB ports, and a COM console for versatile connectivity.
- Industrial Durability: Operates in -20°C to +50°C (industrial SSD) with watchdog, PXE, and auto-power-on for reliable 24/7 operation.
+
+
Overview
Specs
Reviews
Model Number: Partaker H2
CPU: Intel Core I7 1255U Processor, ship one of them
Security: TPM 2.0
Color: Metal gray (color can be customized freely)
Material: High-quality all-aluminum alloy
BIOS: AMI EFI BIOS
Memory: 2 x SODIMM DDR4 3200 MT/s, max. 64GB
Storage: 1 x M. 2 2280 M-Key NVME SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: Intel 2.5G bE I226-V

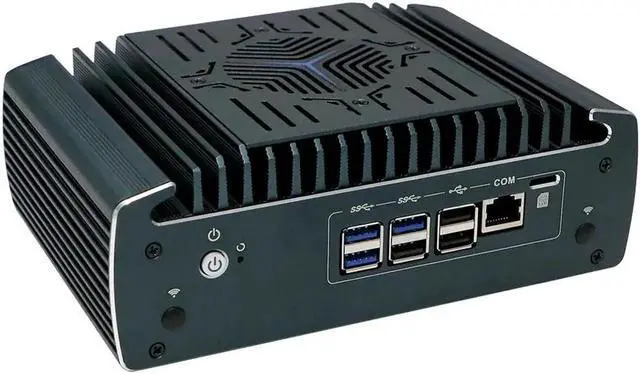

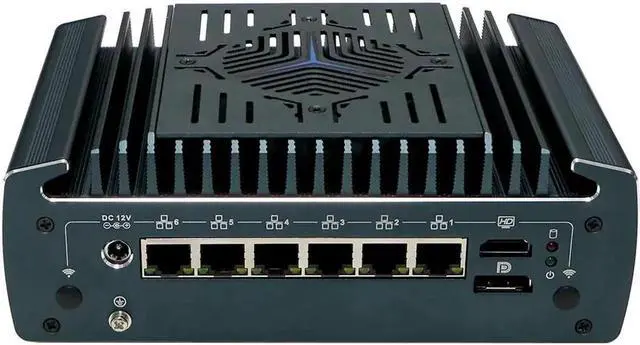

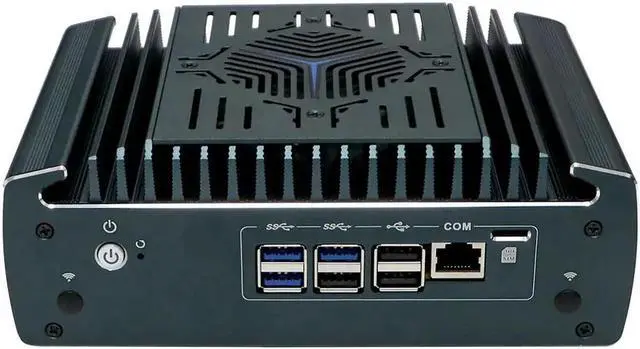

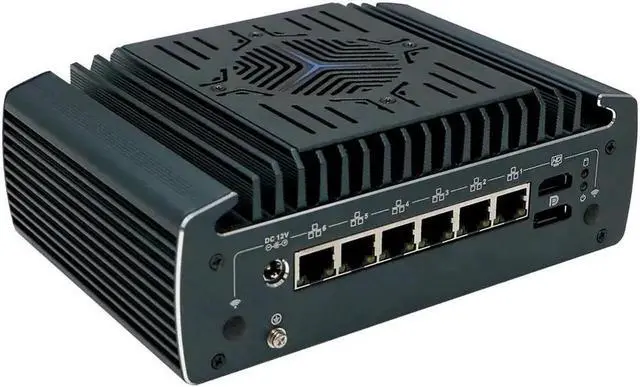

I/O Interface: Power ON/OFF, Reset, 3 x USB 3.1 Gen2, 3 x USB 2.0, COM, Nano SIM Slot, DC_IN, Audio, 6 x LAN, HDMI, DP
Display Port: 1 x DP, 1 x HDMI (Support synchronous/asynchronous dual display, DP interface resolution up to 4096x2160@60Hz)
Expansion: 1 x M. 2 2230 E-key for WiFi, 1 x M. 2 3052 B-key USB 3.0 protocol for 4G/5G module
compatible with M. 2 2242 B-key, support WiFi and 4G/5G module at the same time, contact us to customize
Power: DC100-240V AC/50-60hz, 12V
Work Temperature: 0°C ~ +50°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
TDP: 15W

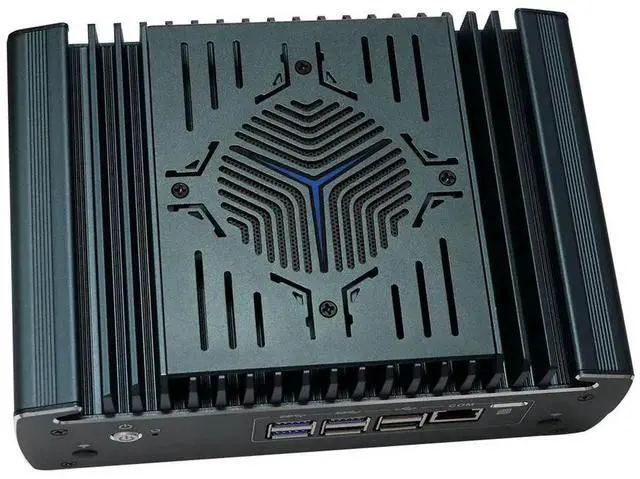

Cooling system: Active and passive heat dissipation design, PWM intelligent temperature control fan

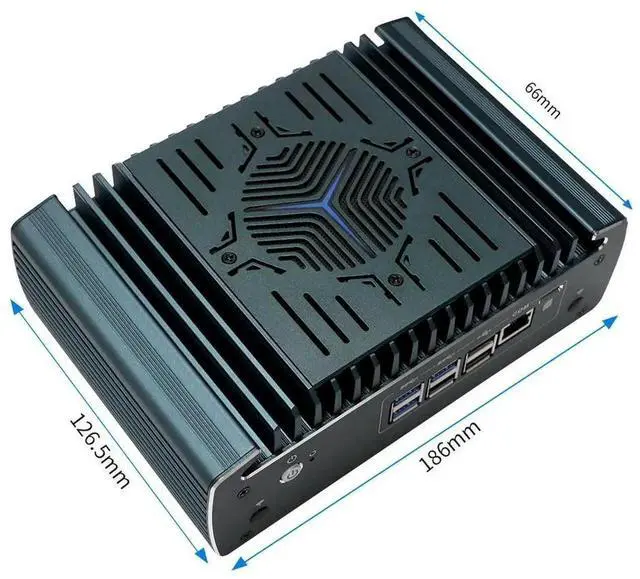

Size: 186 x 126.5 x 66mm
Weight: 1.3 kgs
Packing List: Partaker H2 firewall appliance, power supply, power cord, vesa mount, warranty card
Application: Firewall, VPN, Network server, Network security, Router etc.
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level

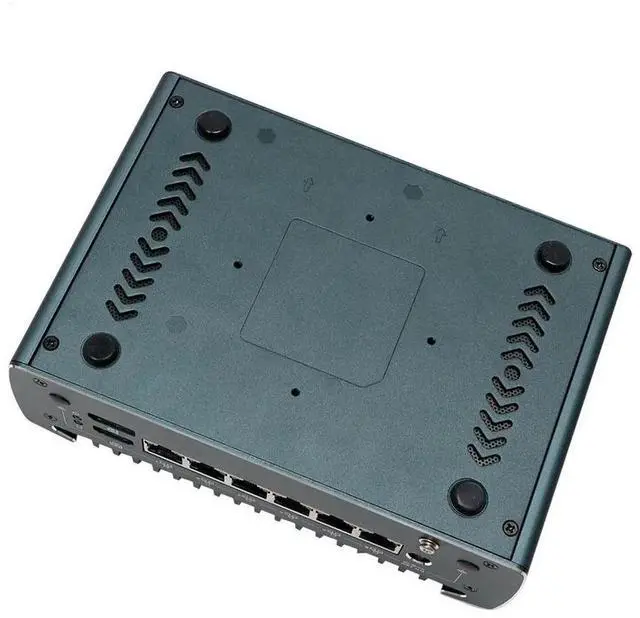

Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method
System Compatibility: 5.10. x and above core-based freebsd router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
