Micro Firewall Appliance, Mini PC, OPNsense, VPN, Router PC, Intel J4125, C5, AES-NI, DP, HDMI, COM, SIM Slot, 4 x Intel I211 I210, 8G RAM, 128G SSD
- Powerful J4125 CPU Quad-core processor with 2.0GHz base speed, turbo up to 2.7GHz, ideal for efficient multitasking and network applications.
- Dual Storage Support Features 1x M.2 2280 SSD slot and 1x 2.5" HDD bay for flexible storage expansion.
- High-Speed Connectivity Equipped with 4x i210/i211-AT Gigabit LAN ports for reliable wired networking.
- Compact & Durable Design All-aluminum casing with anodized surface, measuring just 144 x 126.5 x 42mm for space-saving deployment.
- Versatile Expansion Options Includes M.2 slots for SSD/WiFi/BT and a Mini PCIe slot for optional 4G module support.
+
+
Overview
Specs
Reviews
Model Number: Partaker C5
Chassis: Aluminum
CPU: Intel Celeron Processor J4125 4M Cache, up to 2.70 GHz
AES-NI Supported: Yes
Memory: 1 x SODIMM DDR4-2400, max. 32GB
Storage: 1 x M. 2 2280 SATA Protocol SSD and 1 x 2.5 inch SATA SSD/HDD
Network Card: Intel I210/I211-AT 10/100/1000M LAN

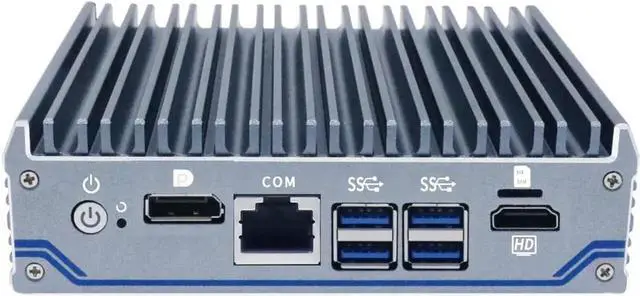

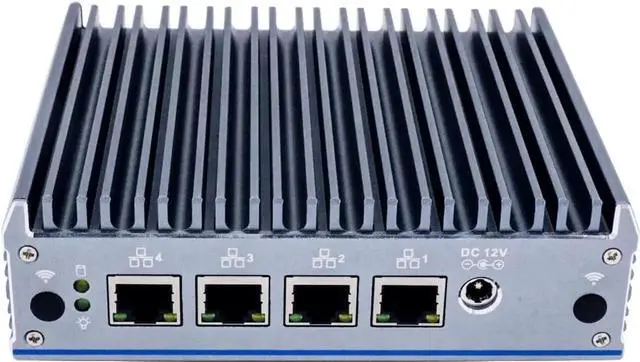

I/O Interface: Power ON/OFF, Reset, DP, COM, 4 x USB 3.0, SIM Slot, HDMI, 4 x LAN, DC_IN
Expansion: 1 x M. 2 2230 E-key for USB Signal Bluetooth, 1 x Mini PCIE slot for USB Signal WIFI/Bluetooth/4G module
Power: DC100-240V AC/50-60hz, 12V 4A
Work Temperature: 0°C ~ +50°C Commercial HDD, -20°C ~ +60°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
TDP: 10W
Cooling system: Fanless
Size: 144 x 126.5 x 42mm
Weight: 0.7 kgs

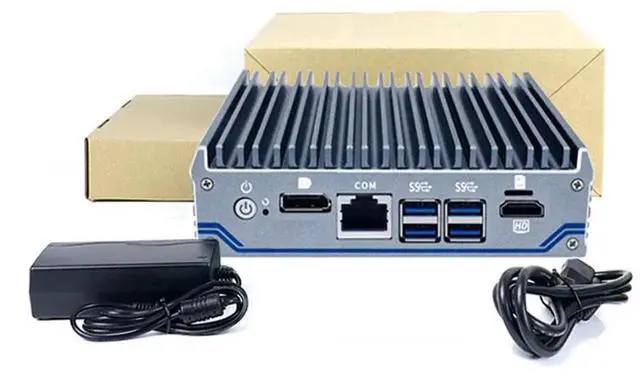

Packing List: Partaker C5 firewall appliance, power supply, power cord, vesa mount, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as vesa mount method.
System Compatibility: Any freebsd based router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, untangle, opnsense, sophos xg and other popular open-source software solutions
Application: Firewall, VPN, Network Server, Network Security, Router and etc.
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
