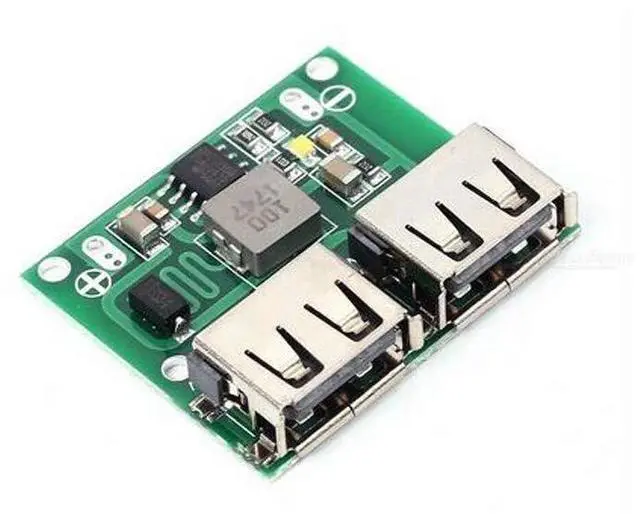

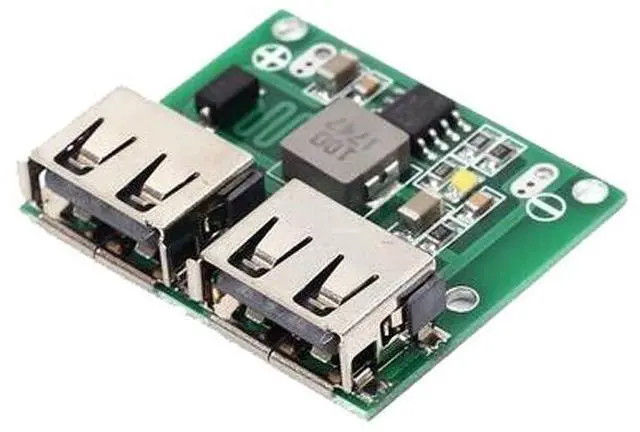

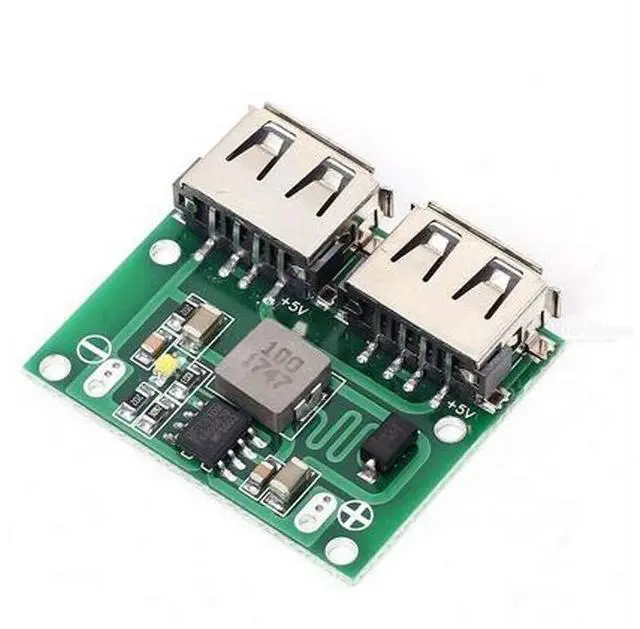

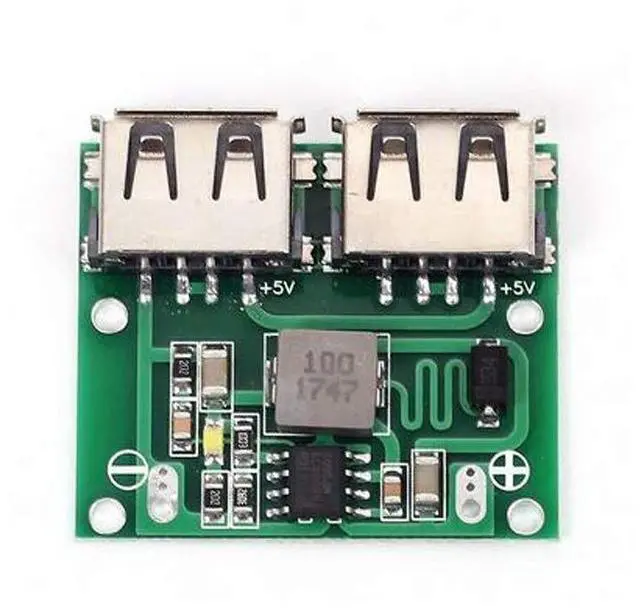

2 USB Output 9V/12V/24V to 5V 3A DC-DC Buck Regulator Charge Module for Car
- Product Size: 28*33*8mm; Input Voltage Range: 6-26V; Output Voltage: 5.2V (Considering the charging line loss, the output is about 5.2V, the load is about 5V); Output Current (Dual Socket): The total output current is 2A under normal heat dissipation conditions, and the total output current is; 3A under the condition of fan cooling.
+
+
Overview
Specs
Reviews
Notes: The positive and negative poles cannot be reversed, and the input voltage should not exceed 26V, otherwise the chip will be damaged! When powering on, you cannot touch the sampling resistor and IC pin on the circuit board by hand. Otherwise, the output voltage and device may be suddenly damaged!
Features: Product
Size: 28*33*8mm
Input Voltage Range: 6-26V
Output Voltage: 5.2V (Considering the charging line loss, the output is about 5.2V, the load is about 5V)
Output Current (Dual Socket): The total output current is 2A under normal heat dissipation conditions, and the total output current is 3A under the condition of fan cooling.
Features: Product
Size: 28*33*8mm
Input Voltage Range: 6-26V
Output Voltage: 5.2V (Considering the charging line loss, the output is about 5.2V, the load is about 5V)
Output Current (Dual Socket): The total output current is 2A under normal heat dissipation conditions, and the total output current is 3A under the condition of fan cooling.
