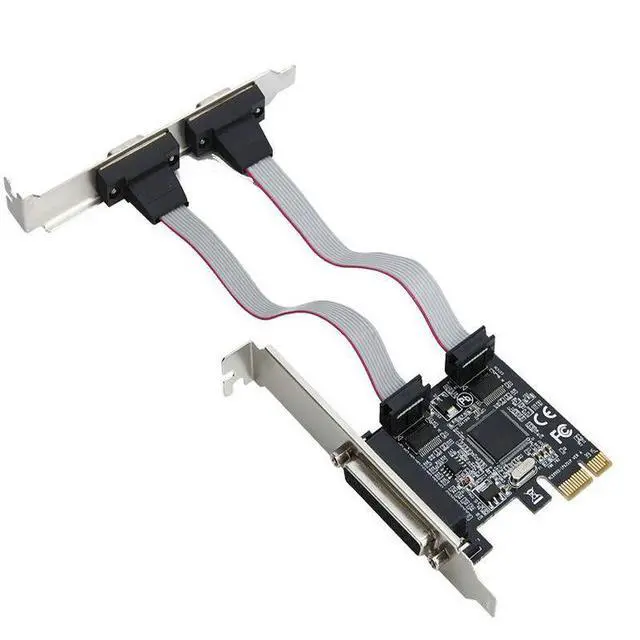

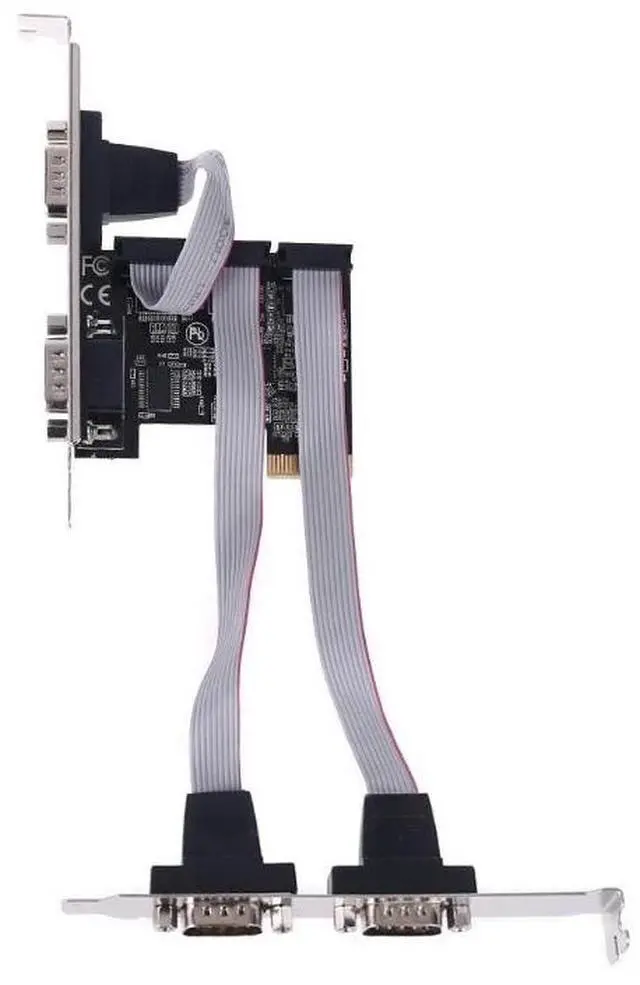

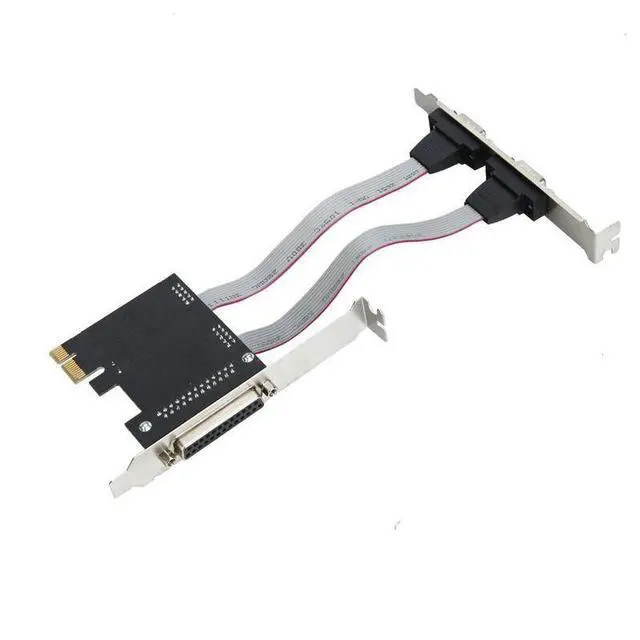

PCIe to 1-Port Parallel + 2-Port RS232 Serial Card AX99100 Chipset, 25Mbps, Pin 9 Power (5V/12V), IEEE1284
- Dual Serial + Parallel Combo Card: Adds two DB9 RS232 serial ports and one DB25 parallel port via a single PCIe slot, providing legacy connectivity for industrial equipment, POS systems, printers, and embedded applications.
- AX99100 PCIe 2.0 Controller: Powered by the advanced AX99100 PCI Express controller, delivering reliable performance with high-speed bidirectional serial data rates up to 25Mbps.
- Pin 9 Power Output: Serial ports support selectable 5V or 12V power output on pin 9, enabling direct powering of connected serial devices without external power adaptersideal for POS terminals, industrial scanners, and sensors.
- IEEE1284 Parallel Compatibility: Supports IEEE1284 parallel standards including SPP, Byte Mode, and ECP (Enhanced Capabilities Port) for compatibility with legacy printers, plotters, and industrial equipment.
- Industrial-Grade Reliability: Wide operating temperature range of -40°C to 80°C with independent power regulation for stable 5V/12V output; no external power connection required.
+
+
Overview
Specs
Reviews
Expand your system's legacy connectivity with this PCIe to 1-Port Parallel + 2-Port RS232 Serial Card. Powered by the AX99100 PCI Express controller, this combo expansion card adds two DB9 RS232 serial ports and one DB25 parallel port to any desktop or industrial PC with an available PCIe slotideal for industrial automation, point-of-sale systems, legacy printer connections, and embedded applications.
Dual Serial Ports with Pin 9 Power
The two DB9 RS232 serial ports offer advanced capabilities:
- Selectable 5V or 12V power output on pin 9 for powering connected devices directly
- Bidirectional speeds up to 25Mbps for high-throughput serial communication
- Special baud rate support for non-standard configurations
- Independent power regulation no external power required for 5V/12V output
IEEE1284 Parallel Port
The DB25 parallel port supports:
- SPP (Standard Parallel Port) for basic printer compatibility
- Byte Mode for faster bidirectional data transfer
- ECP (Enhanced Capabilities Port) for high-performance mode with DMA support
- Compatible with legacy printers, plotters, and industrial equipment
