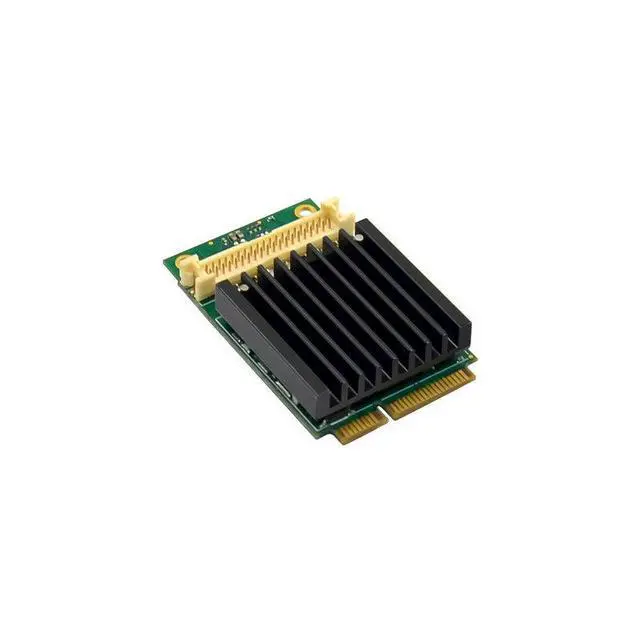

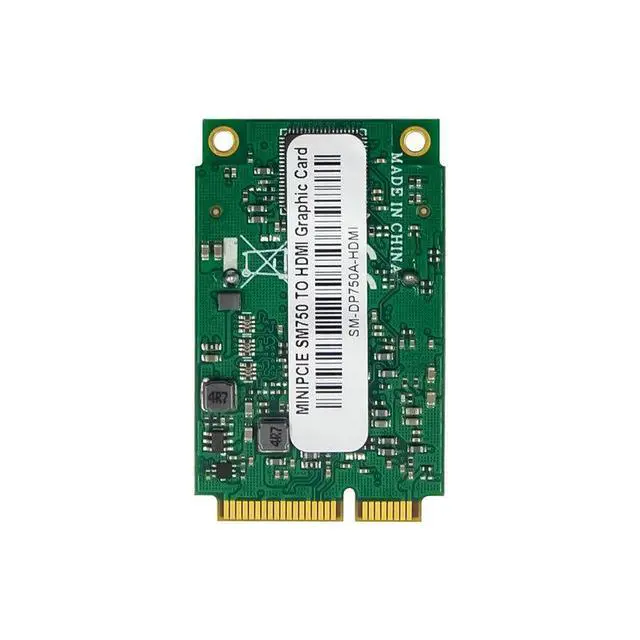

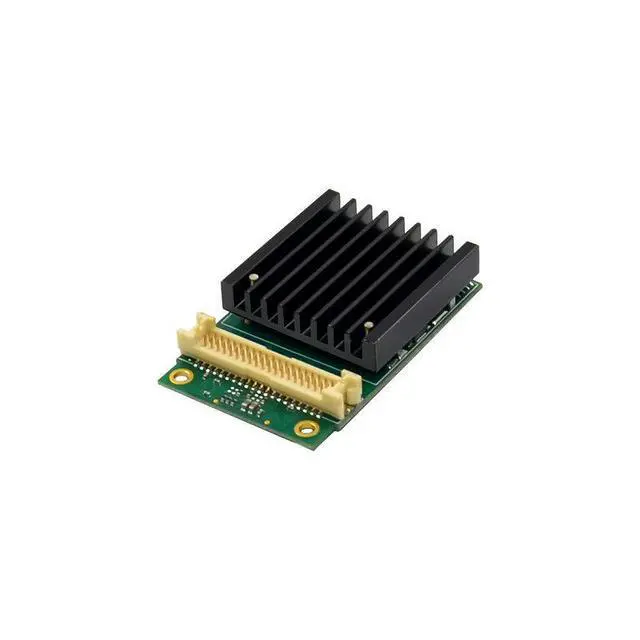

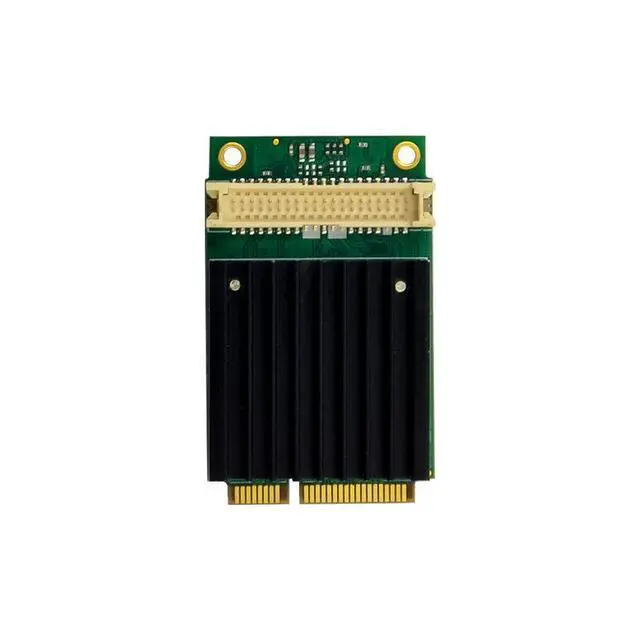

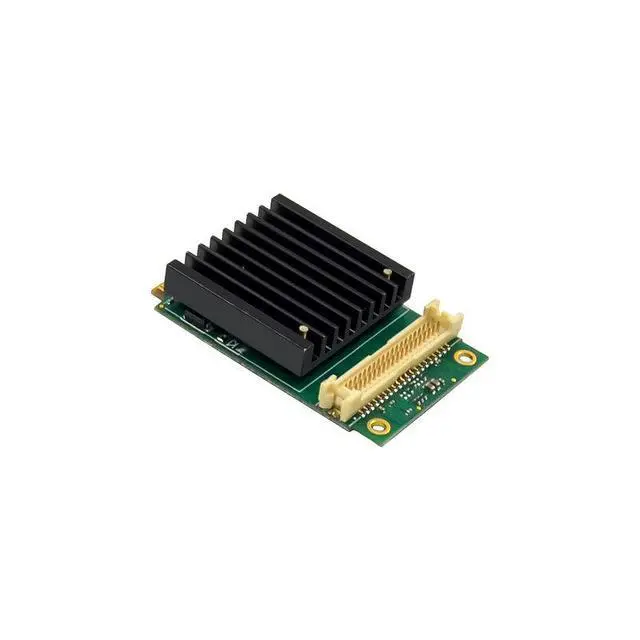

Mini PCIe Industrial Graphics Card SM750, HDMI Output, 2D Graphics Engine, 16-64MB DDR, Dual Display Support, 1920x1440, Wide Temp (-40°C to +85°C), for Embedded & Industrial Systems

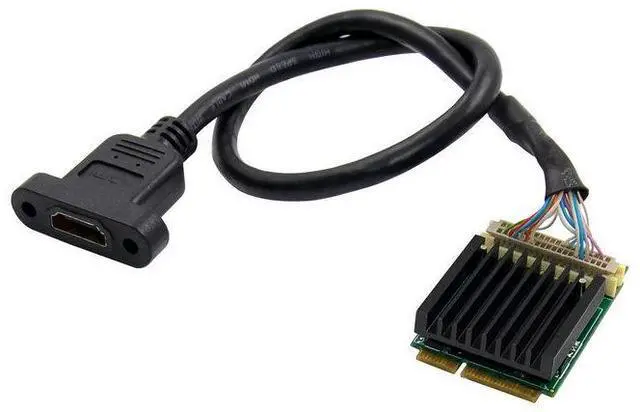

- Mini PCIe Industrial Graphics Card: Adds HDMI display output to embedded systems, industrial PCs, thin clients, and compact devices via Mini PCIe slot, providing reliable 2D graphics for industrial applications.
- SM750 2D Graphics Engine: Powered by the SM750 multimedia display processor, featuring a 128-bit 2D graphics accelerator, hardware scaling, color space conversion, and video acceleration for embedded environments.
- Dual Independent Display Support: Supports dual 300MHz DACs and dual 18-bit DVO interfaces, enabling independent resolutions and refresh rates up to 1920 x 1440 per displayideal for multi-monitor industrial workstations.
- Flexible Memory Configuration: Onboard 16MB DDR memory with optional external expansion up to 64MB DDR (64-bit interface), ensuring smooth graphics performance for embedded and industrial applications.
- Industrial-Grade Reliability: Ultra-low power consumption (<1.5W) with wide operating temperature range of -40°C to +85°C, making it ideal for fanless industrial systems, factory automation, and outdoor embedded deployments.
+
+
Overview
Specs
Reviews
Add reliable HDMI graphics capability to your embedded or industrial system with this Mini PCIe Industrial Graphics Card. Powered by the SM750 multimedia display processor, this compact graphics card is specifically designed for embedded industry requirements, providing 2D acceleration, video scaling, and dual display support in a Mini PCIe form factorperfect for industrial PCs, thin clients, POS systems, and digital signage applications.
SM750 2D Graphics Engine
The SM750 processor delivers robust 2D graphics performance for embedded applications:
- 128-bit 2D graphics accelerator with BitBLT, ROP3, transparent Blt, pattern BLT, and line drawing
- Hardware scaling with 4:1 to 1:8 ratio support
- YUV to RGB color space conversion (16/32-bit) for video playback
- Hardware screen rotation (90°, 180°, 270°) for flexible display orientation
Dual Independent Display Support
The card supports dual independent displays with:
- Dual 300MHz DACs for analog output (VGA)
- Dual 18-bit DVO interfaces for digital output (HDMI, LVDS, TMDS with external converter)
- Independent resolutions and refresh rates per display up to 1920 x 1440
- 3-color hardware cursors on each display
Flexible Memory Architecture
Memory configurations include:
- Onboard 16MB DDR (embedded)
- External expansion up to 64MB DDR (64-bit interface)
- Configurable for cost-effective or high-performance deployments
