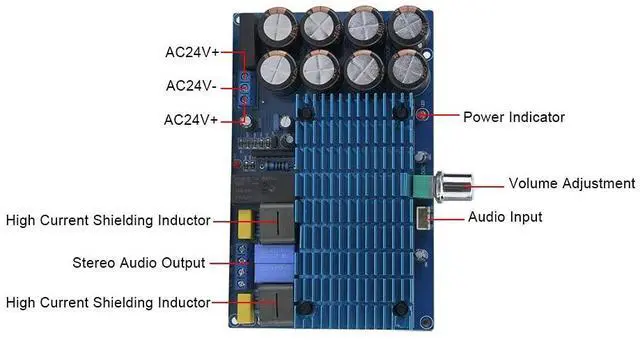

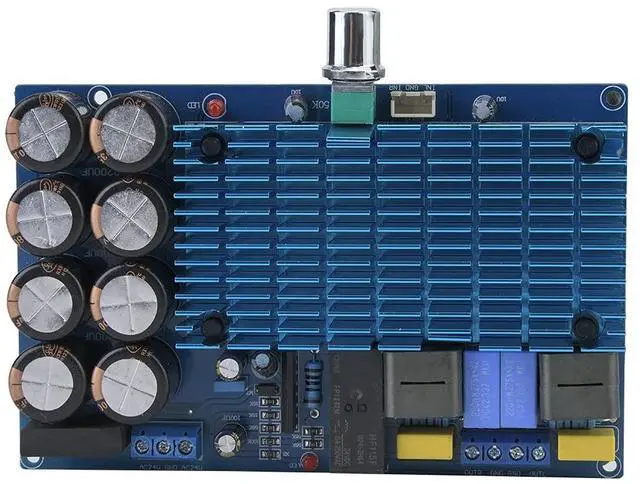

TDA8954 Channel High Power HiFi Stereo Digital Audio Amplifier Board 210W*2
- STEADY STREAM POWER---Using 10A and rectifying flat bridges, the amplifier board can ensure a steady stream of powerful power support
- MAIN FEATURE---The output uses a red ring high-current inductor to ensure that the sound is crisp and powerful, when using BTL bridging, can output 420W when use 8ohm speaker
- GOOD -TO-NOISE RATIO---The resistor uses a five-ring metal resistor, and the main loop adopts a five-ring metal film resistor with an accuracy of ±1%, which ensures a good -to-noise ratio of the amplifier board
- TDA8954TH CHIP---The amplifier board adopts original TDA8954TH chip, the main filter electrolytic capacitor uses a capacity of 8*1800UF/35V
- GOOD CURRENT PASSING PERFORMANCE---The PCB adopts 1.6mm thick double-sided plate, 2.0oz copper thickness, and spray tin process to ensure good current passing performance
+
+
Overview
Specs
Reviews
Features:
1. Original TDA8954TH chip.
2. The main filter electrolytic capacitor uses a capacity of 8×1800UF/35V.
3. Use 10A and rectifying flat bridges to ensure a steady stream of powerful power support.
4. The resistor uses a five-ring metal resistor, and the main loop adopts a five-ring metal film resistor with an accuracy of ±1%, which ensures a good -to-noise ratio of the amplifier board.
5.
First-class PCB quality: The PCB adopts 1.6 mm thick double-sided plate, 2.0 oz copper thickness, and spray tin process to ensure good current passing performance.
6. The output uses a red ring high-current inductor to ensure that the sound is crisp and powerful.
7. When using BTL bridging, can output 420W when use 8ohm speaker
Specification:
Chip: TDA8954TH
Working Method: Class D
Supply Voltage: AC 18-28V
Recommended Supply Voltage: AC24V-0-AC24V
Rated Output Power: 2×210W
Static Current: 65mA
Working Efficiency: 90%
Frequency Response: 20Hz-20KHz
PCB Size: 142×91×28mm / 5.6 × 3.6 × 1.1 in
Package List:
1 × Amplifier Board
1 × Cable
1. Original TDA8954TH chip.
2. The main filter electrolytic capacitor uses a capacity of 8×1800UF/35V.
3. Use 10A and rectifying flat bridges to ensure a steady stream of powerful power support.
4. The resistor uses a five-ring metal resistor, and the main loop adopts a five-ring metal film resistor with an accuracy of ±1%, which ensures a good -to-noise ratio of the amplifier board.
5.
First-class PCB quality: The PCB adopts 1.6 mm thick double-sided plate, 2.0 oz copper thickness, and spray tin process to ensure good current passing performance.
6. The output uses a red ring high-current inductor to ensure that the sound is crisp and powerful.
7. When using BTL bridging, can output 420W when use 8ohm speaker
Specification:
Chip: TDA8954TH
Working Method: Class D
Supply Voltage: AC 18-28V
Recommended Supply Voltage: AC24V-0-AC24V
Rated Output Power: 2×210W
Static Current: 65mA
Working Efficiency: 90%
Frequency Response: 20Hz-20KHz
PCB Size: 142×91×28mm / 5.6 × 3.6 × 1.1 in
Package List:
1 × Amplifier Board
1 × Cable
