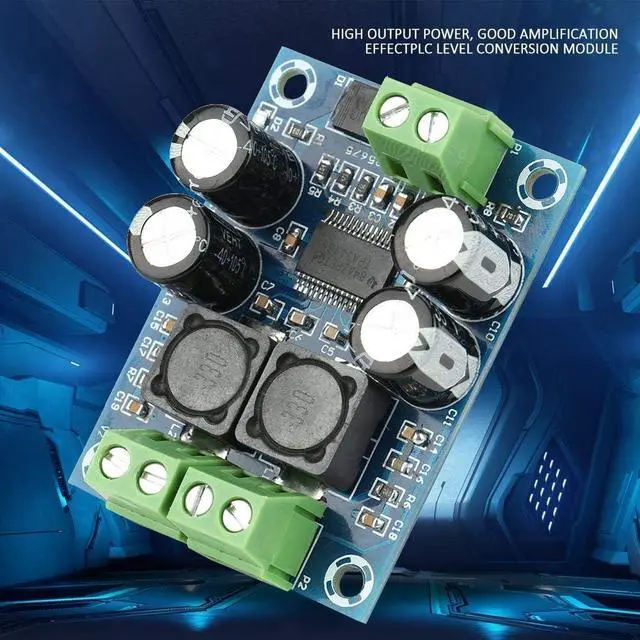

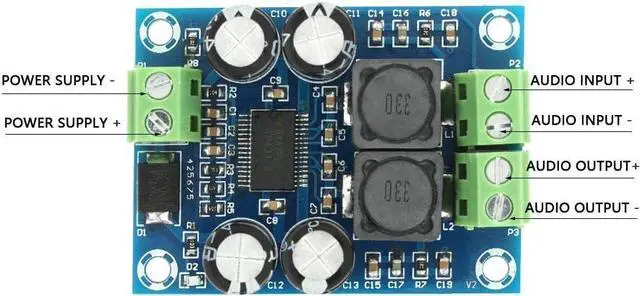

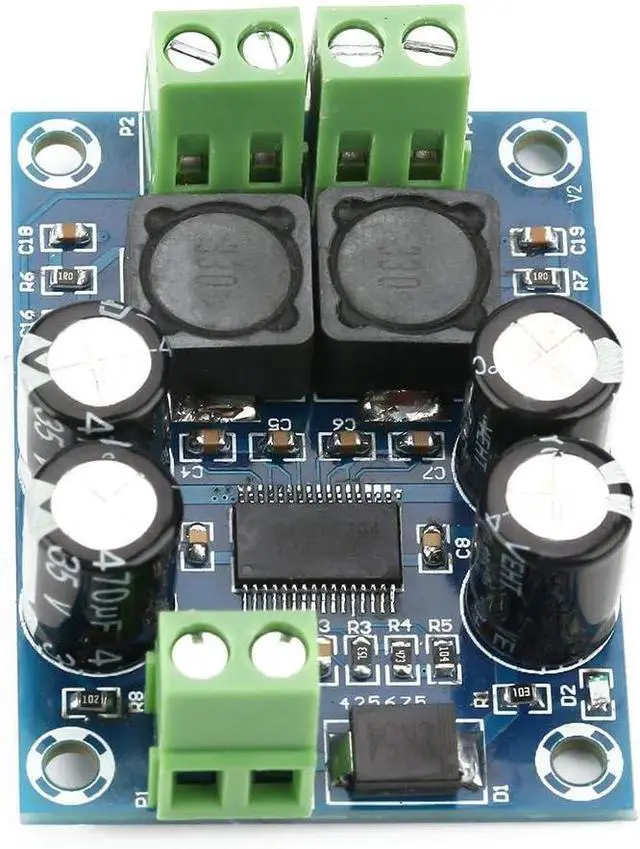

60W Mono Amplifier Module TPA3118 Amplifier Board Digital Audio Power Amp Module 60W DC10V to 24V
Limited time offer, ends 04/03 By Goldendisk
- Efficient Design: This circuit uses PBTL (Parallel Bridge-Tied Load) mode resulting in lower and higher power.
- Enhance Audio Power: Connect high audio systems in parallel for elevated power output.
- High Output Potential: Use it with 2 ohm audio devices to achieve a 60W power output under a 24V power supply.
- Versatile Usage: It is for a range of electronics including TVs, monitors, laptops, portable speakers, and DVD players.
- Power Boost: Ideal for upgrading various audio systems as it enhances sound output without any significant increase in energy consumption.
+
+
Overview
Specs
Reviews
Specification:
Model: XR-M311
Amplification type: Class D
Work efficiency: 93%

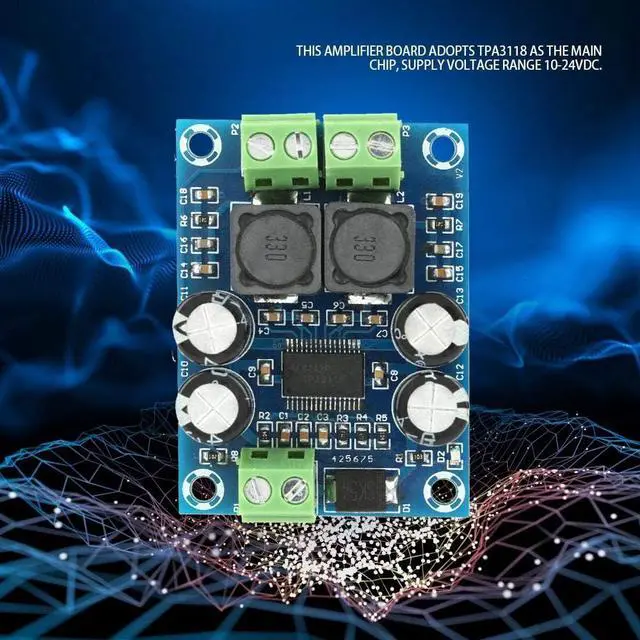

Chip Type: TPA3118
Supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35Hz-88kHz
Number of channels: Mono
Impedance matching: 2-6 ohm

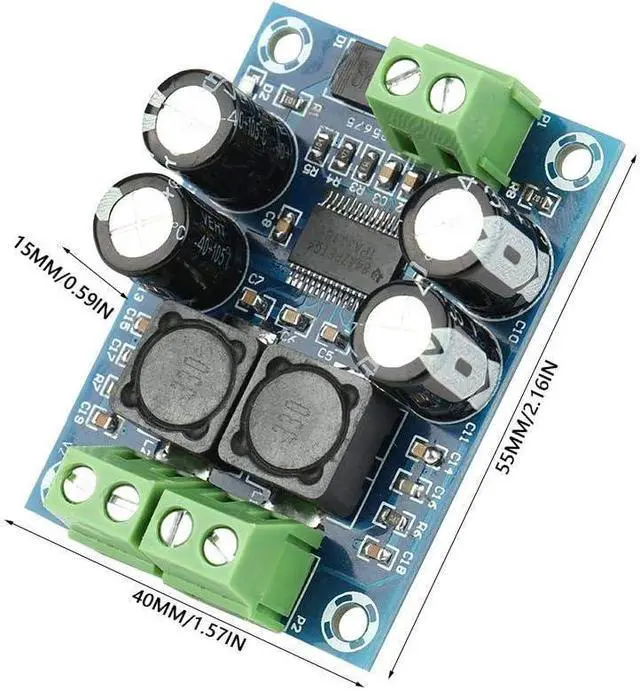

Size: 55*40*15mm / 2.16 * 1.57 * 0.59 in
Weight: Approx. 30g/ 1.06 oz
Model: XR-M311
Amplification type: Class D
Work efficiency: 93%
Chip Type: TPA3118
Supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35Hz-88kHz
Number of channels: Mono
Impedance matching: 2-6 ohm
Size: 55*40*15mm / 2.16 * 1.57 * 0.59 in
Weight: Approx. 30g/ 1.06 oz
