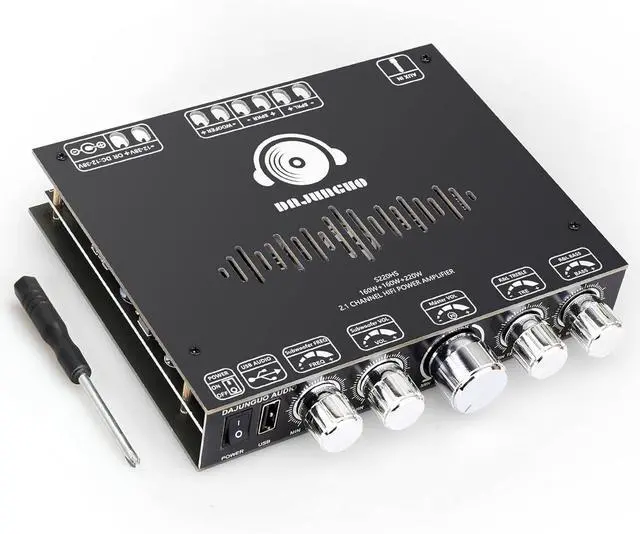

S220HS 2.1 Channel Bluetooth Power Amplifier Board, TDA7498E Chip 160W×2+220W, 12V-38V Audio Power Amplifier Module, Support Custom Bluetooth Name and Set Bluetooth Password

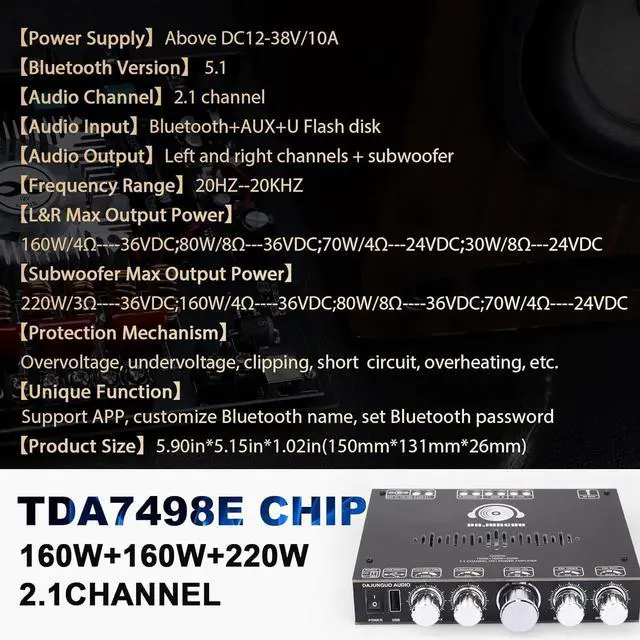

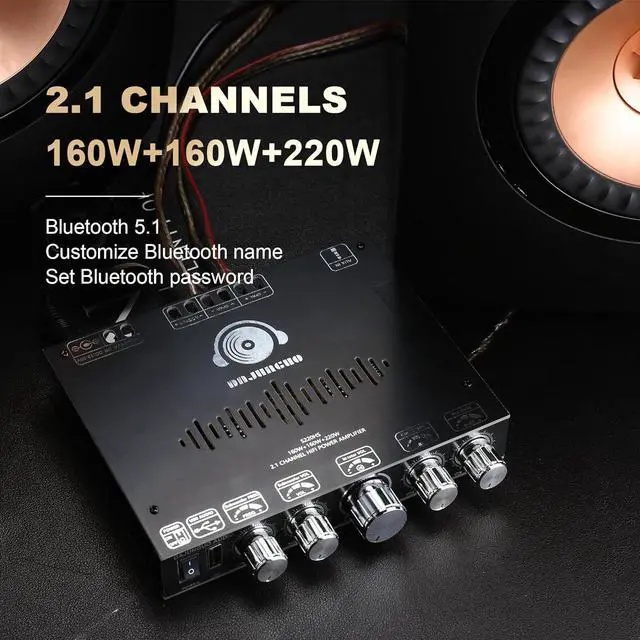

TDA7498E ChipThis power amplifier board uses two TDA7498E chips, with a wide voltage input of DC: 12-38V and an output peak of 160W * 2+220W (PMPO)

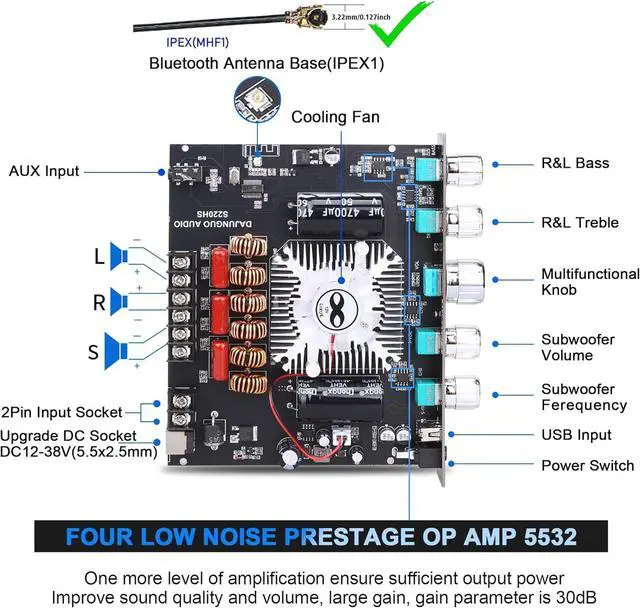

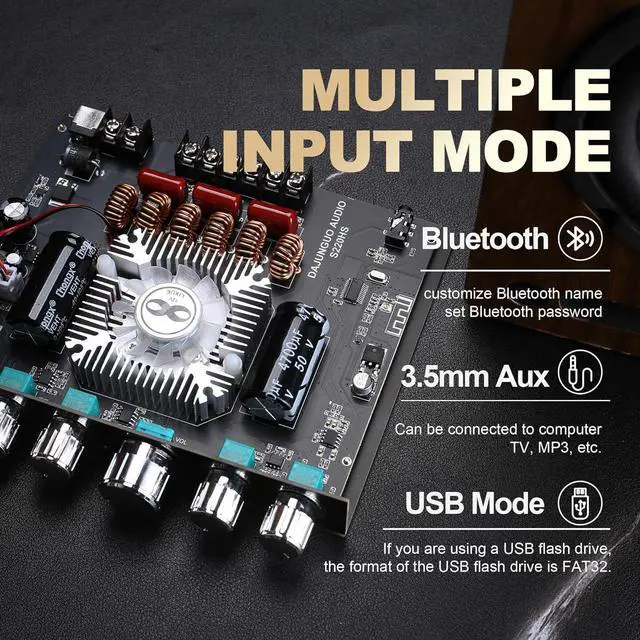

Multiple Input Methods This power amplifier board has multiple input methods such as Bluetooth input, 3.5mm AUX input, USB input, etc. It can be compatible with most devices, such as mobile phones, tablets, laptops, MP3 players, etc. You can switch your favorite audio input methods at any time
Controlled Through APP In order to explore the maximum potential of this amplifier board, we have developed an app for it. You can set the Bluetooth name and password of the amplifier board through the app

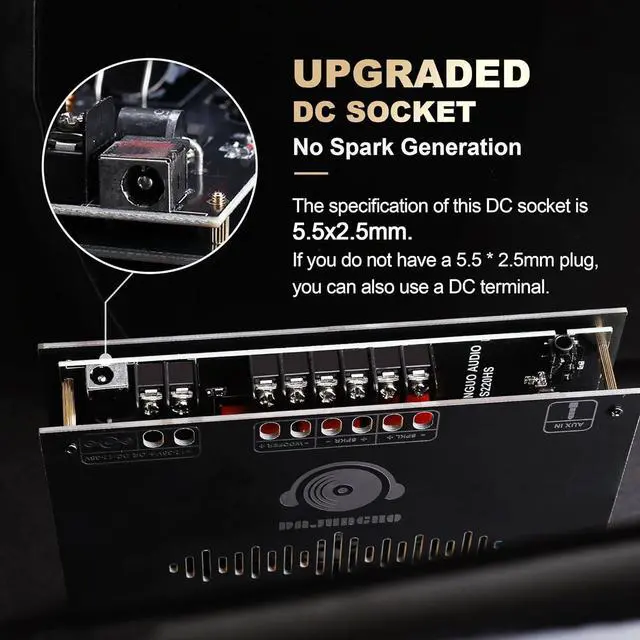

Upgrade DC SocketThe specification of the gold-plated high current shielded DC socket is 5.5 * 2.5mm,There will be no sparks generated when connecting to the power supply, making it safer and more reliable.

Overview

Specs

Reviews

Item dimensions L x W x H 5.9 x 5.15 x 1.02 inches
Voltage 36 Volts (DC)

Maximum Supply Voltage 36 Volts (DC)
Minimum Supply Voltage 15 Volts
Mounting Type Surface Mount
Brand DAJUNGUO
Number of Channels 2
Output Power 5.4E +2 Watts
Package Type Name box or pouch
Specification Met CE, FCC, RoHS
