Specification parameters
Host interface: USB-C 3.1

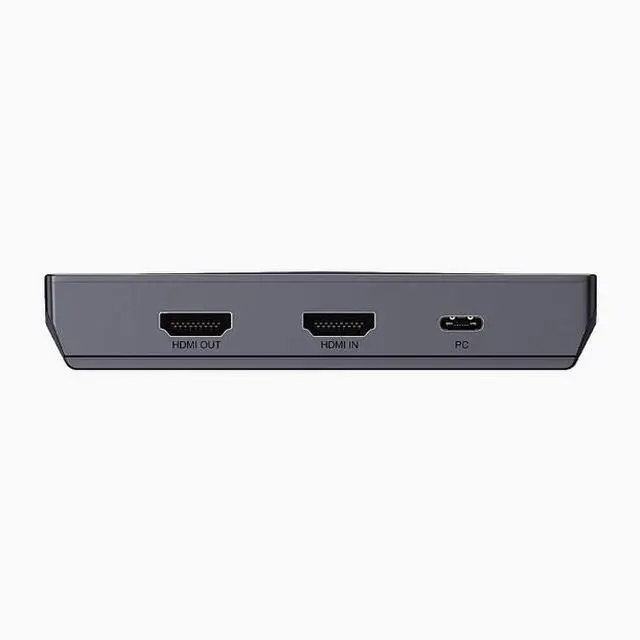

Video input: HDMI 1.4

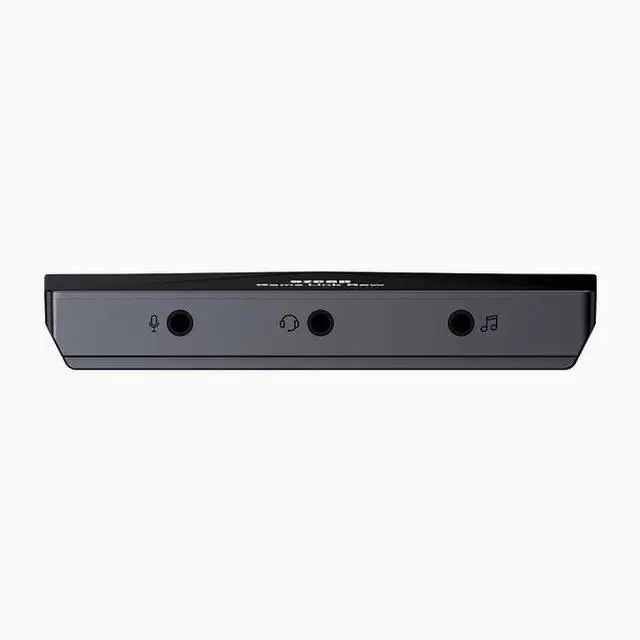

Audio input: HDMI, line input ( 3.5 mm TRS), microphone input ( 3.5 mm TRS), microphone
Kefeng input ( 3.5 mm TRRS)
Video output: HDMI 1.4
Audio output: HDMI, circuit output highest ( 3.5 mm
TRRS) ring out: 2160 p30, 1440 p60, 1080
p120 highest recorded: 1080p120, 2160p30, 1440p60
Supported resolutions: 2160p, 1440p, 1080p, 720p
Output video formats: YUY2, NV12, RGB
Recording resolution and maximum frame rate: 3840x2160-NV12/30; 2560x1440-NV12/60. YUY/50; 1920x1080-NV12/120, YUY/60, XRGB/30; 1280x720-NV12/60YUY/60, XRGB/60.

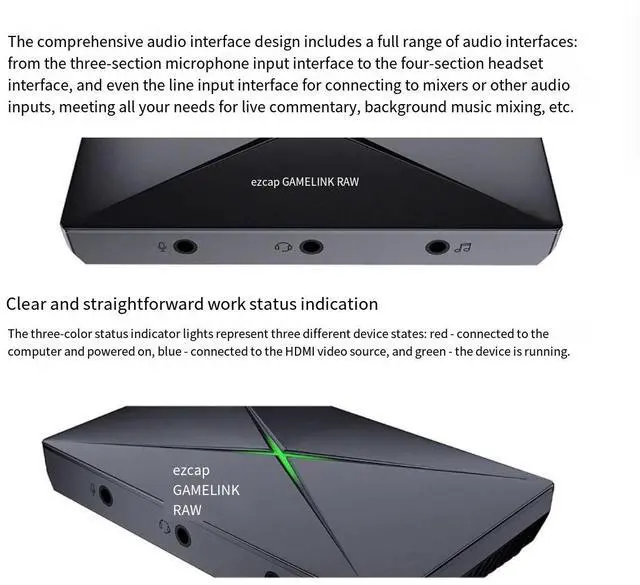

- Working indicator light: Red - Power, blue - Signal, green - Device operation
System configuration requirements: Windows 10x64
Laptop: 4Kp30 or 1080p120
Recording: Intel Core i7-7700HQ, NVIDIA? GeForce? GTX1050 Ti, 8 GB RAM. 1080p60
Recording: Intel Core i7-4810MQ, NVIDIA? GeForce? GTX 870M, 8GB RAM.
Desktop computer: 4Kp30 or 1080p120
Recording: Intel? Core? i5-6XXX/AMD, Ryzen? 3XXX, NVIDIA? GTX 1060/AMD RX 5700, 8GB RAM. 1080p60
Recording: Intel? Core? i7-3770, NVIDIA? GeForce? GTX 650/AMD Radeon? R7 250X, 4GB RAM.

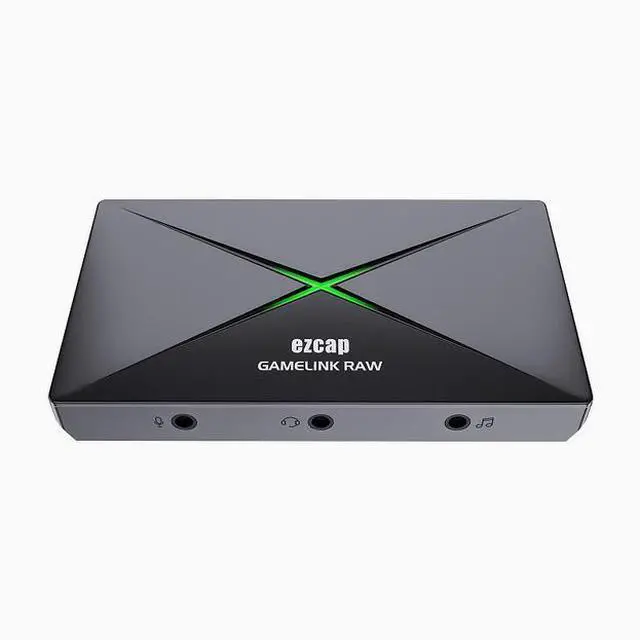

Packaging contents: ezcap333 Game Link Raw 4K Game Capture Live streaming box, USB-C to USB-A data cable, USB-A female to USB-C male adapter.
Usage Guide Size: 110x63x22 mm
