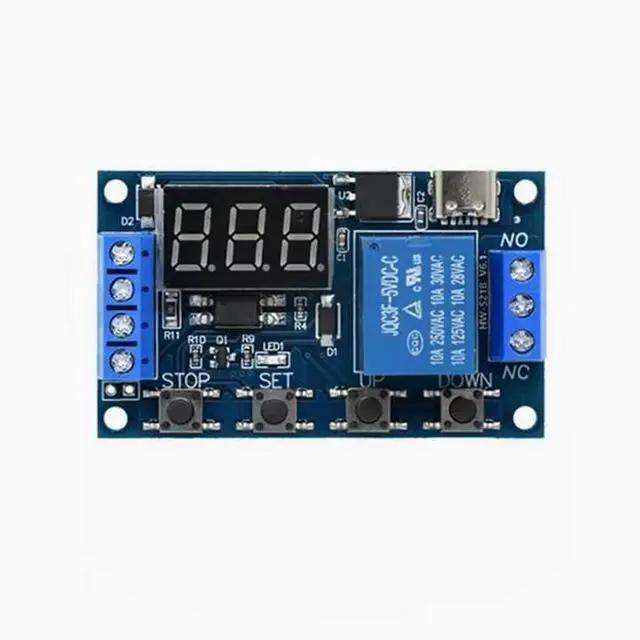

TYPE-C interface 1 relay module triggers off delay switch circuit switch cycle timing delay power module

Product parameters:
1: Working
voltage: 6--30V Support micro
USB 5.0V power supply 2: trigger
signal source: high level trigger ( 3.0V -24V) signal ground and system to improve the anti-interference ability of the system (can also short-circuit common ground)
3: Output
capacity: can control DC 30v5A or AC 220v5A within the equipment
4: Static current: 20mA Working current: 50mA
5: Service
life: more than 100, 000 times;
Operating temperature: -40-85 Size: 6.2 * 3.8 * 1.7 cm
6: With optocoupling isolation, enhance anti-interference ability, industrial level circuit board set parameters after the power off forever memory
Special attention: relay output is passive contact, no charged output, control the role of a line on and off.
