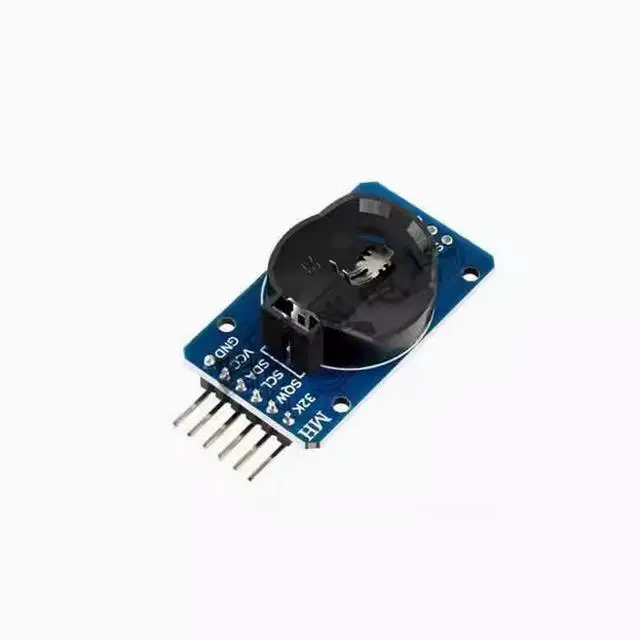

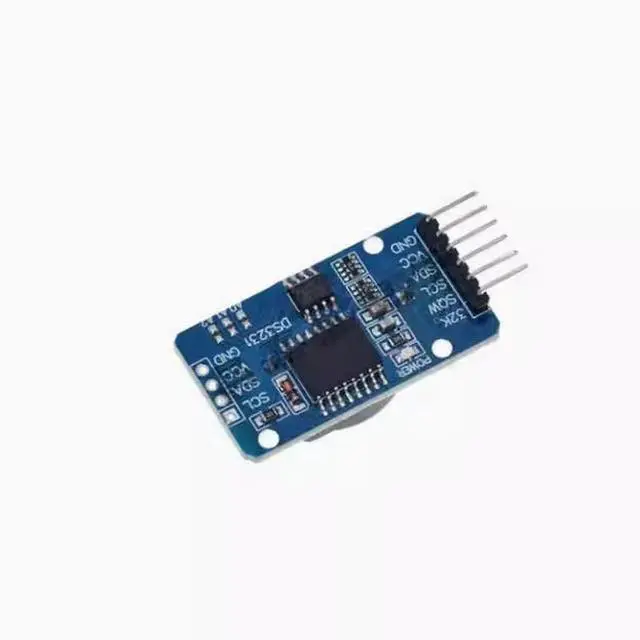

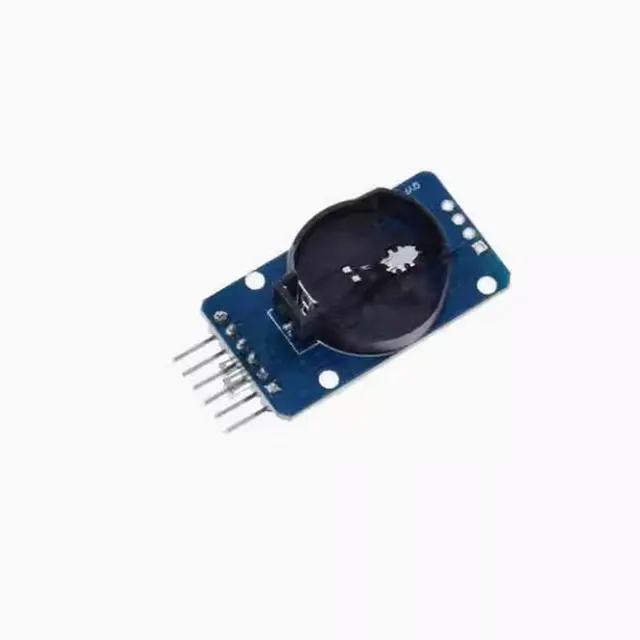

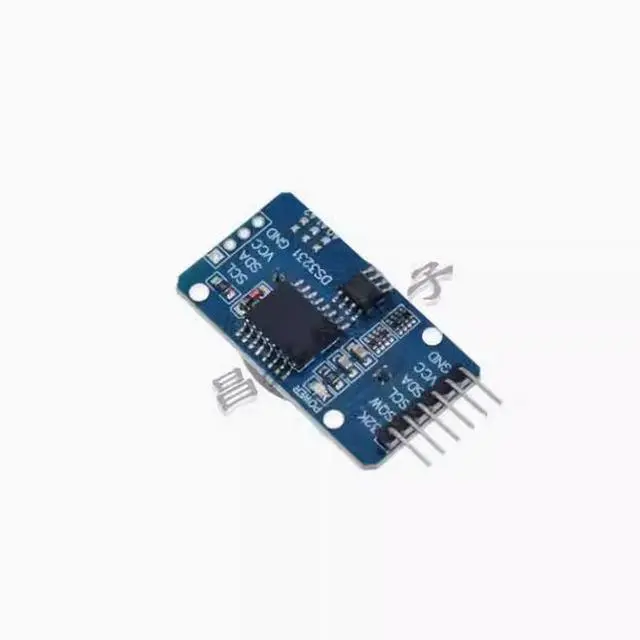

DS3231 Clock module memory RTC IIC/I2C interface Storage module real-time timing AT24C32 with battery
- The DS3231 is a low-cost, high-precision 120 Real time clock (RTC) with an integrated thermostatic oscillator (TCX0) and crystal. The device includes a timing that can be maintained when the battery input is disconnected from the main power supply. The integrated crystal oscillator improves the longevity of the device and reduces the number of components in the production line. The DS3231 is available in both commercial and industrial grade temperature ranges in a 16-pin 300mil S0 package.
- RTC stores second, minute, hour, day, date, month, and year information. For months with fewer than 31 days, the month end date will be automatically adjusted since the leap year correction is included. The working format of the clock can be 24 hours or 12 hours with /AM/PM indication. Provides two configurable calendar alarms and one configurable square wave output. Addresses and data are transmitted in serial via the 12C bidirectional bus. Precision, temperature-compensated voltage reference and co
+
+
Overview
Specs
Reviews
Module parameters:
Size: 38mm (L) *22mm (W) *14mm (H)
Working voltage: 3.3 - 5.5V
Clock chip: High precision clock chip
DS3231 Clock accuracy: 0-40 range, Accuracy 2ppm, annual error about 1 minute with 2 calendar alarm clock programmable square wave output real-time clock to produce seconds, minutes, hours of the week, date, month and year timing, And provide a valid period to 2100 leap year compensation chip internal temperature sensor, the accuracy is 3
Memory chip: AT24C32 (storage capacity 32K) 11C bus interface, high transmission speed 400KHz (operating voltage is 5V) can be connected to other IC devices, 24C32 address can be modified by short circuit A0/A1/A2, The default address is 0x57, and the CR2032 battery is installed to ensure that the clock runs normally after the system is powered off.
Size: 38mm (L) *22mm (W) *14mm (H)
Working voltage: 3.3 - 5.5V
Clock chip: High precision clock chip
DS3231 Clock accuracy: 0-40 range, Accuracy 2ppm, annual error about 1 minute with 2 calendar alarm clock programmable square wave output real-time clock to produce seconds, minutes, hours of the week, date, month and year timing, And provide a valid period to 2100 leap year compensation chip internal temperature sensor, the accuracy is 3
Memory chip: AT24C32 (storage capacity 32K) 11C bus interface, high transmission speed 400KHz (operating voltage is 5V) can be connected to other IC devices, 24C32 address can be modified by short circuit A0/A1/A2, The default address is 0x57, and the CR2032 battery is installed to ensure that the clock runs normally after the system is powered off.
