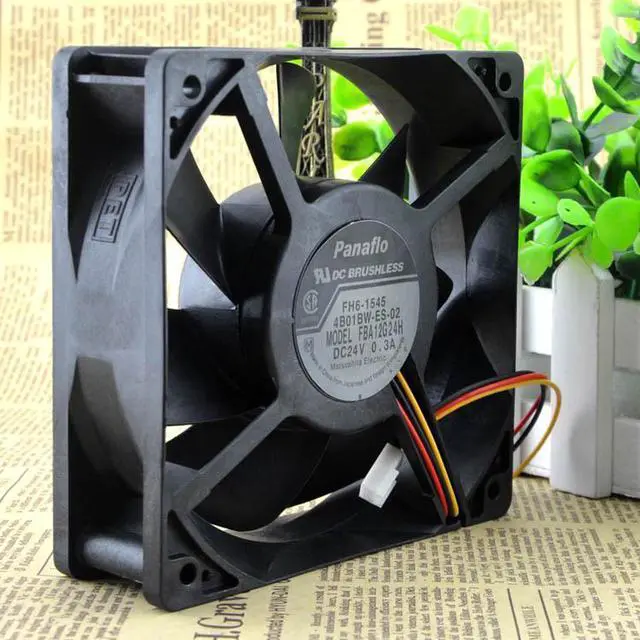

Main image of Original panaflo FBA12G24H 12CM 12038 DC24V 0.3A inverter fan 120X38 mm 3-wire 3-pin

Alt view image 2 of 3 - Original panaflo FBA12G24H 12CM 12038 DC24V 0.3A inverter fan 120X38 mm 3-wire 3-pin

Alt view image 3 of 3 - Original panaflo FBA12G24H 12CM 12038 DC24V 0.3A inverter fan 120X38 mm 3-wire 3-pin

Shop All Enfain Products | Visit Goldendisk Store

Original panaflo FBA12G24H 12CM 12038 DC24V 0.3A inverter fan 120X38 mm 3-wire 3-pin

Hydro Wave

Overview

Specs

Reviews

(panaflo) 12038 120*120*38 [rated voltage]: DC24V
[voltage range]: DC 16.0 - 28.0V [input power]: 0.30A
[rated speed]: 2500 r. p.
m [temperature range]: -10... 70 degrees
C [life expectancy]: L10 life expectancy 40000 hours at 25
C [bearing structure]: wear resistant hydraulic bearing [direction of rotation]: the wind is discharged from the bracket and rotates counterclockwise against the rotor.
[wiring mode]: + Red -
Black [maximum air volume]: 103.8CFM
[motor protection]: wrong level protection and locked rotor lock protection.
[minimum wind pressure]: 0.
45Pa [noise index]: 41.5 dB (A)
