Aomoproing DC-DC Buck Converter 9V-120V to 5V 3A Step Down Voltage Regulator, 15W Power Supply Module for USB Charger, Golf Cart, Solar Panel, LED Strip, Car, Arduino
- Ultra wide input voltage: 9V/12V/24V/36V/48V/72V/84V up to 120V, compatible with most vehicle and industrial power systems.
- Stable fixed output DC 5V 3A, sufficient current for routers, cameras, LED strips and small electronic devices.
- High conversion efficiency, low heat generation, supports long-term continuous stable operation.
- Built-in over-current, over-voltage, over-temperature and short circuit multi-protection, safe and reliable to use.
- Compact module design, easy installation and wiring, perfect for car, solar, monitoring and DIY power conversion.
+
+
Overview
Specs
Reviews
DC-DC step-down buck converter module accepts wide input voltage from DC 9V to 120V and delivers stable 5V output at up to 3A. It is designed for a wide range of applications where you need to step down higher DC voltage to a safe 5V level for charging or powering electronics.
This module features high conversion efficiency up to 96%, which means less energy waste and less heat generation. It delivers stable 5V output with low ripple, ensuring safe and reliable power for your sensitive devices such as smartphones, tablets, Raspberry Pi, Arduino boards, LED strips and USB chargers.

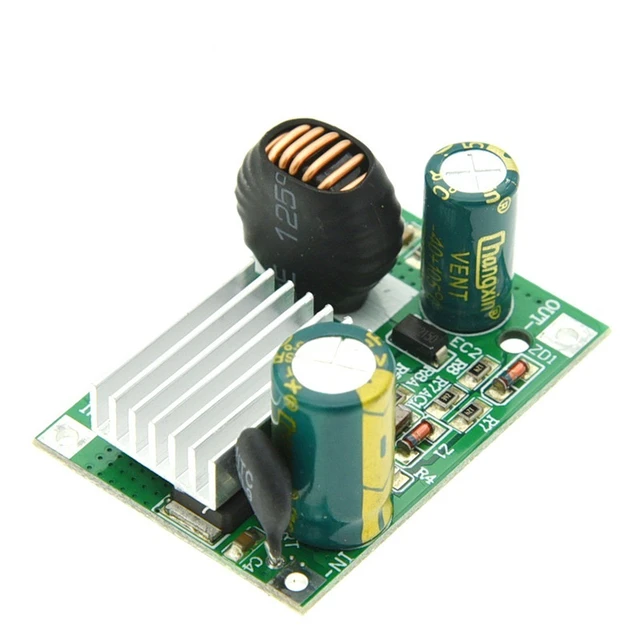

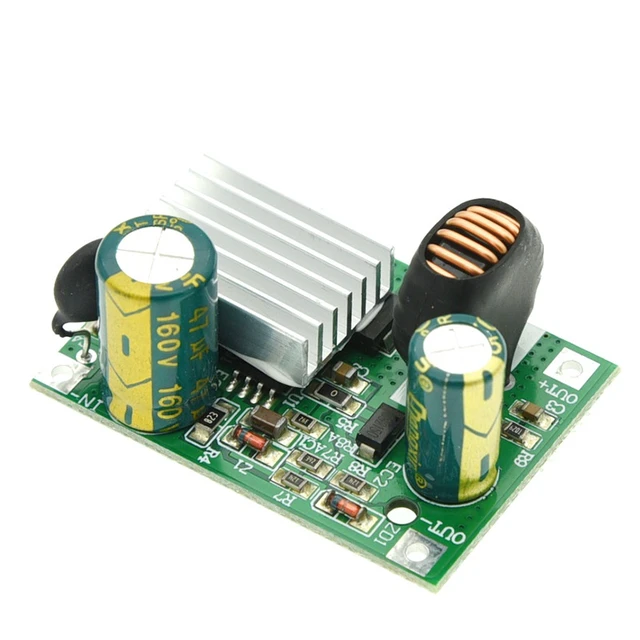

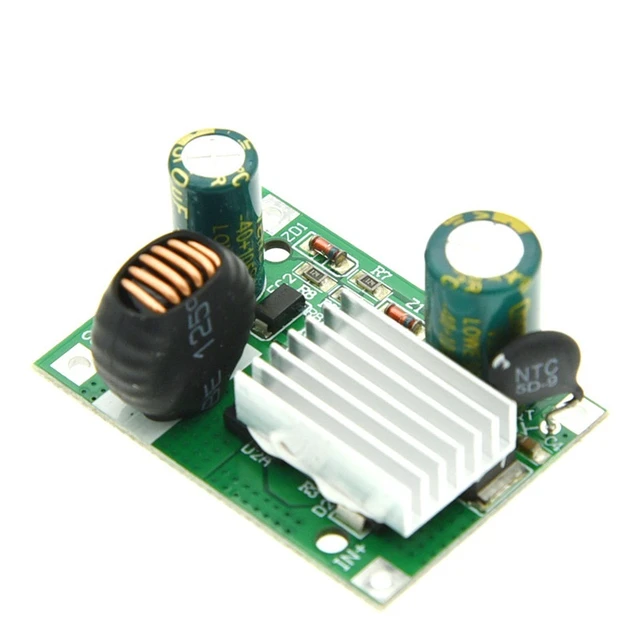

The built-in aluminum heat sink provides effective cooling during continuous operation. Protection circuits safeguard your devices against over-current, over-voltage, over-temperature and short-circuit conditions. The PCB clearly marks IN+/IN- and OUT+/OUT- for easy wiring with screw terminals.
Typical applications:
- USB phone charger for car, truck, golf cart
- Solar panel 5V charging system
- LED strip lighting power supply
- Arduino / Raspberry Pi DIY projects
- Automotive 5V electronics
- Industrial sensor power supply
- Camera and surveillance system
Specifications:
- Input Voltage: DC 9V - 120V
- Output Voltage: DC 5V (fixed)
- Output Current: Max 3A
- Output Power: Max 15W
- Conversion Efficiency: Up to 96%
- Cooling: Aluminum heat sink included
- Protection: Over-current, over-voltage, over-temperature, short-circuit
- Mounting: Screw terminals
Package Includes: 1 x DC-DC Buck Converter Module.
