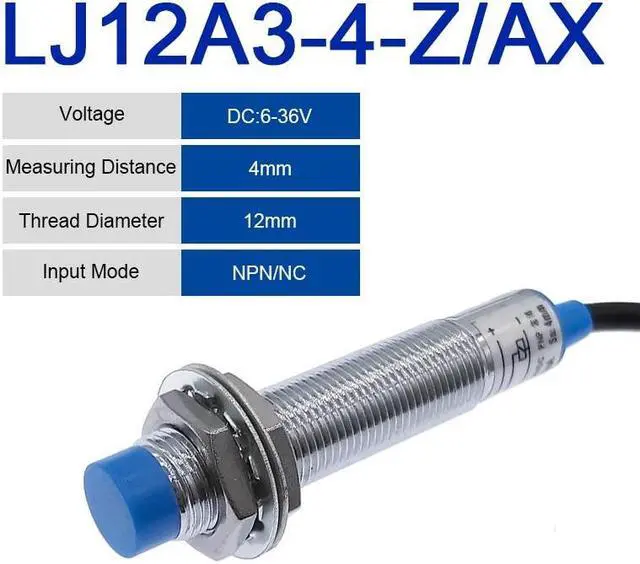

LJ12A3-4 BX BY AX AY inductive proximity switch lj12a3-4-z/bx npn lj12a3-4-z/ax pnp sensor NO NC DC5~36V 4mm detection distance(LJ12A3-4-Z-AX)

LJ12A3-4-Z/BY: PNP NO 3-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/AY: PNP NC 3-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/BX: NPN NO 3-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/AX: NPN NC 3-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/CX: NPN NO+NC 4-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/CY: PNP NO+NC 4-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/EX: NO 2-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-Z/DX: NC 2-Line DC type 12mm diameter; 4mm detection distance
LJ12A3-4-J/EZ: NO 2-Line AC type 12mm diameter; 4mm detection distance
LJ12A3-4-J/DZ: NC 2-Line AC type 12mm diameter; 4mm detection distance
[Main Parameter]
Detection distance: 4mm 10%
Set distance: 0~ 3.6 mm
Current: 5V 360mA, 12V 200mA, 24V 96mA, maximum instantaneous current 2A
Delay distance: 10% below of the detection distance
Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Stand detection object: Iron 15*15*1mm
Response frequency: DC: 0.5 kHz
Supply voltage: DC type: DC12V DC24V DC36V(5~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Meterial: (Housing: Nickel plated brass) (Detection surface: ABS)
Protection influence: IP67 (IEC specification)
This product can be applied to control relays, counters, PLC, etc.!
