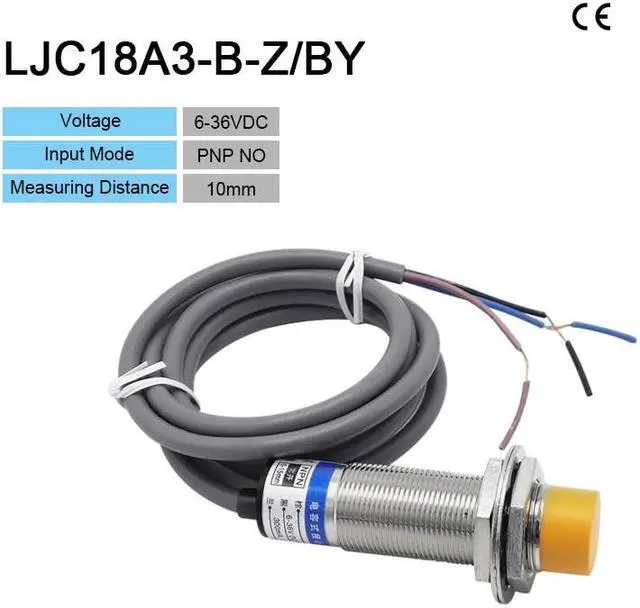

LJC18A3-B-Z/BX Approach Sensor Cylindrical Capacitive Proximity Switch 10mm Detecting distance NPN/PNP NO/NC DC6-36V(LJC18A3 B Z BY)

LJC18A3-B-Z/BY: PNP Normally Open 3-Line type 18mm diameter; 10mm detection distance
LJC18A3-B-Z/AY: PNP Normally Close 3-Line type 18mm diameter; 10mm detection distance
LJC18A3-B-Z/BX: NPN Normally Open 3-Line type 18mm diameter; 10mm detection distance
LJC18A3-B-Z/AX: NPN Normally Close 3-Line type 18mm diameter; 10mm detection distance
[Main Parameter]
Detection distance: 10mm 10%
Set distance: 0~8mm
Delay distance: 10% below of the detection distance
Detection object: Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Response frequency: DC: 0.5 kHz
Supply voltage: DC type: DC12V DC24V DC36V(6~36V)impulse(p-p)10% below
Withstand voltage: AC1000V 50/60Hz 1min between charging part and housing
Meterial: (Housing: Nickel plated brass) (Detection surface: ABS)
Protection influence: IP67 (IEC specification)
This product can be applied to control relays, counters, PLC, etc.!
