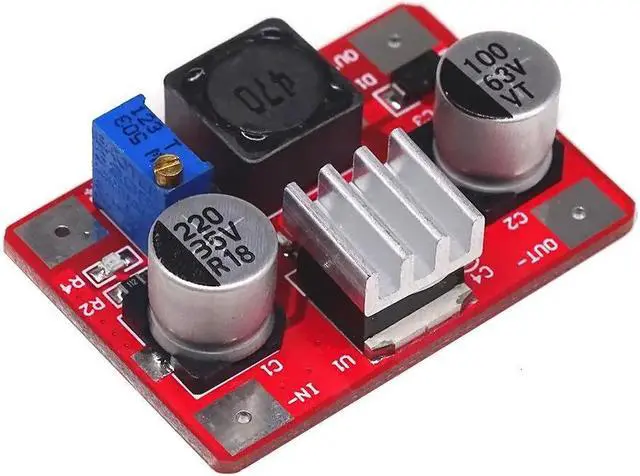

DC Boost LM2577 Converter Step up Module 3.5-35V to 5-56V 3A MAX with Light
- DC Boost LM2577 Converter Step up Module 3.5-35V to 5-56V 3A MAX with Light
+
+
Overview
Specs
Reviews
DC Boost LM2577 Converter Step up Module 3.5 -35V to 5-56V 3A MAX with Light
note:
When you test the output voltage if the output voltage is not higher than the input voltage, adjust the potentiometer clockwise, the output voltage will rise. Remember not to counterclockwise to adjust the use of antihypertensive modules trying to do, must ensure that the output voltage is set higher than the input voltage, so as not to damage the module!
IN + input positive
IN - input negative
OUT + output positive
OUT-output negative
index:
Input voltage range: 3.5V -35V (must ensure that set the output voltage is higher than the input voltage)
Output voltage range: 5.0V -56V
Enter the maximum current: 3A (according to the power conservation to calculate the rated current output current
Uin * Iin * Efficiency = Uout * Iout)
Input continuous operating current: 2A (ventilation cooling conditions good output voltage and input voltage ratio can not be greater than 3)
Dimensions: length * width * height 4.3 cm * 3.0 cm * 1.2 cm
note:
When you test the output voltage if the output voltage is not higher than the input voltage, adjust the potentiometer clockwise, the output voltage will rise. Remember not to counterclockwise to adjust the use of antihypertensive modules trying to do, must ensure that the output voltage is set higher than the input voltage, so as not to damage the module!
IN + input positive
IN - input negative
OUT + output positive
OUT-output negative
index:
Input voltage range: 3.5V -35V (must ensure that set the output voltage is higher than the input voltage)
Output voltage range: 5.0V -56V
Enter the maximum current: 3A (according to the power conservation to calculate the rated current output current
Uin * Iin * Efficiency = Uout * Iout)
Input continuous operating current: 2A (ventilation cooling conditions good output voltage and input voltage ratio can not be greater than 3)
Dimensions: length * width * height 4.3 cm * 3.0 cm * 1.2 cm
