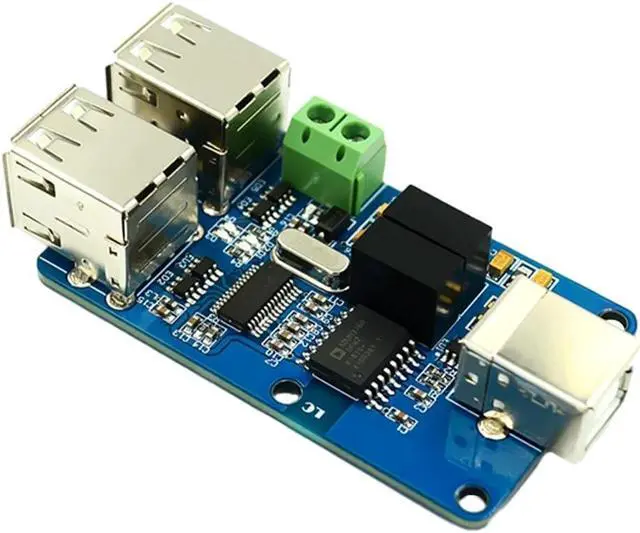

ADUM3160 USB To USB Audio Signal Isolator 1500V 4 Channel USB To USB Voltage Isolator Module 1W Support USB Control Transmission

ADUM3160 Module Coupling Protection Board 1500V 4 Channel USB To USB Voltage Isolator Module 1W Support USB Control Transmission
Features:
1.
Multi-Channel Design: With four independent isolation channels, this USB isolator module can simultaneously isolate and handle multiple USB signals or devices, providing enhanced functionality and versatility.
2.
Data Integrity: The USB isolation board ensures accurate, stable, and uninterrupted transmission of USB signals, supporting high-speed USB 2.0 or even higher data transfer rates. Your data remains intact and reliable throughout.
3.
Safety Protection: Equipped with various protection features such as overcurrent, overvoltage, and transient voltage protection, this USB to USB isolator ensures the safety and longevity of your USB devices by safeguarding against potential electrical disturbances.
4.
Simplified Design: Designed to be compact and integrated, this USB to USB audio signal isolator simplifies system design and layout, making it easier for you to incorporate it into your setup without any hassles.
5.
Industrial-Grade Reliability: Built with industrial-grade reliability in mind, this USB to USB voltage isolator module is engineered to operate flawlessly in harsh environmental conditions. Count on its robust performance to keep your computer's USB ports and motherboard protected from external power surges and strong interference.
Specification:
Origin: Mainland China
Type: Module
Condition: New

1. Compatible with USB 2.0

2.
Power module isolation voltage: 1500V
3.
ADUM3160 isolation voltage: 2500V

4. Output power supply B0505S power 1W

5.
Power supply: from the computer host USB port

6.
Use of the environment: -40 to 85

7. Support USB control transmission, batch transmission,

8. Support USB low-speed 1.5M bps and full-speed 12Mbps.

9. Interrupt transmission, synchronous / isochronous transmission

10. Does not support pure high-speed devices
Product size: 67.00 x 37.00 x 10.00 mm/ 2.64 x 1.46 x 0.39 inch
USB four-way isolation module using ADI's proprietary iCoupler technology, compatible with USB 2.0, providing fully isolated 1.5M bps and 12Mbps data rate, isolation of 1500V voltage, no external power supply, no driver. It makes the USB port free from the interference of strong external power supply and signal, and protects the USB port of the computer and the computer motherboard.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1*USB Isolator Module
