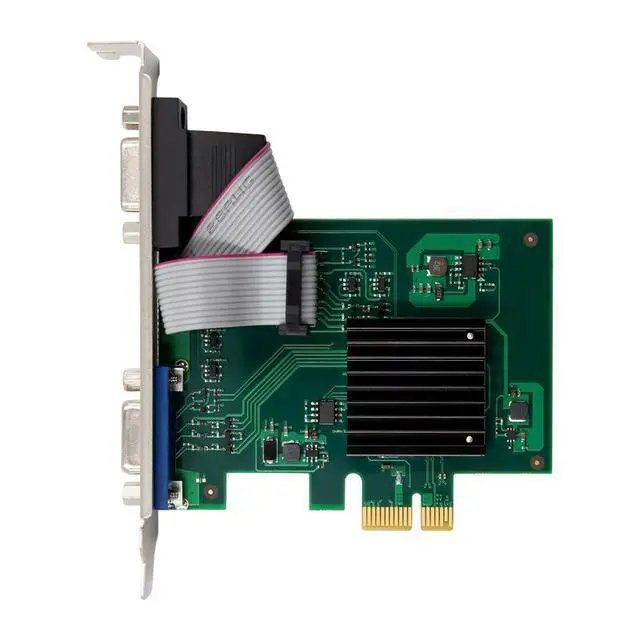

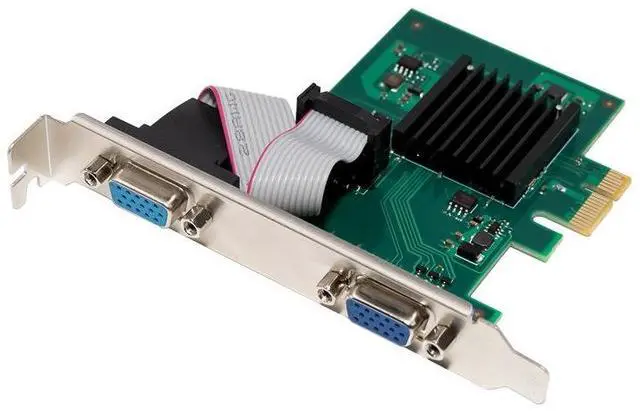

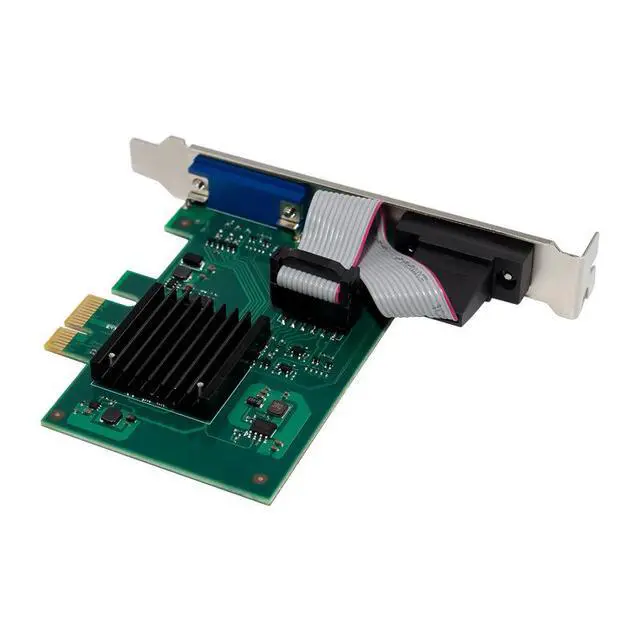

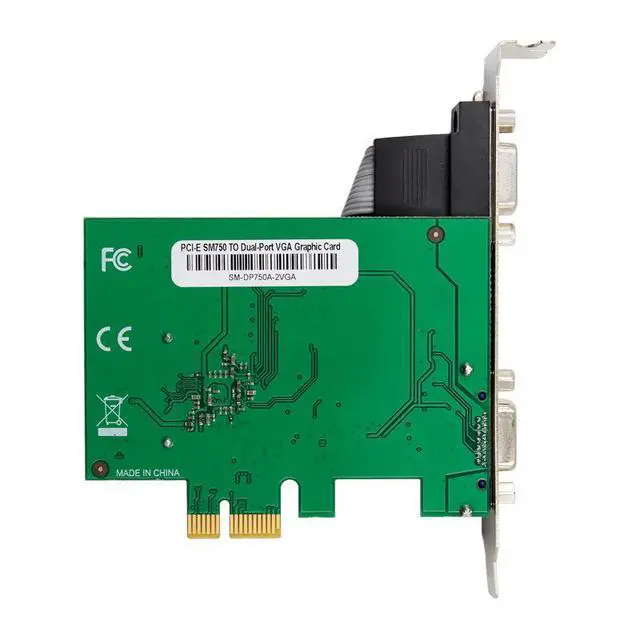

PCIe x1 Dual VGA Graphics Card SM750, 2D GPU, 16MB-64MB DDR, Dual 300MHz DAC, 1920x1440, Wide Temp (-40°C to +85°C), for Industrial & Embedded Systems
- Dual Independent VGA Outputs: Features two independent VGA outputs with dual 300MHz DACs, supporting independent resolutions and refresh rates up to 1920 x 1440 for dual-display industrial and embedded applications.
- SM750 2D Graphics Engine: Powered by the SM750 128-bit 2D graphics accelerator, delivering hardware-accelerated BitBLT, ROP3, transparent Blt, pattern BLT, color expansion, and line drawing for efficient GUI performance.
- Flexible Memory Configuration: Onboard 16MB DDR memory with optional external expansion up to 64MB DDR (64-bit interface), ensuring smooth graphics performance for embedded and industrial applications.
- Wide Platform & OS Support: Compatible with x86, ARM, MIPS, PPC, and Loongson CPU platforms; supports Windows (XP/7/2003/2008) and Linux (Ubuntu, CentOS, Debian) operating systems.
- Industrial-Grade Reliability: Ultra-low power consumption (<1.5W) with wide operating temperature range of -40°C to +85°C, making it ideal for fanless industrial PCs, factory automation, medical devices, and outdoor embedded systems.
+
+
Overview
Specs
Reviews
Add reliable dual-display 2D graphics capability to your industrial or embedded system with this PCIe x1 Dual VGA Graphics Card. Powered by the SM750 2D graphics engine, this low-profile adapter provides two independent VGA outputs with resolutions up to 1920 x 1440, making it the perfect solution for industrial control panels, HMI (Human-Machine Interface) displays, digital signage, medical equipment, and embedded applications.
SM750 2D Graphics Engine
The SM750 is a purpose-built 2D graphics controller for embedded and industrial applications, offering:
- 128-bit 2D graphics accelerator with hardware BitBLT, ROP3, transparent Blt, pattern BLT, and line drawing
- Hardware screen rotation (90°, 180°, 270°) for flexible display orientation
- YUV to RGB conversion (16/32-bit) for video playback optimization
Dual Independent VGA Outputs
The card features dual 300MHz DACs supporting:
- Independent resolutions and refresh rates for each display
- Maximum resolution: 1920 x 1440 per output
- Dual 18-bit DVO interfaces for TMDS/LVDS conversion (with external adapters)
- Ideal for dual-monitor industrial control stations and multi-display kiosks
