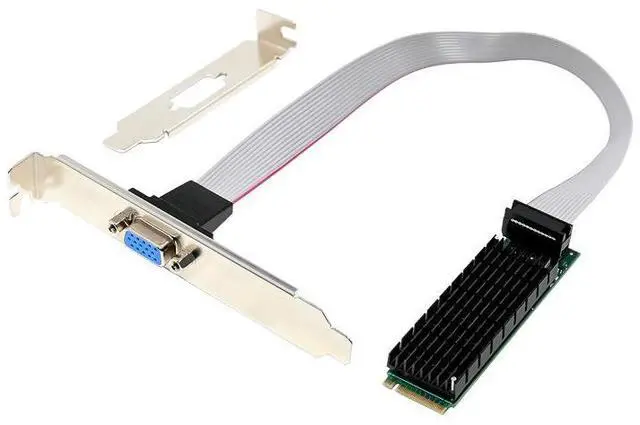

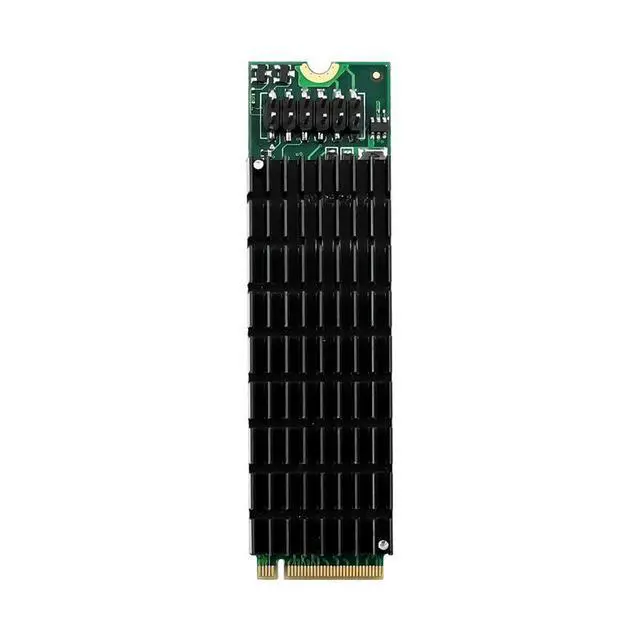

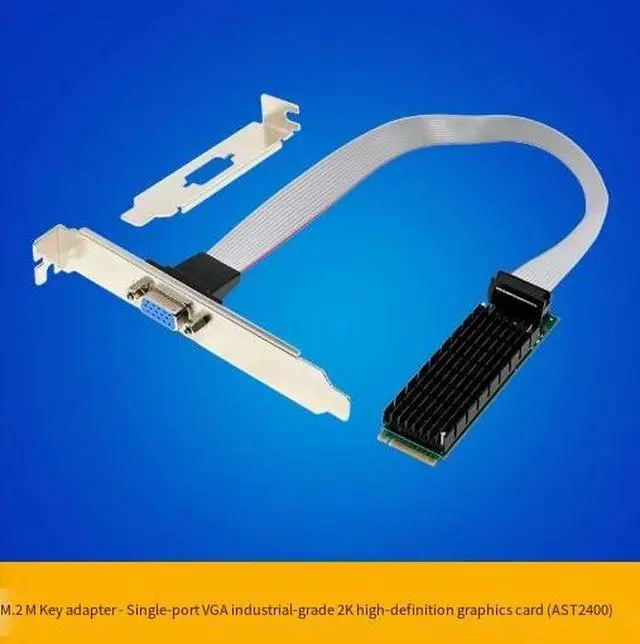

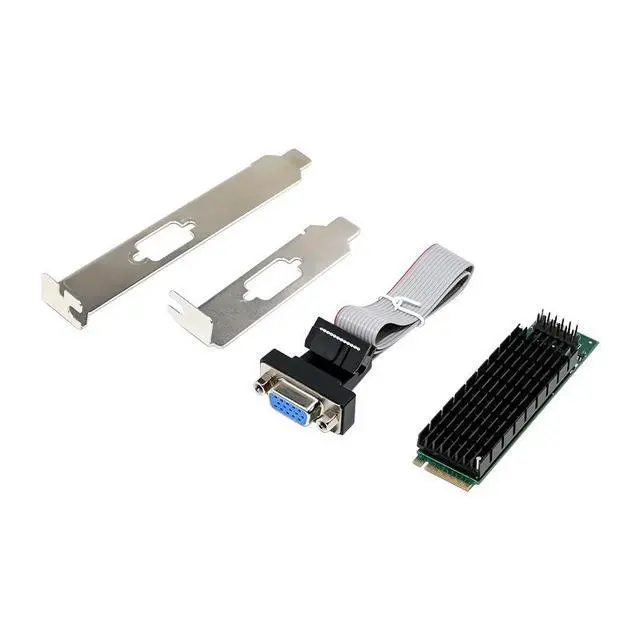

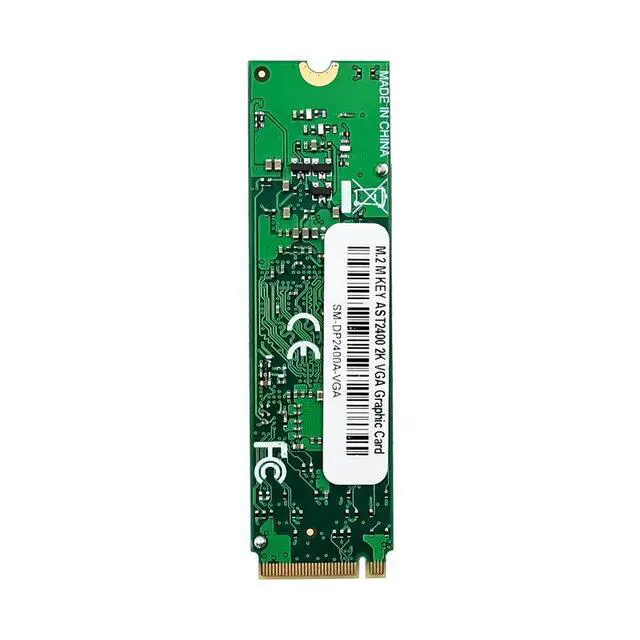

    M.2 M Key to VGA Graphics Card AST2400, 2K Support (1920x1200), PCIe x1, Video-over-IP, Low Power (<2.7W), for Server, Industrial PC & Embedded Systems

    • M.2 M Key to VGA Output: Converts an M.2 M Key PCIe slot into a standard VGA graphics output, providing display connectivity for servers, industrial PCs, and embedded systems without native video output.
    • AST2400 Graphics Controller: Powered by the ASPEED AST2400 graphics controller, featuring integrated 2D graphics processing, hardware cursor support, and video compression for remote management applications.
    • 2K High-Resolution Support: Delivers maximum display resolution up to 1920x1200 @ 60Hz with 32-bit color depth, supporting WXGA, WSXGA+, and Full HD (1080p) resolutions for clear, detailed visuals.
    • Video-over-IP & Remote Management: Supports Video-over-IP with YUV444/YUV420 video compression, enabling remote KVM (Keyboard-Video-Mouse) functionality for server management and remote diagnostics.
    • Industrial-Grade Reliability: Ultra-low power consumption (<2.7W) with wide operating temperature range of -30°C to 80°C, making it ideal for fanless industrial systems, embedded applications, and 24/7 server environments.
    +
    +
    Overview
    Specs
    Reviews

    Add reliable VGA display capability to your server, industrial PC, or embedded system with this M.2 M Key to VGA Graphics Card. Powered by the ASPEED AST2400 graphics controller, this compact adapter converts an M.2 M Key PCIe slot into a standard VGA output, providing essential display functionality for systems without integrated graphics or requiring dedicated management video.

    AST2400 Graphics Engine

    The AST2400 is a purpose-built graphics controller for server and industrial applications, offering:

    1. Fully IBM VGA-compatible 2D graphics engine
    2. Integrated 64 x 64 hardware cursor with monochrome and color formats
    3. Hardware video compression for efficient remote display
    4. PCI Express x1 interface (2.5Gbps) with PCI Power Management support

    High-Resolution Display Support

    Delivers crisp, clear visuals with support for:

    1. 1920 x 1200 @ 60Hz maximum resolution with 32-bit color depth
    2. Full HD (1920 x 1080p) at 60Hz
    3. WXGA (1280 x 800), WSXGA+ (1680 x 1050), and other standard resolutions

    Video-over-IP for Remote Management

    The AST2400 includes advanced remote management capabilities:

    1. Video-over-IP with YUV444/YUV420 video compression
    2. 24-bit video compression quality for clear remote viewing
    3. Integrated with BMC (Baseboard Management Controller) functionality for server management applications
