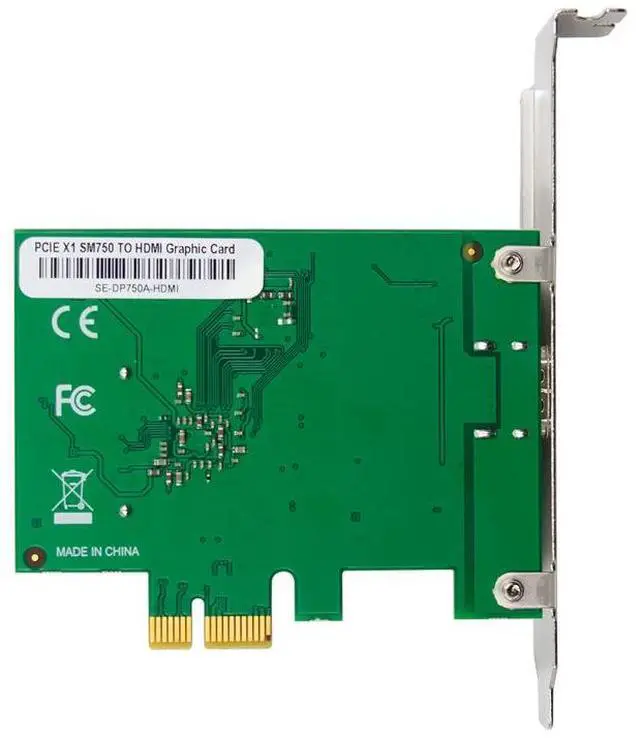

PCIe x1 Single Port HDMI Graphics Card SM750, 2D Graphics Engine, 16MB-64MB DDR, Supports 1920x1440, Low Power (<1.5W), Wide Temperature (-40°C to +85°C), for Embedded & Industrial Applications
- Embedded 2D Graphics Solution: Powered by SM750 2D graphics engine, providing reliable video output for industrial control panels, kiosks, digital signage, and embedded systems requiring basic display functionality.
- PCIe x1 Interface: Utilizes PCI Express x1 interface for broad compatibility with x86, ARM, MIPS, PPC, and Loongson platforms, making it ideal for embedded and industrial motherboards with limited expansion slots.
- Flexible Memory Configuration: Features onboard 16MB DDR memory with support for external expansion up to 64MB DDR, ensuring smooth 2D graphics performance for embedded applications.
- Dual Display Output Capability: Supports dual 300MHz DACs and dual 18-bit DVO interfaces, enabling independent resolutions and refresh rates for two displays simultaneously (HDMI output with appropriate adapter).
- Wide Temperature Range & Low Power: Designed for harsh environments with operating temperature from -40°C to +85°C and ultra-low power consumption (<1.5W), perfect for fanless industrial systems and outdoor deployments.
+
+
Overview
Specs
Reviews
Add reliable 2D graphics capability to your embedded or industrial system with this PCIe x1 Single Port HDMI Graphics Card. Powered by the SM750 2D graphics engine, this low-profile adapter provides high-quality video output for applications such as industrial control panels, HMI (Human-Machine Interface) displays, kiosks, digital signage, and medical equipment.
Optimized for Embedded & Industrial Applications
The SM750 graphics controller is specifically designed for embedded environments where reliability, low power consumption, and wide temperature operation are critical. With support for x86, ARM, MIPS, PPC, and Loongson CPU platforms, this card integrates seamlessly into a variety of industrial motherboards and single-board computers.
Flexible Display Resolution
Delivers crisp 2D graphics with:
- Maximum resolution up to 1920 x 1440
- Dual 300MHz DACs for high-quality analog output
- Dual 18-bit DVO interfaces for digital output (TMDS/LVDS conversion)
- Support for independent resolutions and refresh rates across two displays
Memory Configurations
The card supports flexible memory options:
- 16MB integrated DDR (onboard)
- External expansion up to 64MB DDR for enhanced performance
2D Graphics Acceleration
The 128-bit 2D graphics engine provides:
- ROP3, BitBLT, transparent Blt, pattern BLT, color expansion, and line drawing
- YUV to RGB conversion (16/32-bit)
- Hardware cursor support with 7 display layers
- Video capture port supporting ITU601 and ITU656 standards
