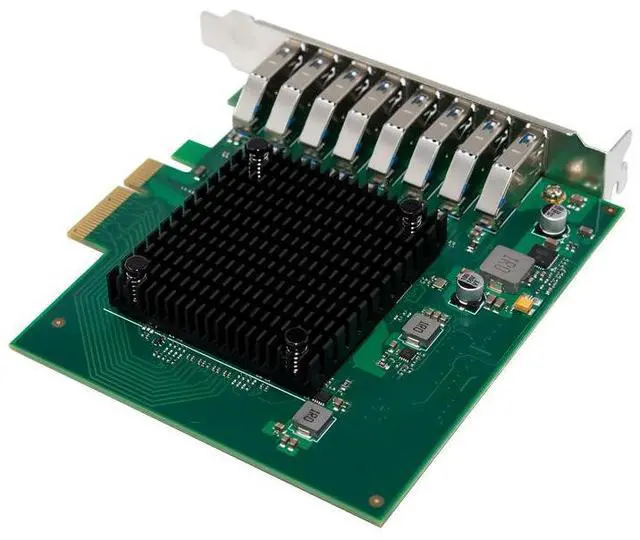

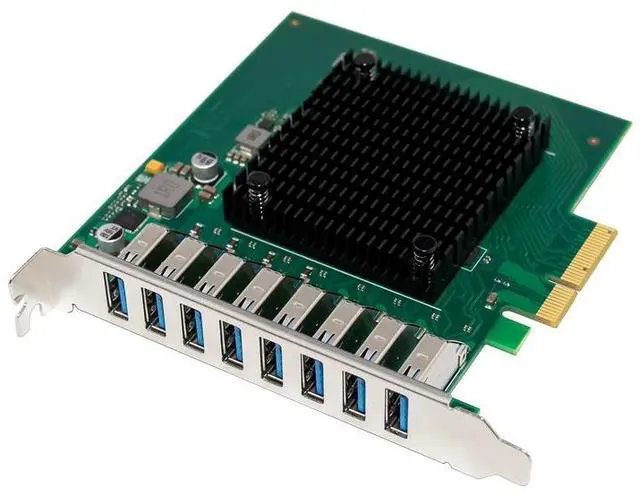

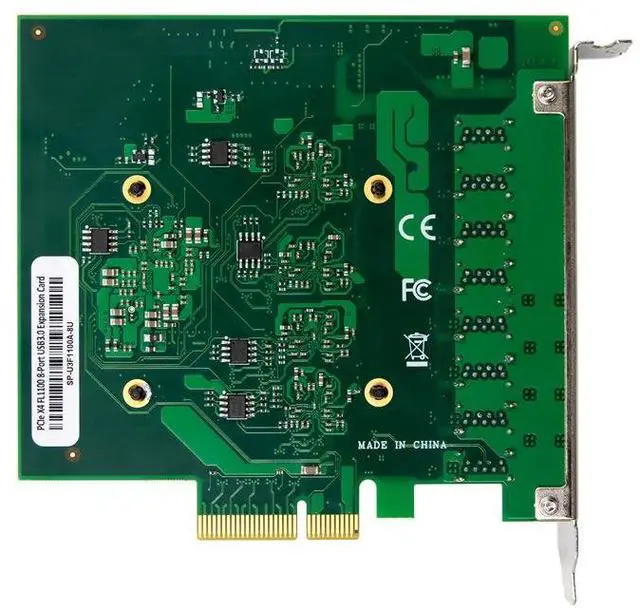

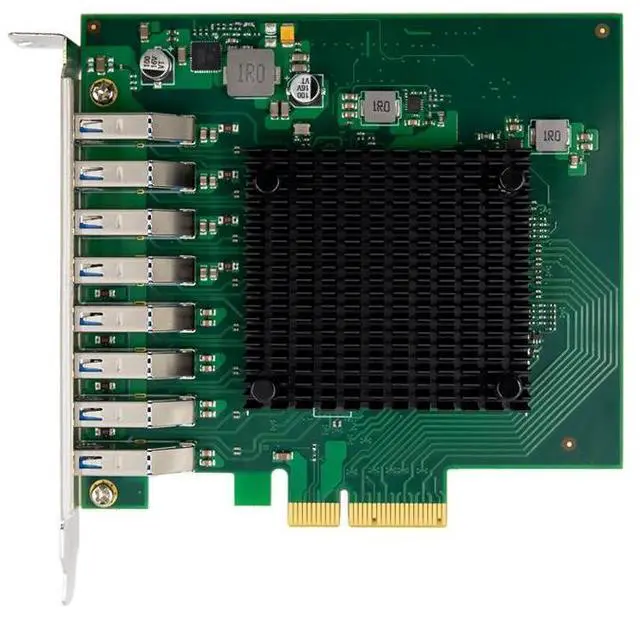

PCIe 3.0 to 8-Port USB 3.2 Gen 1 Expansion Card Fresco Logic FL1100 + PI7C9X2G608P, 40Gbps Total Bandwidth, Self-Powered, 5V/900mA per Port, for Desktop & Server

Maximize your system's USB connectivity with this PCIe 3.0 to 8-Port USB 3.2 Gen 1 Expansion Card. Designed for desktop workstations, servers, and industrial systems, this expansion card adds eight high-speed USB 3.2 Type-A ports from a single PCIe x4 slot, providing the connectivity needed for multiple peripherals, storage devices, and USB hubs.

High-Performance USB 3.2 Gen 1 Connectivity

Each of the eight ports supports USB 3.2 Gen 1 (SuperSpeed USB) with data transfer rates up to 5Gbps10x faster than USB 2.0. With 40Gbps total aggregate bandwidth, this card delivers the throughput required for simultaneous operation of high-speed devices such as external SSDs, video capture devices, and multi-port hubs.

Dual-Chip Architecture for Reliable Performance

The card combines two proven components:

1. Fresco Logic FL1100: High-performance USB 3.2 host controller providing stable, low-latency USB connectivity
2. PI7C9X2G608P: PCIe packet switch enabling efficient lane distribution across all eight ports

This dual-chip design ensures consistent performance even under heavy multi-device workloads.

Self-Powered with Ample Per-Port Power

The self-powered design draws power directly from the PCIe slot, delivering up to 5V/900mA per USB port. This provides sufficient power for most USB devices without requiring an external power adapter, simplifying installation and reducing cable clutter.
