Desktop PCIE-1394 card DV HDV high-definition video capture card FireWire card PCIE 1X interface
Limited time offer, ends 04/23 By Torpedo Nova

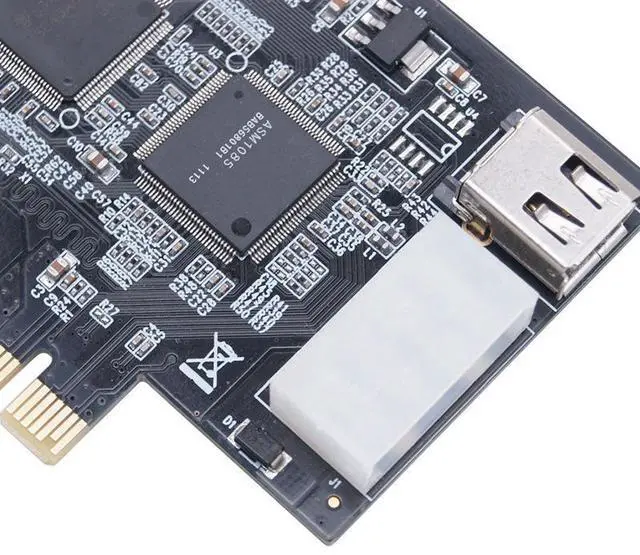

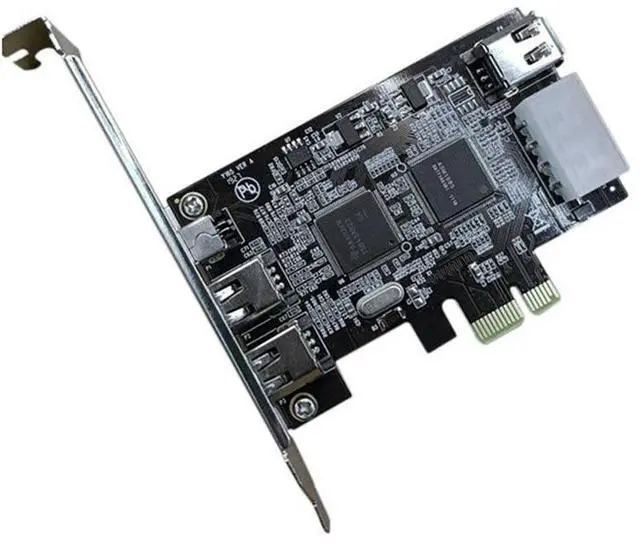

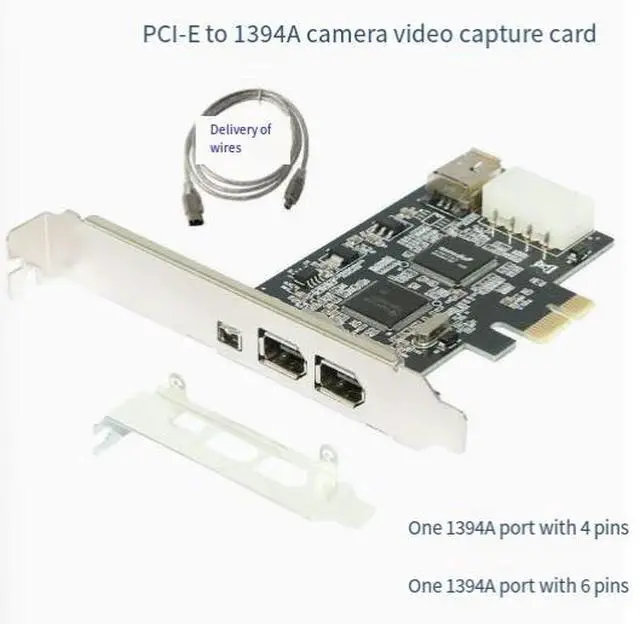

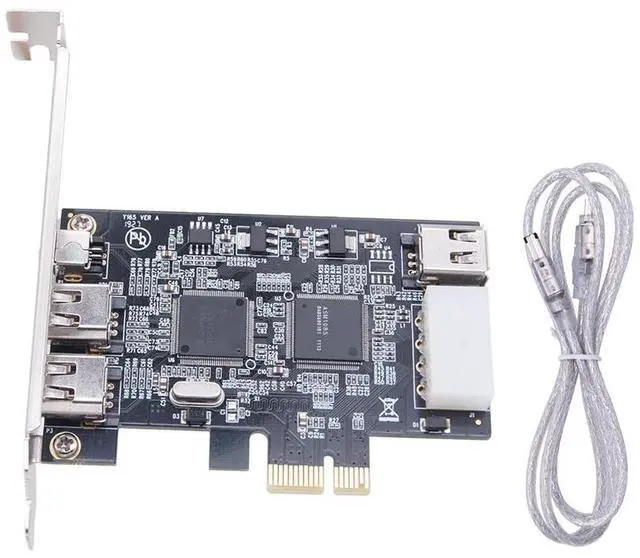

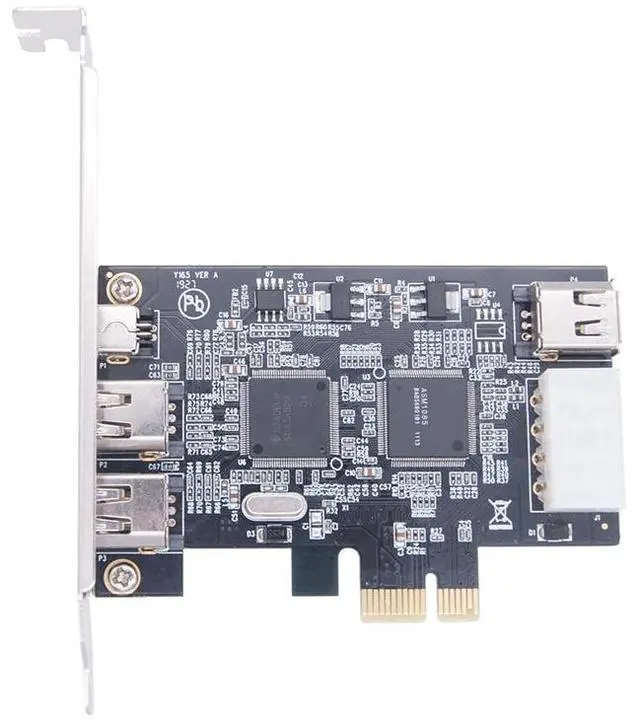

- This card is a black Taiwan VIA/ASM1083 dual-chip version, featuring high speed and stability. It supports DV and HDV, and can handle the maximum resolution of 1440*1080 for high-definition cameras. It has an external 3 1394A 6-pin ports and a 1394A 4-pin port.
- Note: It does not support PCI interface.
- Included: 1 1394 adapter card x1
- 1 connection cable x1
- Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5Gb/s
- Complies with PCI-Express Revision 1.0a
- Supports IEEE P1394b-2002 standard
- Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft
- Supports data transmission rates of 800/400/200/100Mbps
- Plug-and-play, supports hot swapping
- Backward compatible with 1394a standard
- Complies with IEEE1394a-2000 and 1394-1995 standards
- Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard
- Supports bidirectional communication 1394b-2002 standard (800Mbps data transmission rate)
- Supported operating systems: Windows 8/7/Vista/XP/2000/ME/98SE/Server 2003-2008 32/64-bit, Mac and other operating systems
+
+
Overview
Specs
Reviews
This card is a black Taiwan VIA/ASM1083 dual-chip version, featuring high speed and stability. It supports DV and HDV, and can handle the maximum resolution of 1440*1080 for high-definition cameras. It has an external 3 1394A 6-pin ports and a 1394A 4-pin port.
Note: It does not support PCI interface.
Included: 1 1394 adapter card x1
1 connection cable x1
Full-duplex 1-Lane (x1) PCI-Express bus, with a bus bandwidth of up to 2.5Gb/s
Complies with PCI-Express Revision 1.0a
Supports IEEE P1394b-2002 standard
Complies with 1394 OHCI protocol Revision 1.1 and 1.2 draft
Supports data transmission rates of 800/400/200/100Mbps
Plug-and-play, supports hot swapping
Backward compatible with 1394a standard
Complies with IEEE1394a-2000 and 1394-1995 standards
Supports bidirectional transmission (FirewireTM, iLINKTM and SB1394TM) IEEE 1394 standard
Supports bidirectional communication 1394b-2002 standard (800Mbps data transmission rate)
Supported operating systems: Windows 8/7/Vista/XP/2000/ME/98SE/Server 2003-2008 32/64-bit, Mac and other operating systems
