Main image of USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 2 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 3 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 4 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 5 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 6 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Alt view image 7 of 7 - USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

Shop All WISDUM Products | Visit Torpedo Nova Store

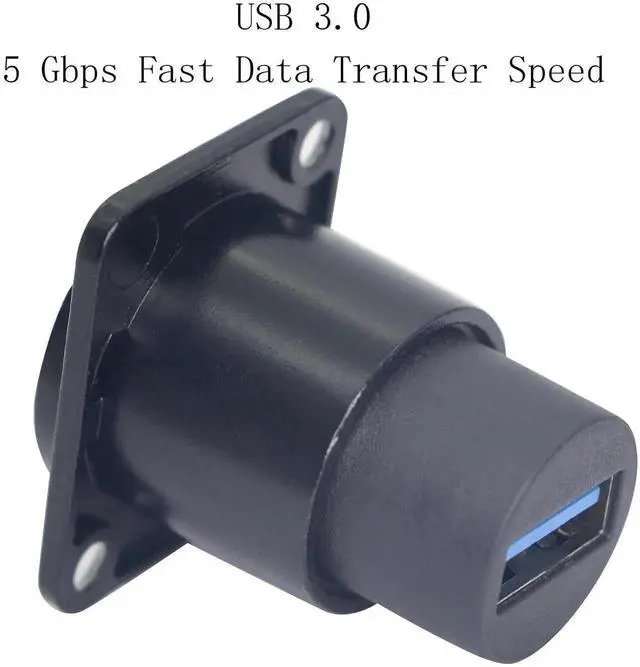

USB 3.0 D Panel Mount Solderless Connector, USB 3.0 Female to Female Coupler Socket Panel Mount Pass Through Adapter Super Speed Up to 5Gbps Audio Video etc Equipment,Black

[USB3.0 Connector]:USB 3.0 panel mount socket provides a more stable and super speed transmission environment for data in the electronic information environment.

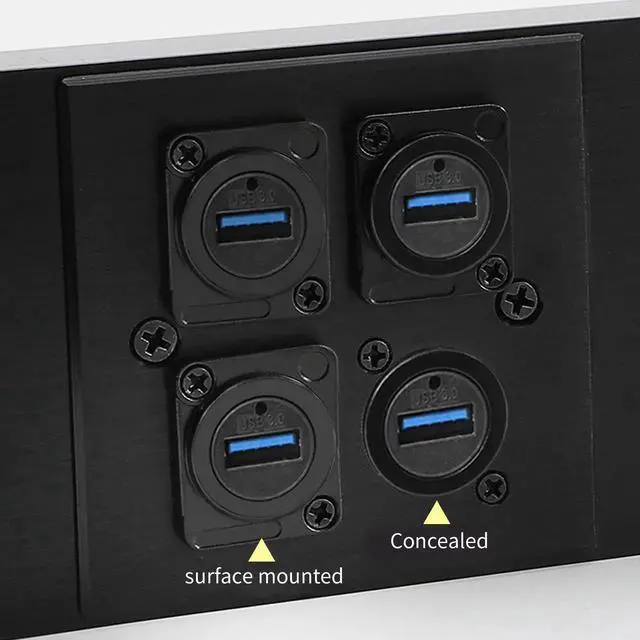

[USB 3.0 Port Female to Female Converter]:Optional front panel mounting and rear panel mounting.
[Wide Compatibility]:USB 3.0 is compatible with USB3.0 / 2.0.

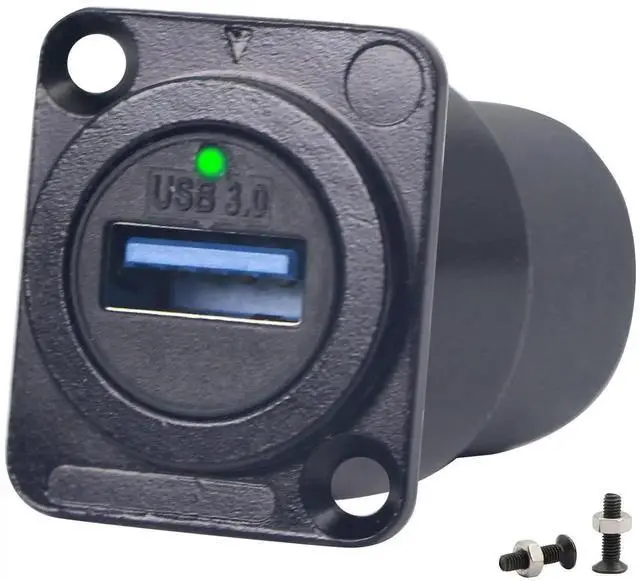

[LED Display]:The LED light also makes it quick and easy to find the USB socket in the dark or at night.
[In-line D-through Type]:Easy to Install,The screws that need to be installed are provided with the product, ensure safe and stable,no need soldering.

Overview

Specs

Reviews

It is widely used in audio, video and photoelectric networks. Its base design is based on industrial standard panel apertures.

Type: Connectors.

Interface: USB 3.0.

Color: Black.

In-line D-through data connector,ensure safe and stable.

Electrical parameters Contact resistance: <10M Dielectric strength: DC1kV Frequency range: 1-100MHz Insulation resistance:> 0.5G Rated current: 1.5A Rated voltage: 50V

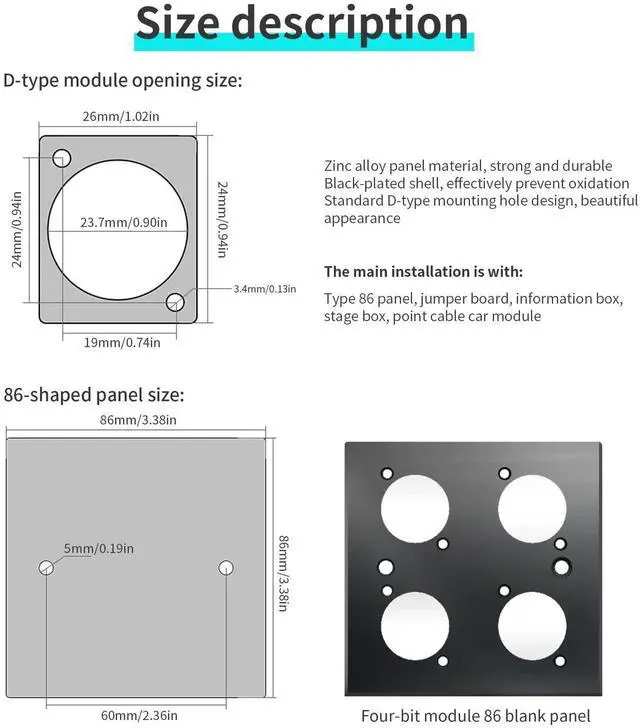

Mechanical parameters Insertion pressure: 10 N Withdrawal pressure: 10 N Service life:> 1000 times Base shape: D type

Material Contact plating: 7µm Au over Ni plating Insulator: PBTP 15% GR Panel: Zinc diecast (ZnAl4Cu1)

Package : 1 x USB 3.0 socket;2 x screws.
