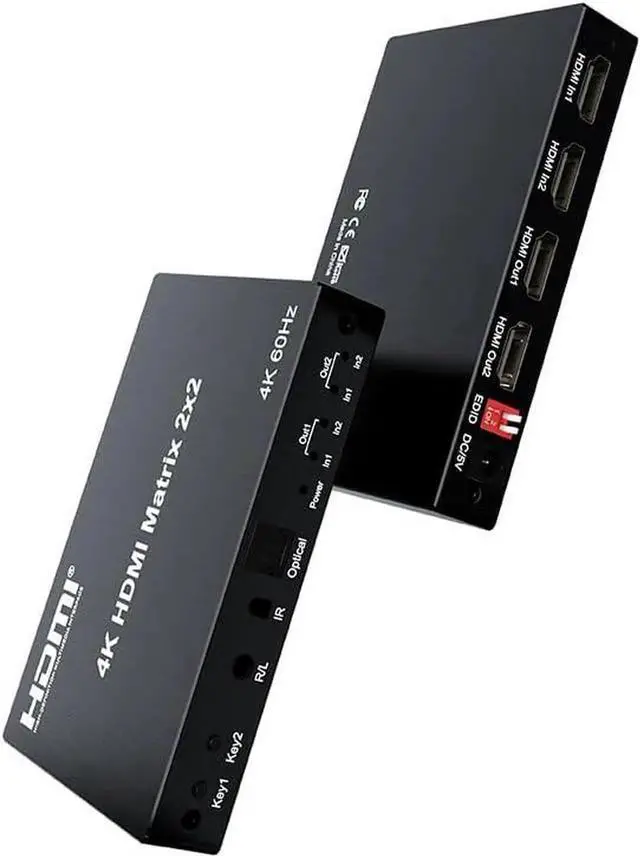

DIXSG 2x2 HDMI Matrix, HDMI Matrix Switch Splitter 2 in 2 Out with Remote Control, Support UHD HDR 4K@60hz, HDMI 2.0, HDCP 2.2, 18Gbps, EDID Management, Digital Optical Stereo, Audio Extractor

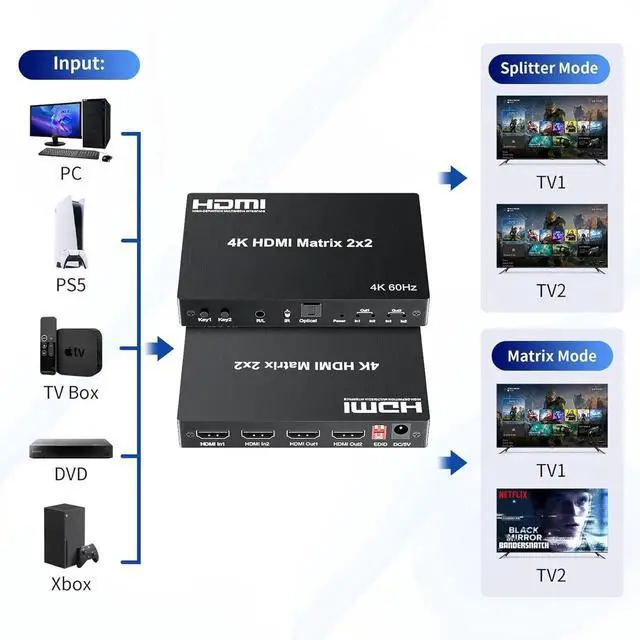

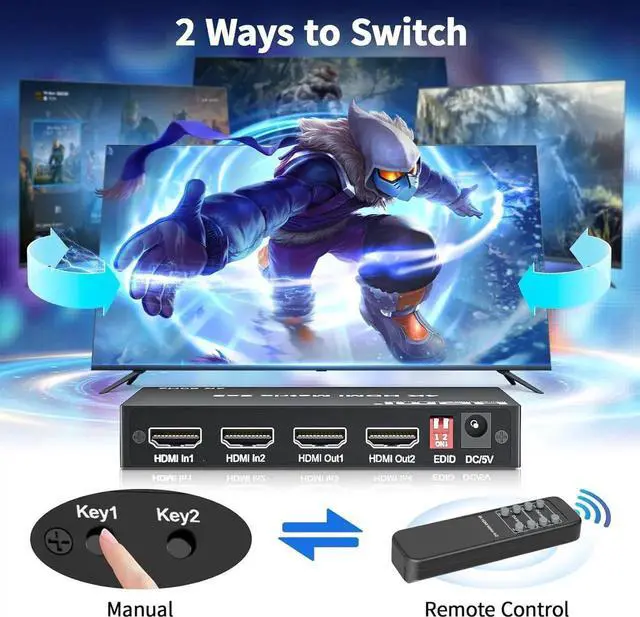

- HDMI Matrix 2x2: The 2 in 2 out HDMI Matrix Switch allows two HDMI devices to be switched or split easily to two HDMI monitors or projectors. It is easy to select the HDMI signal source by the IR remote control
- HDR 4K Resolution: Supports video resolution up to 4K@60Hz, 4K@30Hz. It features EDID management and supports up to 18Gbps bandwidth. The HDMI Matrix fully complies with HDMI 2.0 and HDCP 2.2 and 1.4 specifications

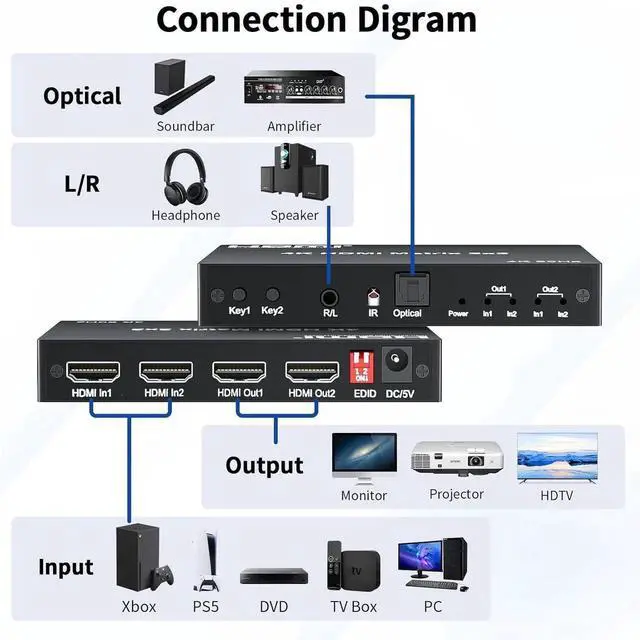

- Audio Extract Function: The 4K HDMI Matrix can extract the audio from output 1 and send it to the digital optical SPDIF and stereo analog audio outputs. Audio format support LPCM / DTS5.1 channel/Dolby-AC3
- Wide Compatibility: Input support: Computer, PS3, PS4 pro, Xbox, NS, DVD player, TV Box, Fire TV etc; Output support: Projector, HDTV, Monitor, etc
- What You Get: 1 x HDMI Matrix 2 in 2 out, 1 x Charger, 1 x USB Cable, 1 x IR Remote, 1 x User Manual
+
+
Overview
Specs
Reviews

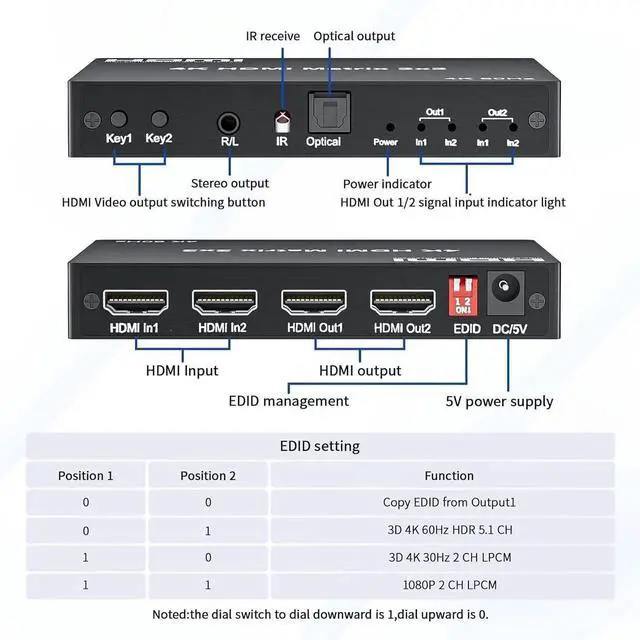

EDID function can set the video and audio format of the HDMI source
Flexible EDID switching provides 4 switching modes that can be met for different resolution needs
NOTE!!!
After you had set the EDID, please restart the HDMI Matrix Switch
Specifications
| HDMI Resolution | Up to 3840*2160@60Hz |
| Video Format | Supports 3D and 8/10/12 bit deep color |
| Audio Format | LPCM / DTS / Dolby-AC3 |
| Power Adapter Format | Input: AC 100V-240V; Output: DC 5V/1A |
| Input Cable Distance | 4K@30Hz 15M (AWG26 HDMI standard cable) ; 4K@60Hz 5M (HDMI 2.0 standard cable) |
| Output Cable Distance | 4K@30Hz 15M (AWG26 HDMI standard cable) ; 4K@60Hz 5M (HDMI 2.0 standard cable) |
| Weight | 174G |
HDMI Matrix 2x2: The 2 in 2 out HDMI Matrix Switch allows two HDMI devices to be switched or split easily to two HDMI monitors or projectors. It is easy to select the HDMI signal source by the IR remote control
HDR 4K Resolution: Supports video resolution up to 4K@60Hz, 4K@30Hz. It features EDID management and supports up to 18Gbps bandwidth. The HDMI Matrix fully complies with HDMI 2.0 and HDCP 2.2 and 1.4 specifications
Audio Extract Function: The 4K HDMI Matrix can extract the audio from output 1 and send it to the digital optical SPDIF and stereo analog audio outputs. Audio format support LPCM / DTS 5.1 channel/Dolby-AC3
Wide Compatibility: Input
support: Computer, PS3, PS4 pro, Xbox, NS, DVD player, TV Box, Fire TV etc;
Output support: Projector, HDTV, Monitor, etc
What You Get: 1 x HDMI Matrix 2 in 2 out, 1 x Charger, 1 x USB Cable, 1 x IR Remote, 1 x User Manual
