DIXSG Outdoor PoE Passthrough Switch - 1 In 3 Out Extender, IEEE802.3af/at Powered, 100Mbps Ethernet, Wall Mount Waterproof Plug and Play

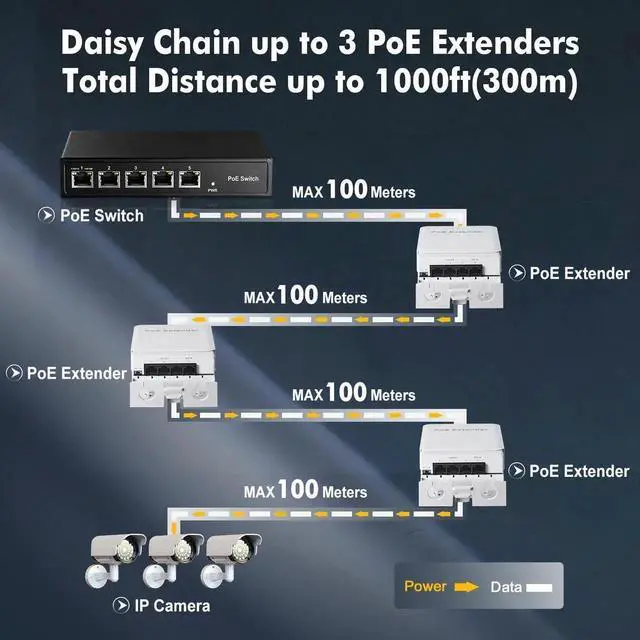

outdoor gigabit PoE extender provides 1×10/100Mbps PoE in port and 3×10/100Mbps PoE out ports for remote PoE/PoE+ device. The PoE extender auto-detects a PoE (15.4W) or PoE+ (30W) devices. Daisy-chain up to 3 units for a total PoE+ network extension of 300m (1000 ft.).

PoE Powered

The PoE extender is powered by PoE switch/spliter. No power adapter needed.

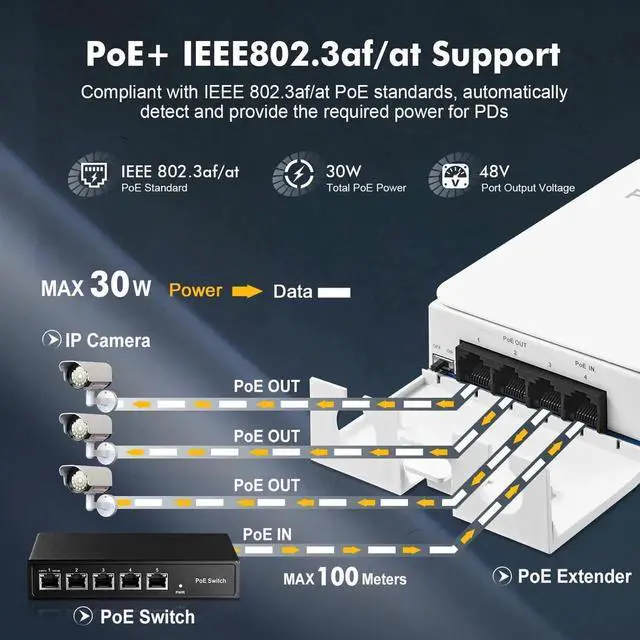

IEEE802.3af/at Support

1 in 3 out PoE extender compatible with IEEE802.3af/at standard, It determines and delivers the exact power supply to your device

Port Isoltion

By dialing or enabling extend switch on the PoE extender, port 1-3 can be isolated with each other, prevent broadcast storms.

100M Ports Configuration

1*10/100Mbps PD Ethernet Port + 3*10/100Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

Long Distance PoE

The transmission distance of a PoE out port can be up to 300m with cascade, meeting the requirement of wired transmission.

Easy to Use

Plug and play, No configuring is required. Auto MDI/MDI-X crossover and Auto-negotiation on each port senses the link speed of a network device.

Compact Size

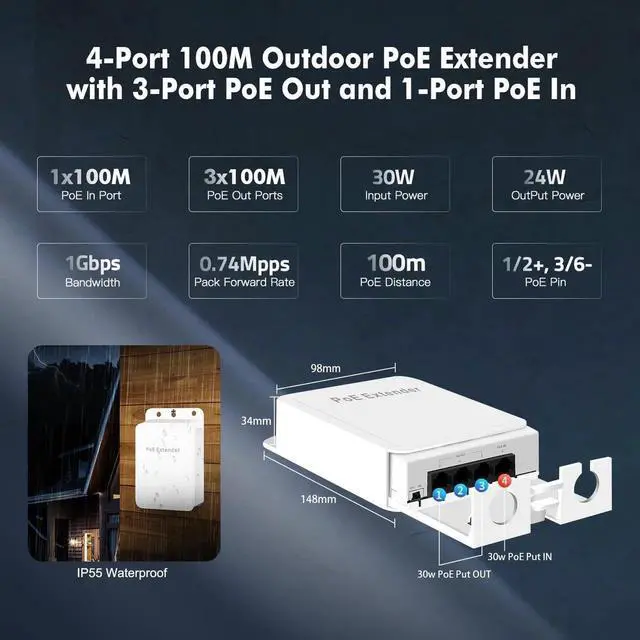

Compact dimension (98mm * 128mm * 34mm), This design makes these sensors interesting for room critical applications.

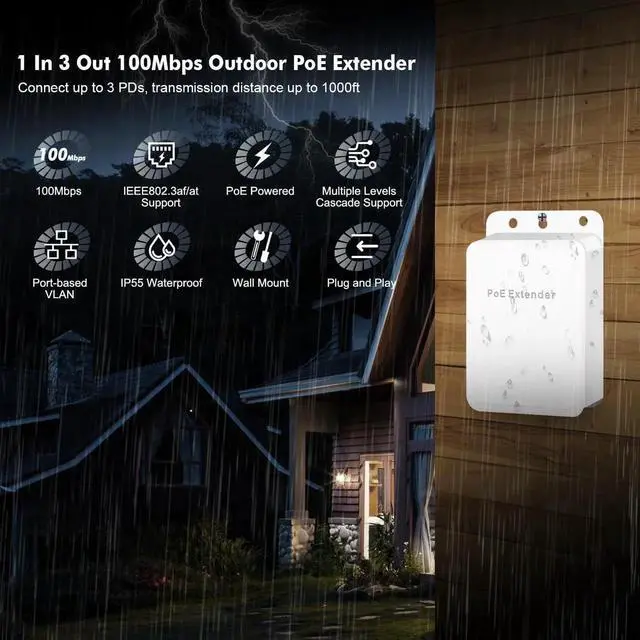

IP55 Waterproof & Wall Mout

The PoE extender uses ABS+PC housing and supports IP55 waterproof and wall mount installation, It designed for outdoor surveillance scenarios.

PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.

PoE pin:

Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);

Output: 1/2 (+), 3/6 (-)

Outdoor weatherproof Industrial grade ABS polymer material shell, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.

Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*. Support VLAN mode and extension 250m, controlled by dipswitch
