DIXSG Gigabit PoE Passthrough Switch, 1 PoE in 3 PoE Out Extender, IEEE802.3af/at PoE Powered, 10/100/1000Mbps Ethernet, din-Rail & Wall Mount

Full Gigabit Configuration

1*10/100/1000Mbps PD Ethernet Port + 3*10/100/1000Mbps PoE Por, provide enough bandwith to prevent network bottlenecks.

Compact Size

Compact dimension (82mm * 52mm * 23mm), This design makes these sensors interesting for room critical applications.

Wall & Din-rail Mountable

Ultra Compact PoE repeater can be mounted on a 35mm din rail and wall. perfect solution for a variety of environments.

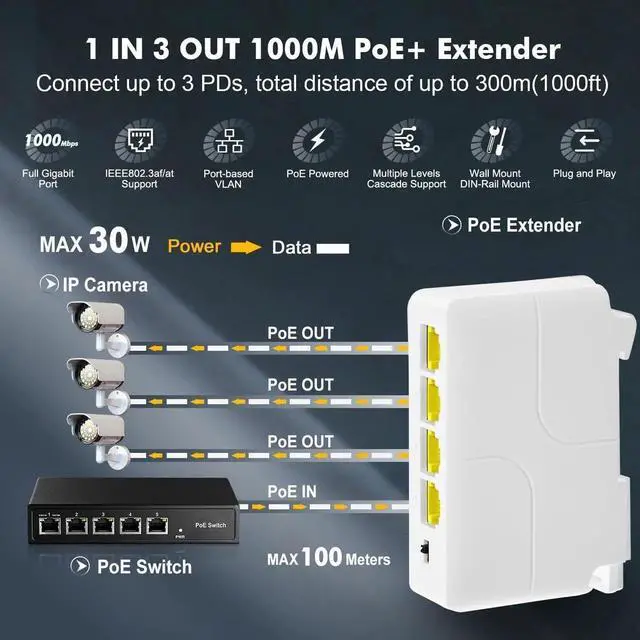

Gigabit PoE PassthroughInclude 1 PoE In 3 PoE Out Gigabit Ports, 10/100/1000Mbps rate. Powered by PoE network, no AC power supply required

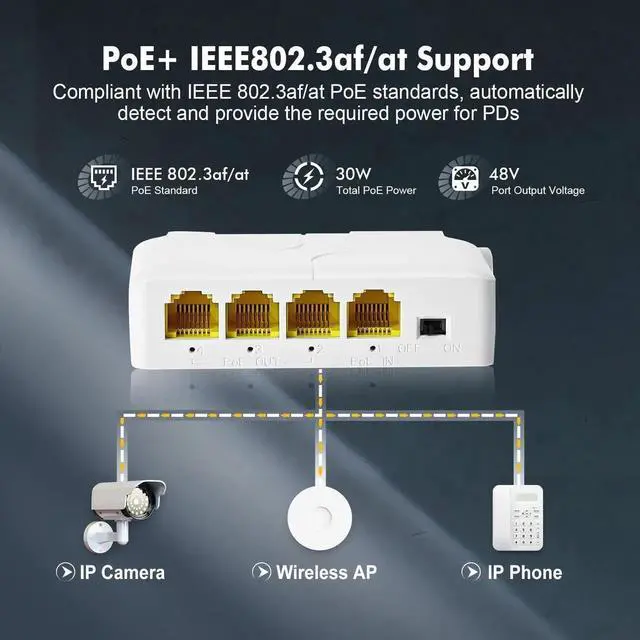

IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.

PoE pin:

Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);

Output: 1/2 (+), 3/6 (-)

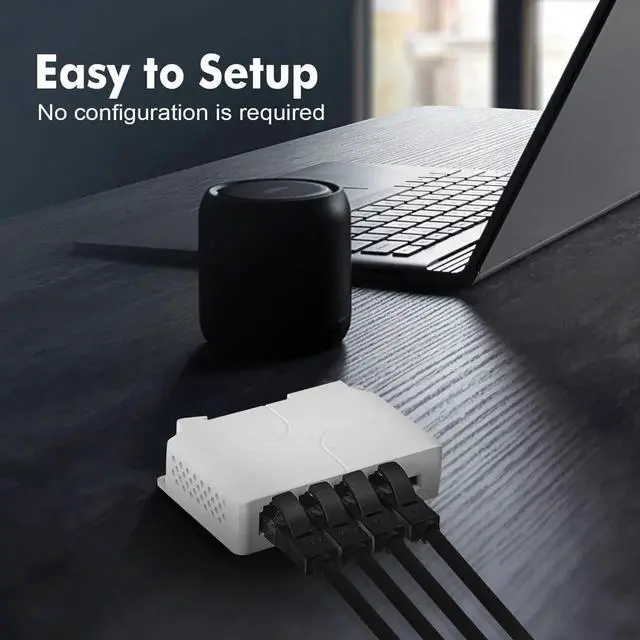

Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*

Easy Install Support wall mount and din rail mount, smaller size save space, suitable for many positions

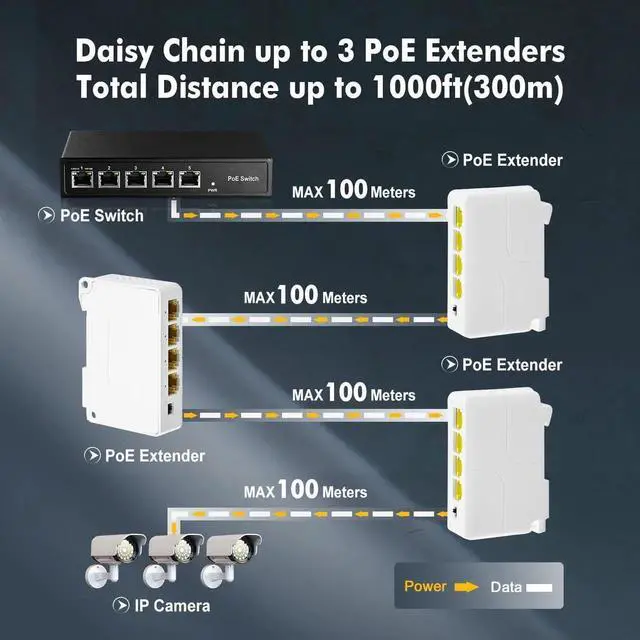

Widely Used Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
