M2 NGFF ssd SATA3 SSDs Turn Sata Adapter Expansion Card Adapter SATA to NGFF High-capacity High-power B/M-KEY

Package:No
Model Number:SA-123
Type:SATA Cables
Origin:Mainland China
Certification:CE
Products Status:STOCK

E431 E531 X240 Y410P Y510P M.2 NGFF PCI-E 2 LANE SSD to 9.5mm 2.5" SATA 22pin hard disk case PCBA

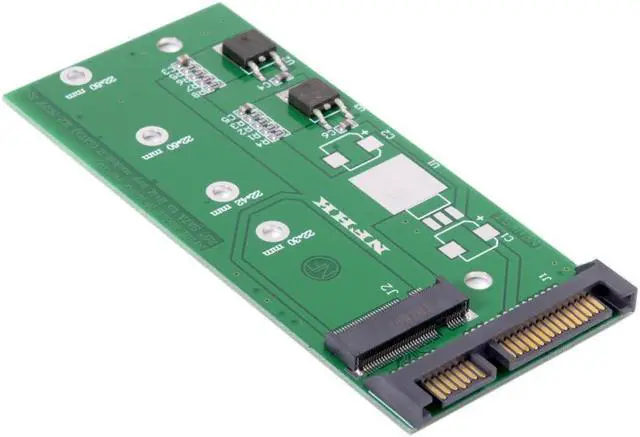

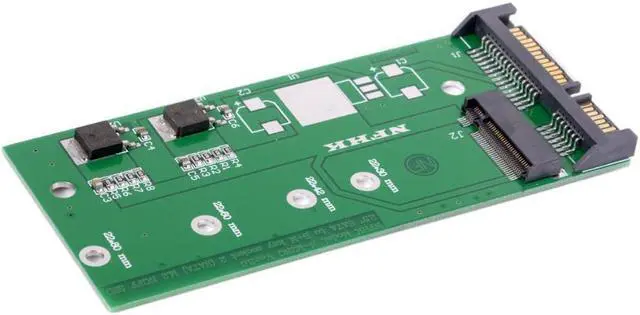

SATA III to M.2(NGFF) Storage adapter, providing one 7+15pin connector on the host connection and one 67pin B key M.2 connector on the SSD storage devices connections. When assembled, it can operate in a variety of operating systems. Such as DOS, Windows 95, 98, XP, 2000, Vista, Win 7, Linux, Unix, and so on.
Work for E431 E531 X240 Y410P Y510P M.2 NGFF PCI-E 2 LANE SSD
The adapter allows the installation of SSD as system disk, boot the operating system directly, without having to install any drivers, but does not affect the execution speed of the SSD storage devices.
Fully compliant with SATA revision 3.1
Fully compliant with PCI Express M.2 Specification Version 1.0
PWM Power IC / 1.4MHz 5.5V synchronous buck converter
M.2 SSD input voltage: 3.3V ±5%, input max. current: 3A

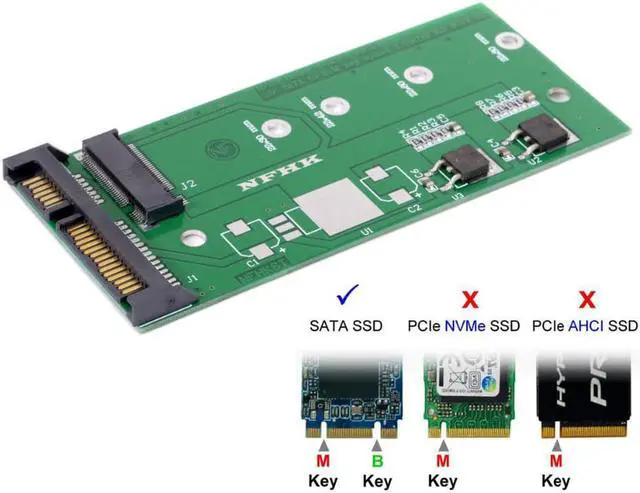

Note: The adapter only work for  B-key or B/M-key socket, cannot work for M-key socket.
