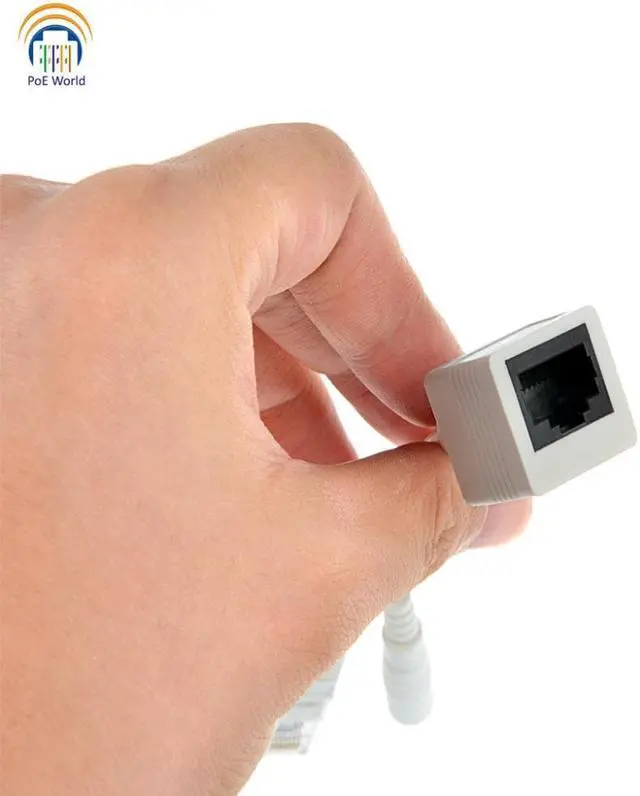

POE cable Hot POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter Injector Power Supply Module 12-48v For IP Camera

Origin:Mainland China
Certification:CE,FCC
Model Number:POE-1-IO
Color:White
Data Rate:10/100Mbps
Connector:RJ-45

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER. It is suitable for using with products that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax etc.
Data:  PIN 1/2 & 3/6
Power:  PIN 4/5+ & 7/8
Data in Connects:  PC/HUB/Switch
Ethernet Data rate:  10/100 Mbps
Ethernet Cable:  TIA/EIA 568 Cat.5
Ethernet Cable Connector:  RJ-45
Operating Temperature : 0 - 40 Degree
Storage Temperature:  -40 - 70 Degree
Operating Humidity: 10% to 80% RH
Storage Humidity 5% to 90% RH
DC PLUGS & JACKS 2.1 x 5.5 x 12mm Bakelite
Package Include:
PoE Splitter x3
PoE Injector x3
