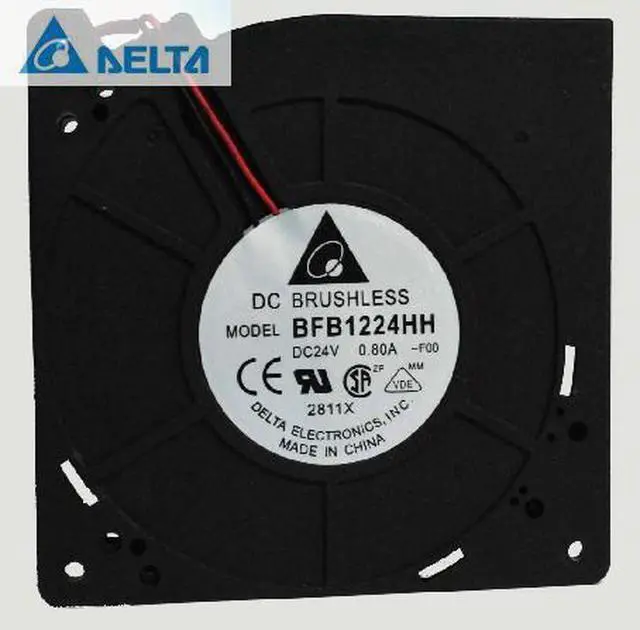

blower fan for delta BFB1224HH 12032 24V 0.80A centrifugal Excellent fan 120*120*32mm Blower Server inverter pc case cooling fan

Certification:CE
Origin:CN(Origin)
Application:Computer Case
Package:Yes
Lines:showed as above pic
Type:Fan

Brand
for delta
Fan Model
: BFB1224HH - foo
Exterior dimensions
: 120 * 120 * 32MM
Screw pitch
: 105mm
Bearing
: High -precision double ball bearing
Voltage
: 24V
Start-up voltage
: 16V
Operating voltage
:7.0- 27 .6 V
Electric current
: 0.8A
Power
: 19.2W
Speed
: 2800RPM ± 250RPM
Noise
: 54dB A
Air volume
: 32.49CFM
Line length
: 10cm
Wiring
: 2P interface supports 2-wire speed
Fan Frame
: An injection molding , PBT +30 % glass fiber VO grade flame retardant
Blades
: Injection molding , PBT +30 % glass fiber + VO grade flame retardant .
Fan rotation
: Counterclockwise as viewed from the direction of the blades
Operating temperature
: -10 Degrees Celsius to +70 degrees Celsius
Storage temperature
: -40 Degrees Celsius to +70 degrees Celsius
Power range
: Plus or minus 15 % of the rated power
Insulation resistance
: > 500 megohms
Withstanding Voltage
: Department of leakage current 0.5mA 500V / 1 minute
Working life
: 80,000 hours at an ambient temperature of 25 degrees
Scope
: Inverter,
Chassis cooling , the transformation of power supply fan , water cooling auxiliary , game consoles heat , high reliability server application places.
