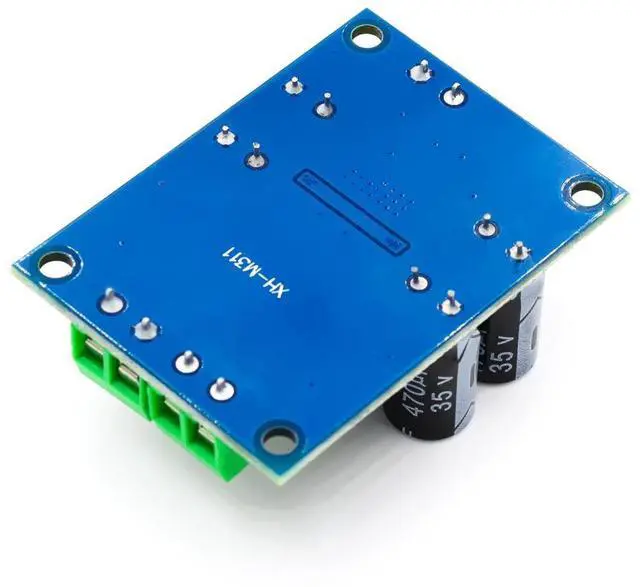

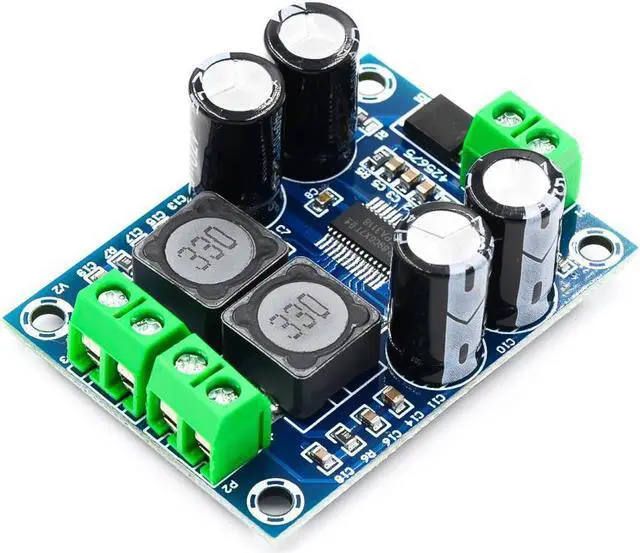

XH-M311 mini version TPA3118 digital audio amplifier board audio power amplifier module mono 60W
Limited time offer, ends 12/18 By Silicore Tech
- XH-M311 mini version TPA3118 digital audio amplifier board audio power amplifier module mono 60W
+
+
Overview
Specs
Reviews
Origin:CN(Origin)
Condition:
Type:Voltage Regulator
Application:Computer
Supply Voltage:1
Dissipation Power:1
is_customized:Yes
product description:
This model uses TI's TPA3118 as the main chip, with a wide power supply range of DC10-24V. In the case of 24V power supply, the load of 2 ohm audio can reach 60W output, and the 60W output is limited to 2 ohms, and the output power of 4 or 6 ohms will drop. , The circuit adopts PBTL mode so it can achieve low resistance and high power, and large internal resistance speakers can be connected in parallel to achieve high power output
Product name: digital audio amplifier board
Product model: XR-M311
Enlargement type: Class D
Work efficiency: 93%
Chip type: TPA3118
Power supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35HZ-88KHZ
Number of channels: mono
Impedance matching: 2-6 ohms
Appearance size: 55*40*15MM
Weight: 30 grams
Condition:
Type:Voltage Regulator
Application:Computer
Supply Voltage:1
Dissipation Power:1
is_customized:Yes
product description:
This model uses TI's TPA3118 as the main chip, with a wide power supply range of DC10-24V. In the case of 24V power supply, the load of 2 ohm audio can reach 60W output, and the 60W output is limited to 2 ohms, and the output power of 4 or 6 ohms will drop. , The circuit adopts PBTL mode so it can achieve low resistance and high power, and large internal resistance speakers can be connected in parallel to achieve high power output
Product name: digital audio amplifier board
Product model: XR-M311
Enlargement type: Class D
Work efficiency: 93%
Chip type: TPA3118
Power supply voltage: DC10-24V
Input current: 3A recommended
Output power: 60W*1
Frequency response range: 35HZ-88KHZ
Number of channels: mono
Impedance matching: 2-6 ohms
Appearance size: 55*40*15MM
Weight: 30 grams
