Dual Band 2400Mbps Wireless Wi-Fi 6 Intel AX201 For Bluetooth 5.0 NGFF Key E CNVio 2 Wifi Card AX201NGW 2.4Ghz/5Ghz 802.11ac/ax

Transmission Rate:10/100/1000Mbps
Certification:CE
Origin:CN(Origin)
Kind:Internal
Type:wireless
Lan Transmission Rate:1000M Ethernet
Application:Laptop
Wireless Protocol:802.11a/g
Adapter Socket:M.2
Interface Type:NGFF
Wi-Fi Supported Frequency:2.4G & 5G
Transmission Speed:1200 Mbps
Package:Yes
Applicable Network Type:Fast Ethernet
Model Number:AX201NGW
Condition:
Dual band:2.4G/5G
Max Speed:2400Mbps(the router must support 802.11ax)
Bluetooth:BT 5.0
Frequency Range:Double frequency(2.4GHz, 5GHz)
is_customized:Yes
Compatible with:M.2 Key E: CNVIo2

Wifi-6 AX201
The Wi-Fi 6 AX201 adapter is a CRF(companion RF module)supporting the integrated wireless 802.11ax solutions.The solution provides Bluetooth 5 and 2x2 802.11ax Wi-Fi.The maximum throughput supported by the Wi-Fi 6 AX201 is a speedy 2.4 Gbps(160Mhz). The AX201NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.
Description
Model: AX201NGW
Dual band: 2.4Ghz / 5Ghz(160Mhz)
Speed up to 2.4Gbps (The router must on 160Mhz,802.11ax);
Speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band (802.11ax in both).
With Bluetooth 5.0, Support MU-MIMO
Interface: M.2,CNVI, 22*30MM
Supported Operating Systems: Only work on Microsoft Windows 10* 64bit,
Note: Not support Windows 7/8/8.1
The module supports MU-MIMO, 2x2 TX/RX channels with two antenna and Bluetooth 5.0
Note:

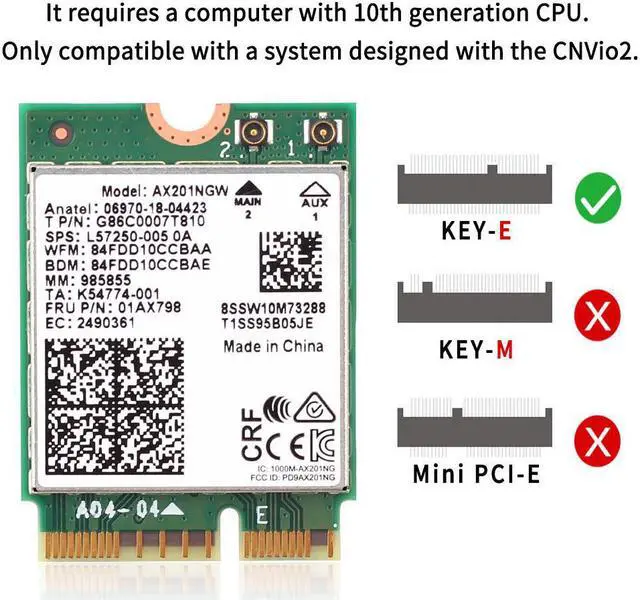

AX201NGW is compatible with fewer computers. It requires a computer with 10th generation CPU. Even though you can insert these CRF to a standard M.2 Key E socket, they are only compatible with a system designed with the CNVio2.
Compatible With:
Support almost laptop with NGFF(M.2) 2230 slot; Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc
(Do not include lenovo and HP,if it can use after rewrite the whitelist ).
Not support IBM/Thinkpad/lenovo/hp laptop.
(Any question,pls feel to contact with us,thanks.)

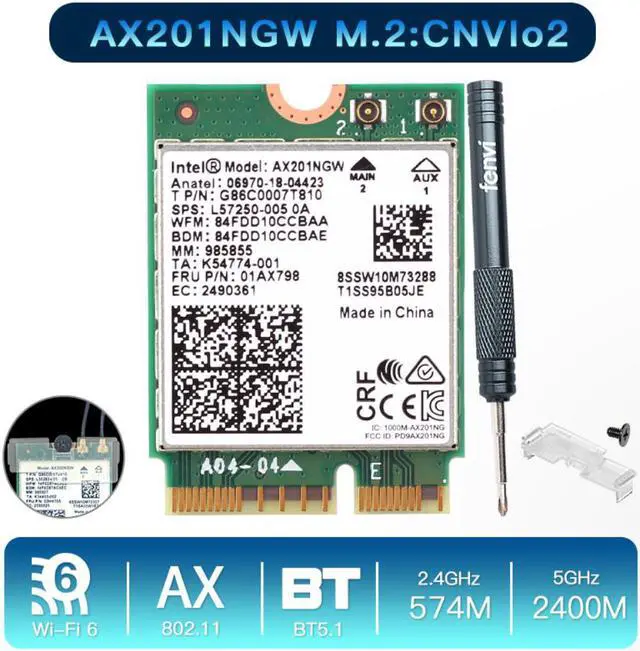

Package Include
1 x ax201NGW NGFF Key E Wireless card
Some Screws
