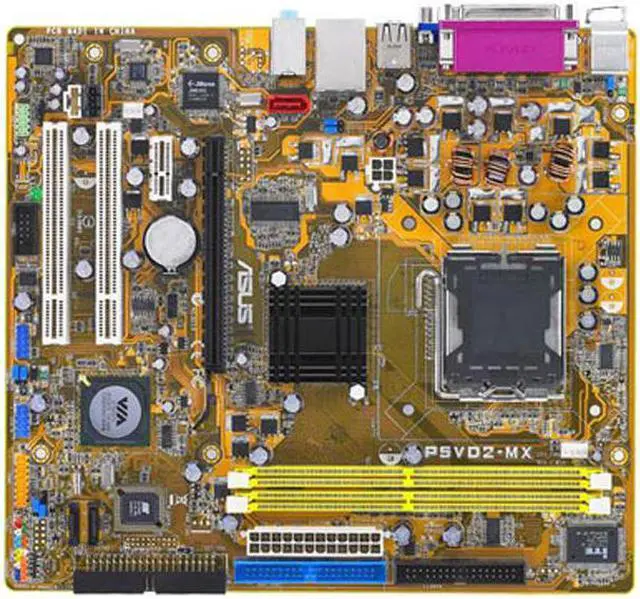

ASUS P5VD2-MX LGA 775 VIA P4M890 Desktop PC Motherboard DDR2 Pentium D/Pentium 4/Celeron Cpus PCI-E 16X USB2.0 SATA Micro ATX

Quality Certification:ce
Chipset:Intel Others
Socket Type:LGA 775
Storage Interface Type:SATA
Onboard LAN:1x RJ45
Package:No
Model Number:P5VD2-MX
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:4 GB
Chipset Manufacturer:Intel
Back I/O Ports:PS/2
Support Memory Type:DDR2
Usage Scenario:Audio & Video
Number of PCI:2
PCI - E standards:PCI - E 2.0
Origin:CN(Origin)
Number of PCIe x 16:1
Memory channel:Double
Number of PCIe x 1:1
Certification:CE
Form Factor:Micro-ATX

P5VD2-MX Parameters
Motherboard chip
Integrated chip graphics card/sound card/network card
Main chipset VIA P4M890
Chipset description Using VIA P4M890/VIA VT8237A chipset
Display chip integrated graphics, maximum shared 64MB video memory
Audio chip integrated 6-channel sound card
Network card chip Onboard Realtek RTL8201CL chip, providing 10/100 100M network card
Processor specifications
CPU type Pentium D/Pentium 4/Celeron/Core 2 Duo
CPU socket LGA 775
CPU description Support Intel Pentium D/Pentium 4/Celeron, 65nm core and CoreTM2 Duo processor
Memory specifications
Memory type 2×DDR2 DIMM
Memory description Support DDR2 533/400 memory, the maximum support capacity is 2GB
Storage expansion
PCI-E standard PCI-E 16X
PCI slot 2 PCI slots, 1 PCI-E 1X
Storage interface 2 SATA interfaces, support RAID 0, 1, JBOD function
I/O interface
USB interface 8 USB2.0 interfaces
Video interface Audio interface
Power connector One four-pin, one 24-pin power connector
Other interfaces
PS/2 mouse, PS/2 keyboard interface
Plate type
Motherboard type Micro ATX type
Dimensions 23.5×21.8cm
