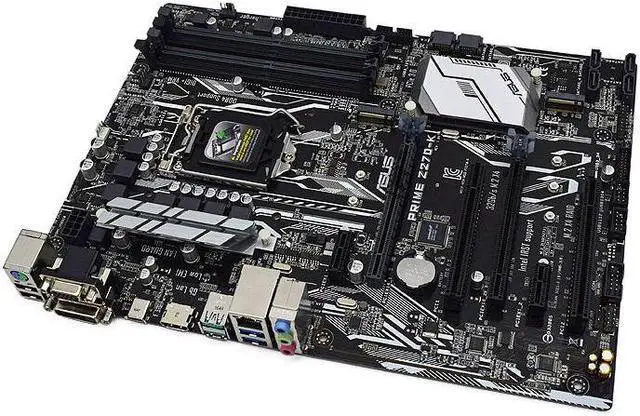

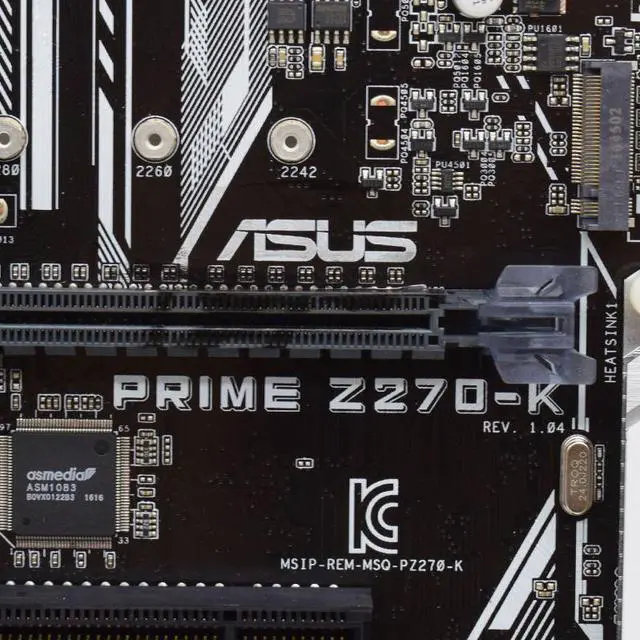

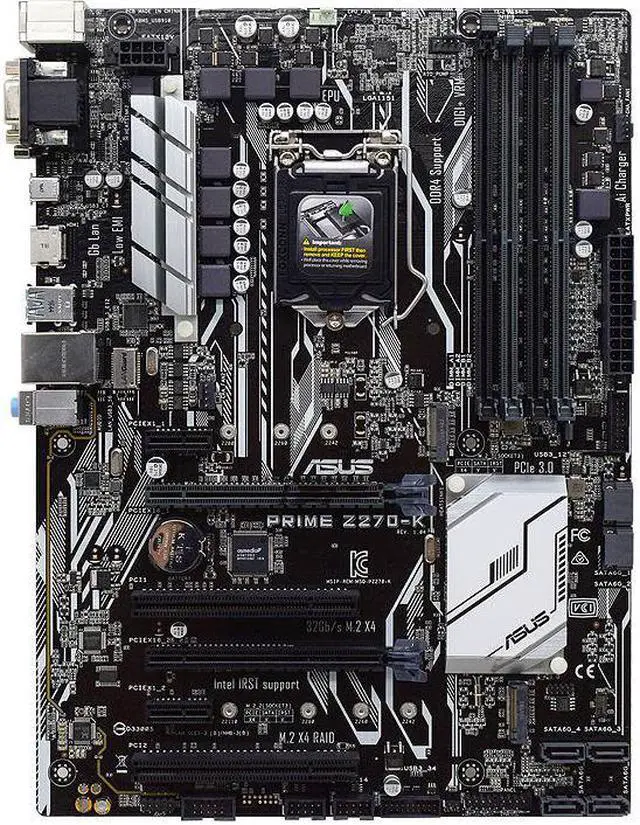

ASUS PRIME Z270-K Z270 Motherboard LGA 1151 DDR4 64GB RAM Intel Core i7 i5 6500T 6400T CPU M.2 PCIE 3.0 With Box Motherboard Set

Quality Certification:ce
Chipset:Intel Z270
Socket Type:LGA 1151
Storage Interface Type:SATA 3
Onboard LAN:1x RJ45
Package:No
Model Number:PRIME Z270-K
Application:Desktop
With CPU:No
Special Function:None
Maximum Ram Capacity:64 GB
Chipset Manufacturer:Intel
Back I/O Ports:VGA(D-Sub)
Support Memory Type:DDR4
Usage Scenario:Gaming
Number of PCI:2
PCI - E standards:PCI - E 3.0
Origin:CN(Origin)
Number of PCIe x 16:2
Memory channel:Double
Form Factor:CeB
Number of PCIe x 1:2
Certification:CE
Number of M.2:2
Type 1:Z270 Motherboard
Type 2:Motherboard LGA 1151
Type 3:Z270 Motherboard LGA 1151
Type 4:DDR4 64GB RAM
Type 5:Intel Core i7
Type 6:Intel Core i5

PRIME Z270-K Parameters
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel Z270
Chipset description Using Intel Z270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip onboard Intel I219V Gigabit network card
Processor specifications
CPU type 7th/sixth generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support Intel 14nm processor
Memory specifications
Memory type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory description: Support dual-channel DDR4 3733(overclock)/3600(overclock)/3466(overclock)/3866(OC)/3400(overclock)/3333(overclock)/3300(overclock)/3200(overclock)/3000(overclock) /2800(overclock)/2666(overclock)/2400(overclock)/2133 MHz memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface 2×M.2 interface, 6×SATA III interface
I/O interface
USB interface 2×USB3.1Type-A interface, 1×USB3.1Type-C interface, 6×USB3.0, 6×USB2.0 interface
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces
1×RJ45 network interface, 1×optical interface, audio interface, 1×PS/2 keyboard and mouse universal interface
Plate type
Motherboard board type ATX board type
Dimensions 30.5×22.6cm
