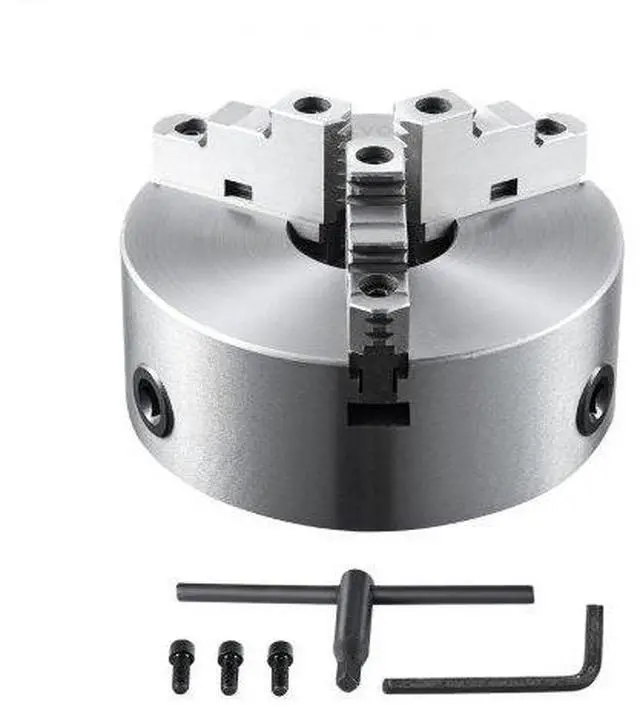

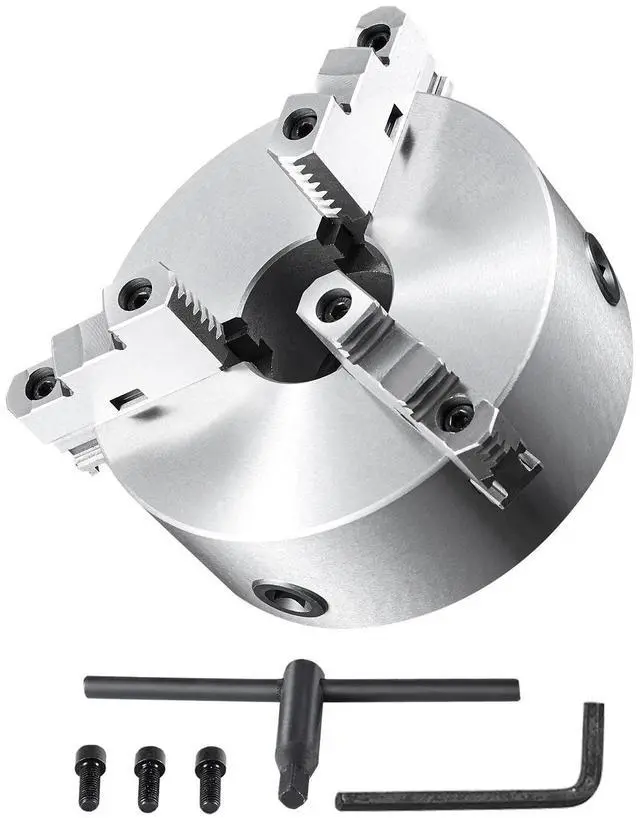

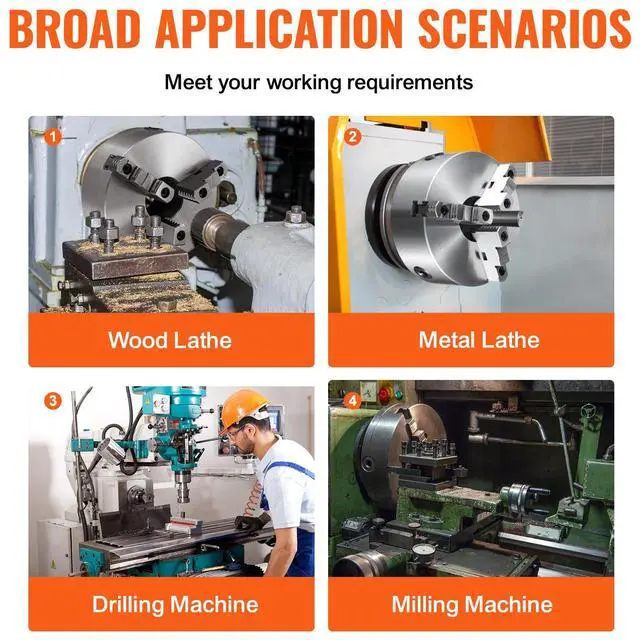

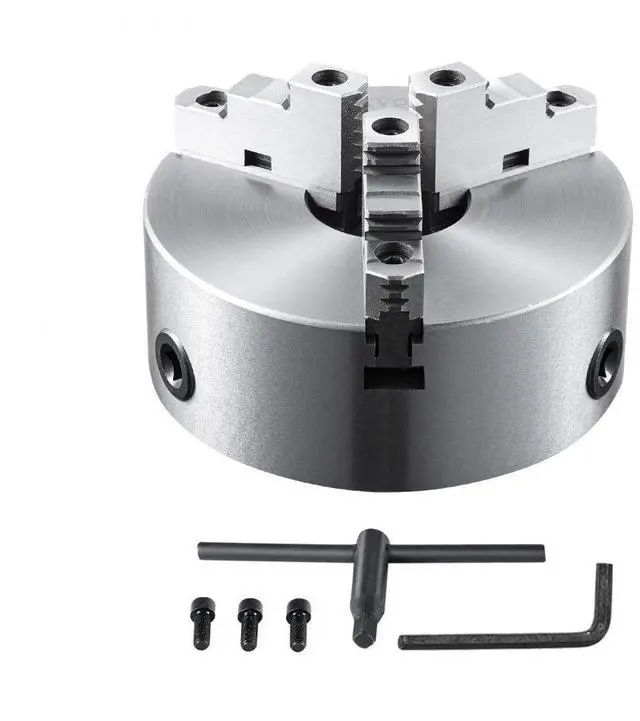

3-Jaw Lathe Chuck, 8'', Self-Centering Lathe Chuck, 0.16-8 in/4-200 mm Clamping Range with T-key Fixing Screws Hexagon Wrench, for Lathe 3D Printer Machining Center Milling Drilling Machine

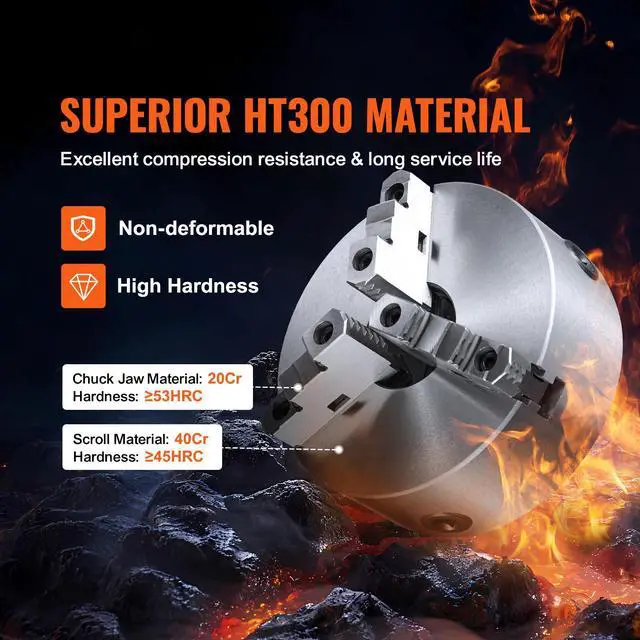

- Superior HT300 Material: Our 3-jaw lathe chuck is constructed from HT300 material, 20Cr steel chuck jaw with 53HRC hardness, and 40Cr steel scroll with 45HRC hardness. The lathe chuck is quenching hardened for superior hardness and rust resistance, providing outstanding working performance and reliability for both small and large workpieces.

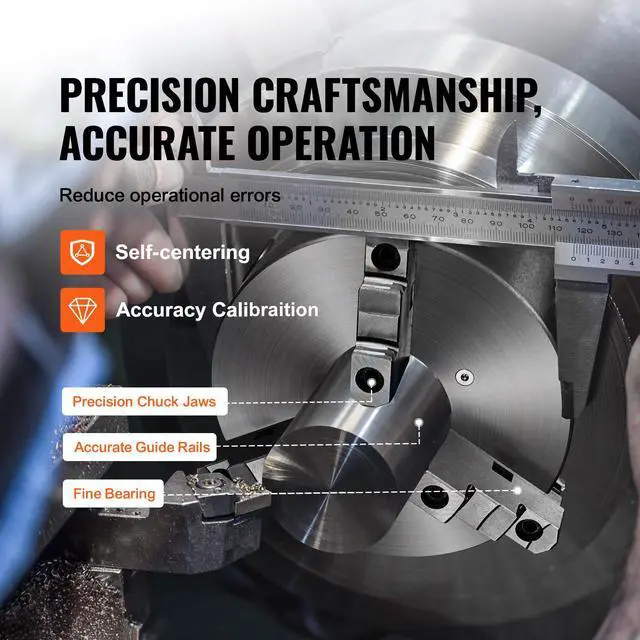

- High Precision: A high-precision machining process is adopted to ensure the structural stability and machining accuracy of the 3-jaw chuck. The self-centering lathe part contains a delicate bevel gear and three pinion gears, which help to achieve precise machining progress. Bearing tolerance is 0.05 mm / 0.002 in.

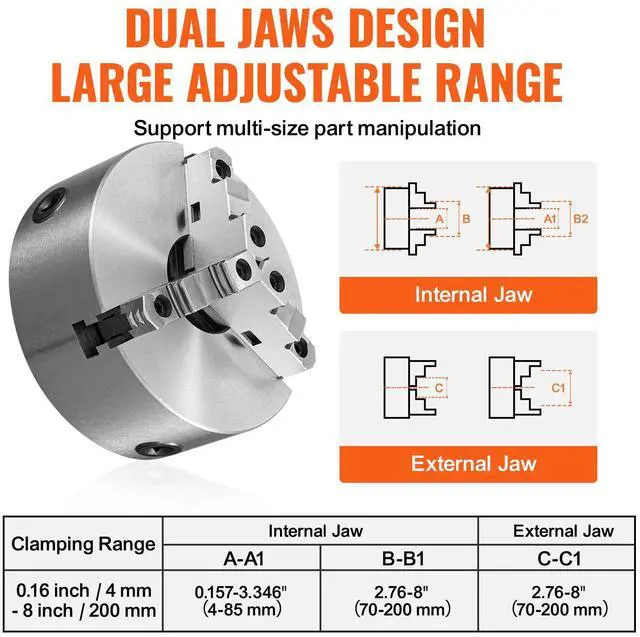

- Dual-Use Jaw: The chuck jaws can be used as both internal jaw and external jaw. The external jaws are capable of clamping larger-sized industrial parts. 0.16-8 in/4-200 mm clamping range provides precise clamping and securing of various industrial components
+
+
Overview
Specs
Reviews

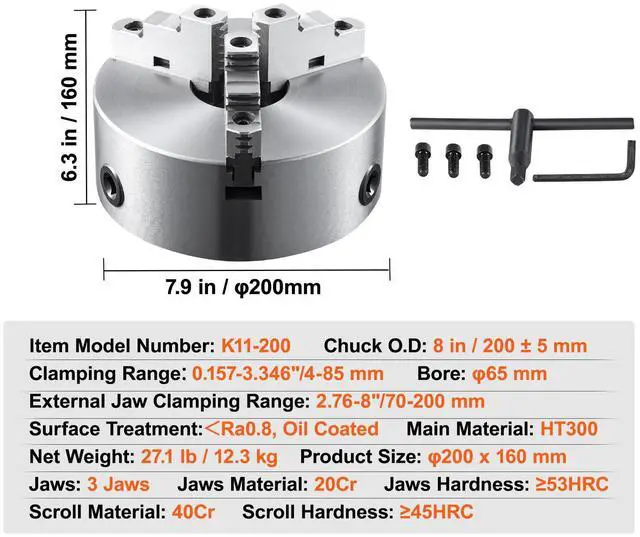

Specifications
Item Model Number: K11-200
Chuck O.
D: 8 in / 200 ± 5 mm
Clamping Range: 0.157 - 3.346" /4-85 mm
External Jaw Clamping Range: 2.76 -8"/70-200 mm
Fixed Thread: 3-M10
Bore: 65 mm
Surface Treatment: Ra 0.8, Oil Coated
Main Material: HT300
Net Weight: 27.1 lb / 12.3 kg
Product Size: 200 x 160 mm
Jaw: 3-Jaw, 20Cr, 53HRC
Scroll: 40Cr, 45HRC
Package Content
1 x T-key
3 x Fixing Screws
1 x Hexagon Wrench
1 x User Manual
