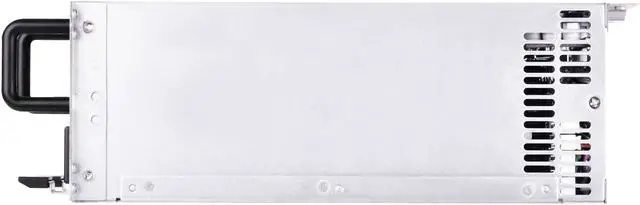

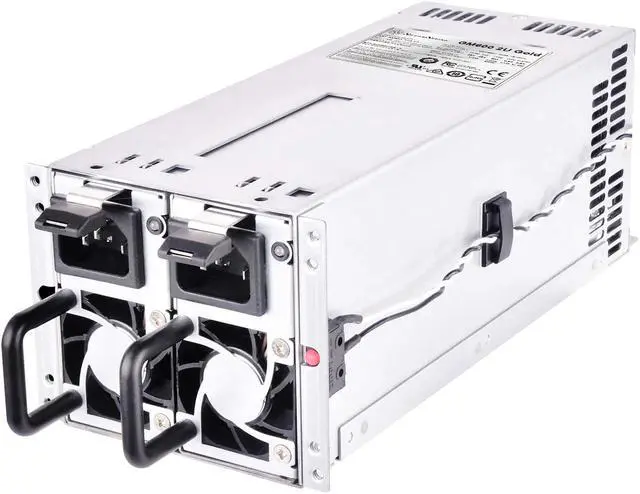

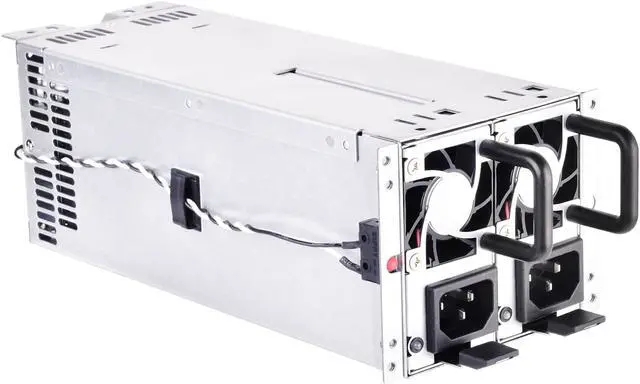

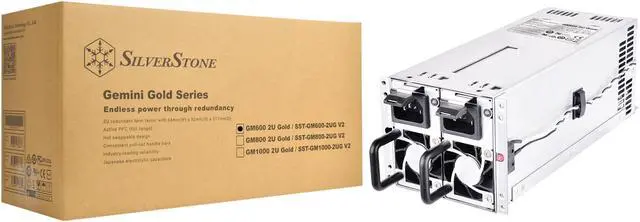

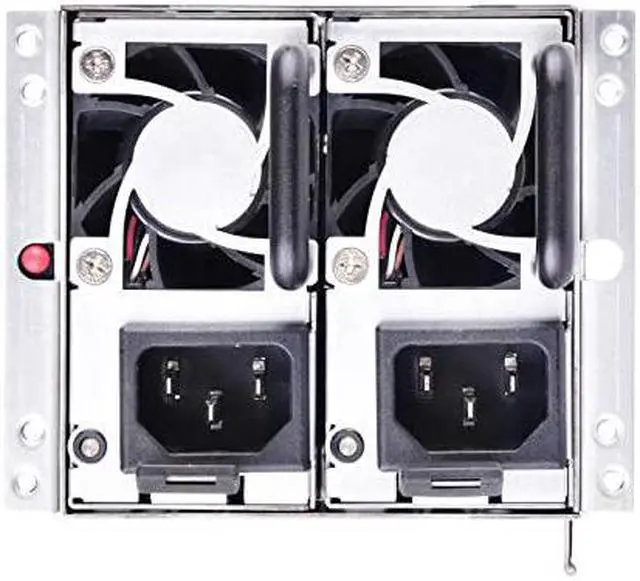

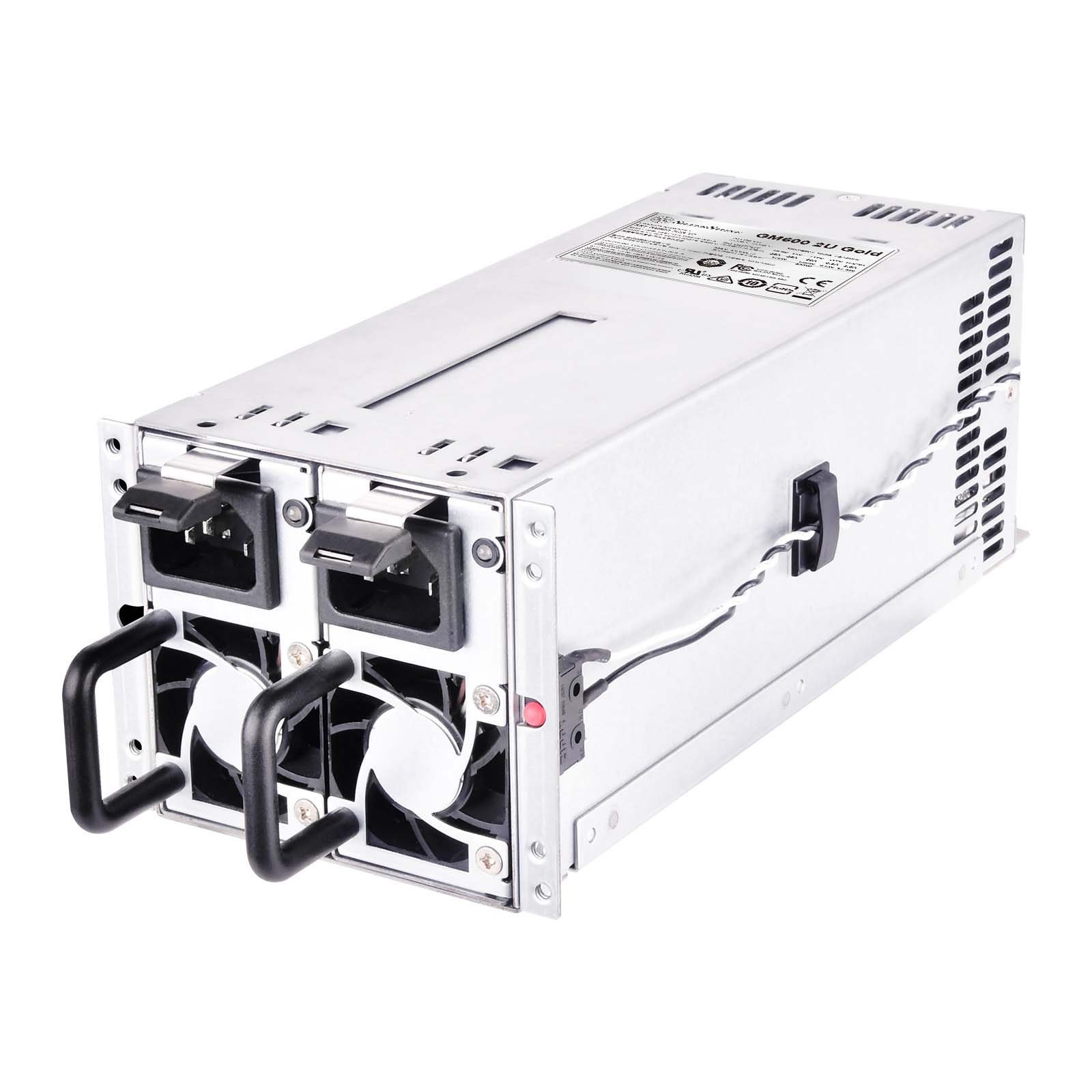

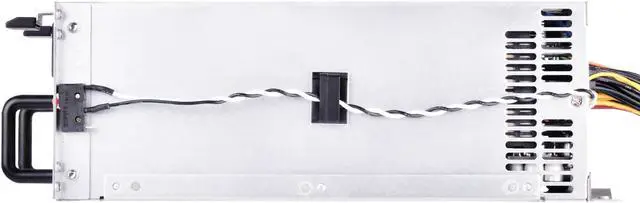

GM600 2U Gold
Cybenetics Gold 600W 2U redundant power supply
- 600+600W 24hour and well working performance at 45 degree C fully continuous power output
- Cybenetics Gold Certified
- Japanese electrolytic capacitors
- 2U redundant form factor with 84mm(W) x 82mm(H) x 217mm(D)
- Active PFC (full range)
- Hot swappable design
- Convenient pull-out handle bars
- Industry-leading reliability
- Supports PMBus 1.2
Product Specifications
| Product No. | SST-GM600-2UG V2 |
|---|---|
| Color | Silver |
| Power density | 803W per liter |
| Combined +12V | 600W |
| Input Frequency Range | 47Hz ~ 63Hz |
| Efficiency | Less than equal to 87% & <89% overall efficiency with single modular power supply |
| Operating temperature | 0°C ~ 45°C |
| Fan speed | 22,000 RPM |
| Model (safety certification) | d |
|---|---|
| Max. DC Output | 600W |
| Combined +3.3V & +5V | 170W |
| Input Voltage | 90 ~ 264 Vrms |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | >100,000 hours |
| Cooling System | 40mm PWM fans |
| Noise Level | 62.5 dBA maximum |
Load Range
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max.(Amps) | 25A | 25A | 50A | 3.5A | 0.8A |
| Min.(Amps) | 1.0A | 1.0A | 1.0A | 0.1A | 0A |
| Range (%) | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
LED indicator
| Power Supply Condition | Power System Status | Module Status |
|---|---|---|
| No AC power to all PSU | OFF | |
| AC present / only standby output on | Red | |
| Power supply DC output ON and OK | Green | |
| Power supply failure | Red |

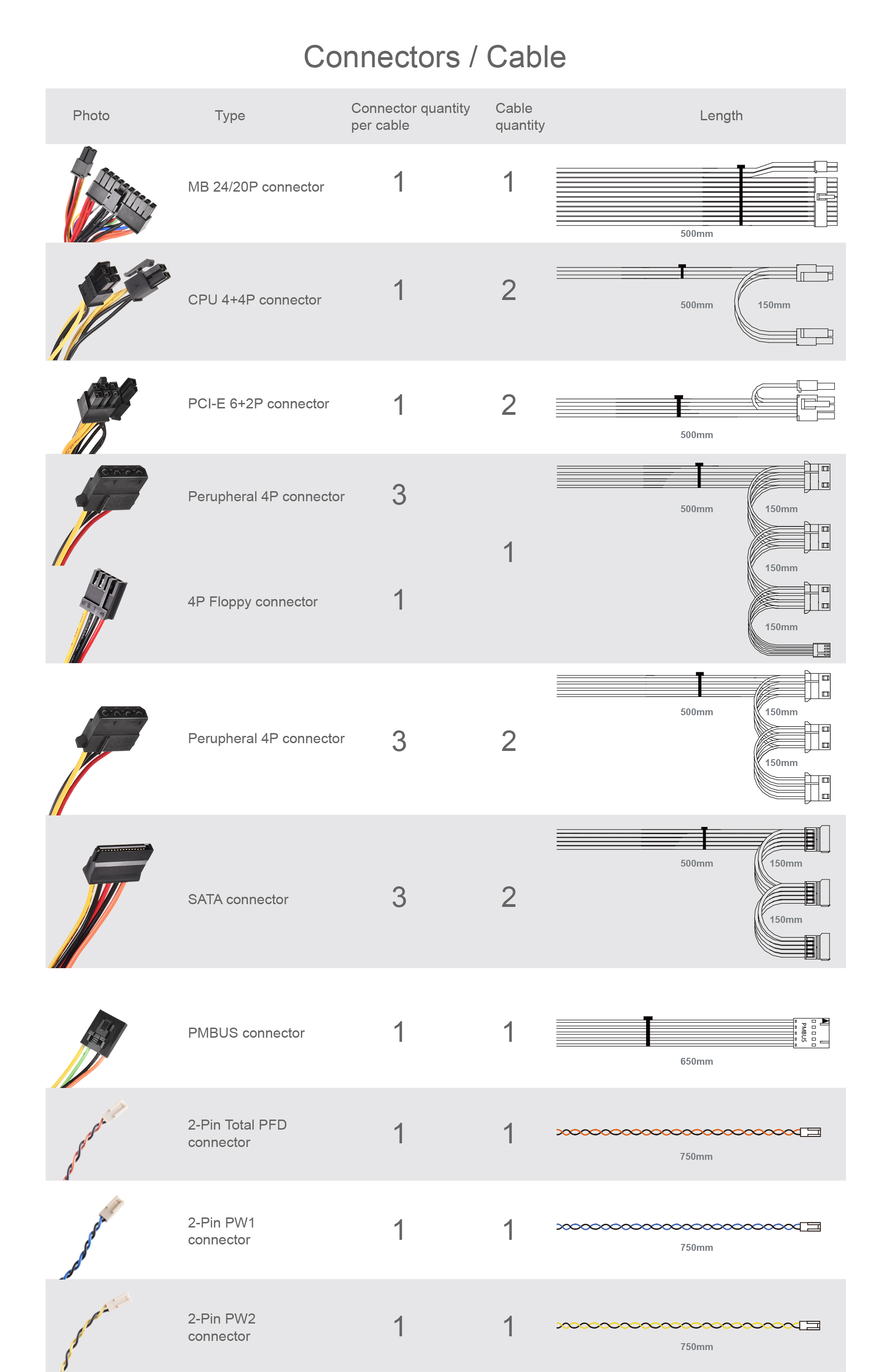

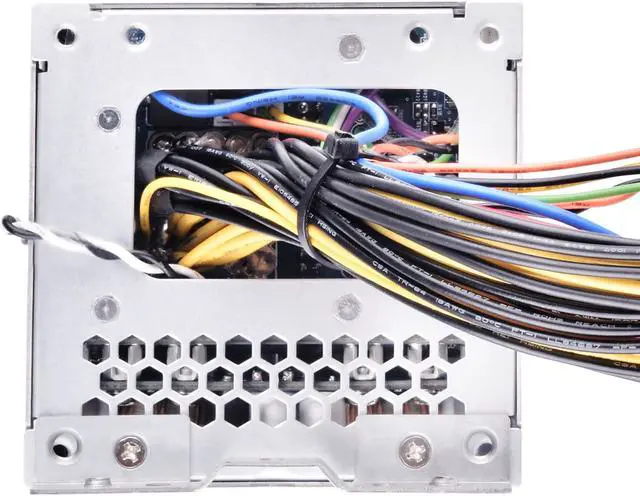

Connectors
- 1 x 24 / 20-Pin motherboard connector
- 2 x 8 / 4-Pin EPS / ATX 12V connectors
- 2 x 8 / 6-Pin PCIe connectors
- 6 x SATA connectors
- 9 x 4-Pin Peripheral connectors
- 1 x 4-Pin Floppy connector
- 1 x 2-Pin TTL connector
- 1 x 2-Pin PW1 connector
- 1 x 2-Pin PW2 connector
- 1 x PM Bus connector
Dimension
- 4.02" (W) x 3.23" (H) x 9.09" (D) (Housing with bracket, without handle)
- 3.31" (W) x 3.23" (H) x 8.54" (D) (Housing without bracket)
- 3.07" (W) x 1.54" (H) x 7.48" (D) (Module only without handle)
