Atmel AT AVRISP AVR ISP mkII In-System Programmer ATAVRISP2 AVRISPmkII compliant

USB AVRISP XPII

• AVR ISP Programmer, compatible with AT AVRISP mkII from ATMEL
• A professional In-System Programmer. Supports all AVR devices with ISP or PDI interface, including XMEGA
• Supports AVR Studio 5

Features

• Supports all AVR devices with ISP or PDI interface, and certain 51 Devices
• Programs both Flash and EEPROM
• Supports Fuses and Lock Bit Programming
• Based on AT AVRISP mkII firmware
• Upgradable to Support Future Devices
• Adjustable ISP programming speed up to 8M frequency
• USB 2.0 compliant (full speed, 12Mbps)
• 3 optional cables to target board
• Powered from USB bus, does not require external power supply

AT AVRISP mkII compliant
- Compatible with AT AVR ISP, easy to use, stable and reliable

Based on AT AVRISP mkII firmware
- Identified as AVRISP mkII in AVR
Studio, high speed programming

Upgradable firmware
- Firmware is upgradable to Support Future Devices
- Automatic Upgrade

Supported software
- AVR Studio 5 or WINAVR (GCC) is used as front-end software
- Supports the program files generated by IAR, ICCAVR, CVAVR

Device Support
- USB AVRISP XPII supports all AVR devices with ISP and PDI Interface. Support for new devices will be added with new versions of AVR Studio.
- Supports AT86RF401/AT89S51/AT89S52

Refer to AVR Studio 5, the
following devices are supported: ISP
Mega

Tiny

ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny167 ATtiny2313 ATtiny2313A ATtiny24 ATtiny24A ATtiny25 ATtiny26 ATtiny261 ATtiny261A ATtiny4313 ATtiny43U ATtiny44 ATtiny44A ATtiny45 ATtiny461 ATtiny461A ATtiny48 ATtiny84 ATtiny85 ATtiny861 ATtiny861A ATtiny88

Other

AT90CAN128 AT90CAN32 AT90CAN64 AT90PWM2 AT90PWM216 AT90PWM2B AT90PWM3 AT90PWM316 AT90PWM3B AT90USB1286 AT90USB1287 AT90USB162 AT90USB646 AT90USB647 AT90USB82

PDI
xmega

ATxmega128A1 ATxmega128A1_revD ATxmega128A1U ATxmega128A3 ATxmega128D3 ATxmega16A4 ATxmega16D4 ATxmega192D3 ATxmega256A3 ATxmega256A3B ATxmega256D3 ATxmega32D4 ATxmega64A1 ATxmega64A3 ATxmega64D3

TPI
Tiny

ATtiny10 ATtiny20 ATtiny4 ATtiny40 ATtiny5 ATtiny9

*Supports all the different voltages and speed grade versions of the devices listed in the table above.

Performance
- High speed programs FLASH, EEPROM, Fuses, and Lock Bit
- It takes only 2.5S to program a 12K program file with verification (programming speed was set to 1M while the Max speed could be up to 8M)

Connects to PC
- Uses a USB interface for communication with the front-end software (Probably AVR Studio)
- Using PDIUSBD12, USB 1.1 (USB 2.0 Full Speed) 12Mbits/second
- Each USB AVRISP XPII has a unique ID, a PC could connects to several Devices at the same time

Connects to target board
The USB AVRISP XPII connects to the target board through 2 optional cables. Depending on the existed connector on the target board, the cable has to be changed accordingly.

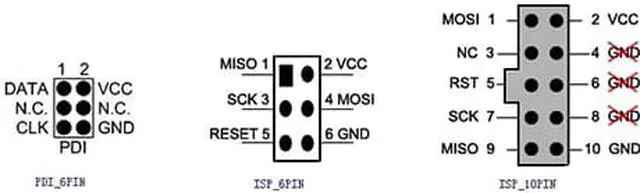

diagram (see image 6 above):

1) For target board with ISP_6PIN standard interface: use the new designed connection cable(it's for 6pin and 10pin 2 in 1) to target board directly.

2) For target board with ISP_10PIN standard interface: use ISP_6PIN to ISP_10PIN adapter cable to target board.

Note:

ISP interface is compatible with ISP_10PIN of ATMEL standard interface, but does not output the PIN4 (GND) of ISP. It corresponds to the PIN4 (VCC) of JTAG. In this way, if your target board is using the standard interfaces that ATMEL specified, it will be connected normally, but after our updated, it
will bring this advantage: if the interfaces of ISP insert into the to the JTAG of MCU by wrong, it will not damage the device(needs JTAG & ISP of target board to do some related processing).
Supports users themselves to define the interfaces of ISP and PDI. You can use the custom wires to connect the target board.

Powered from USB bus
- Draws power from the USB bus, No need for Additional Power Supply
- The target board should be powered from Another Power Supply

Package Contains:

1. USB AVRISP XPII
2. USB Cable

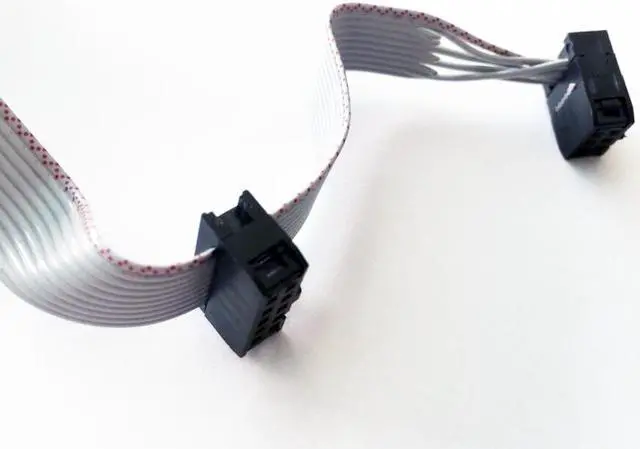

3. 6-pin to 10-pin ISP cable

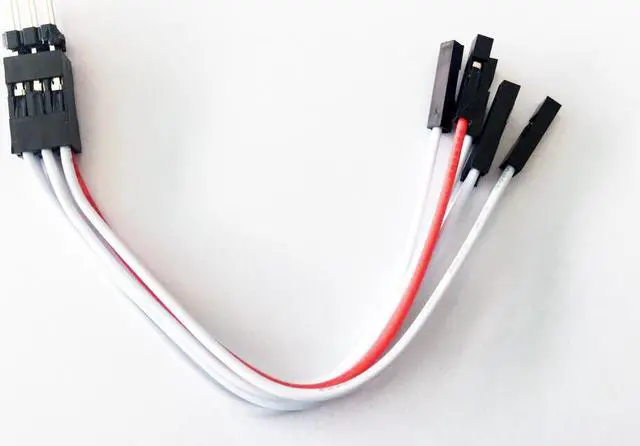

4. 6-wire custom connector cable

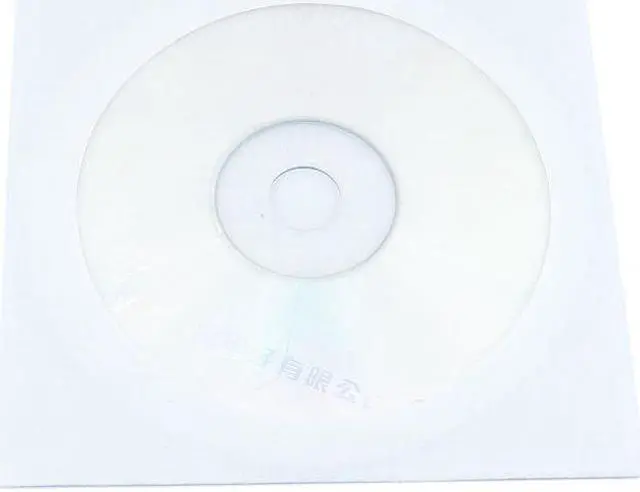

5. User Guide CD
