xiwai PCI-E 4.0 X4 Lane to NVMe PCIe SSD U.3 U3 Kit SFF-8639 Host Adapter for Motherboard PM1735

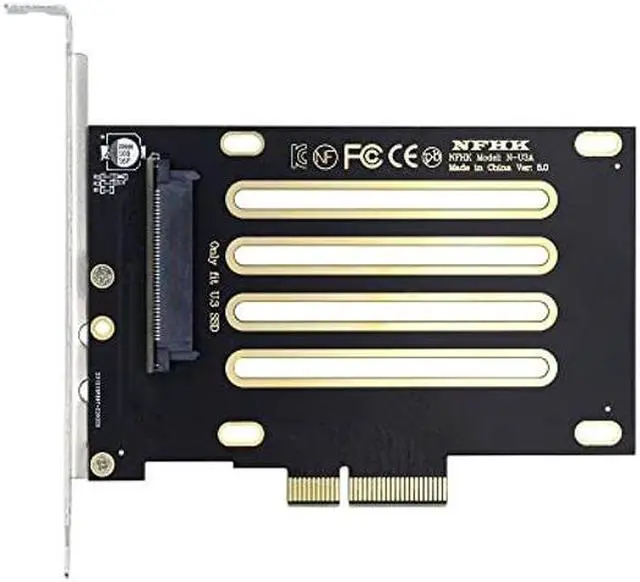

- This PCI Express card expands the PC by one U.3 SFF-8639 interface.It can be connected e.g. the U.3 U3 PM1735 Series SSD.

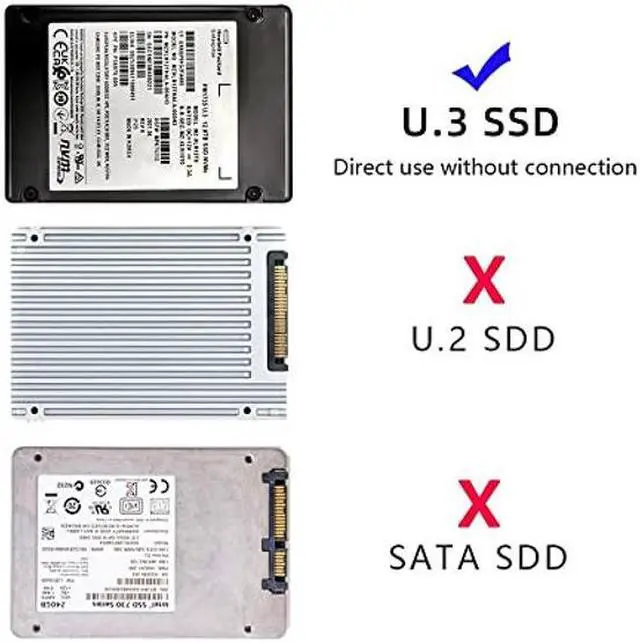

- The card only work for U.3 SSD, not work for U.2 SSD,not work for SATA/SAS SSD.
- The speed and other properties is not changed,only form conversion interface. And does not require any software drivers.
- U.3 is a Tri-mode standard, building on the U.2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U.3 can also support hot-swap between the different drives.
- U.3 drives are still backward compatible with U.2, though--the U.3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U.3 drives can still act as dual-port NVMe drives in supporting systems.
+
+
Overview
Specs
Reviews
xiwai PCI-E 4.0 X4 Lane to NVMe PCIe SSD U. 3 U3 Kit SFF-8639 Host Adapter for Motherboard PM1735

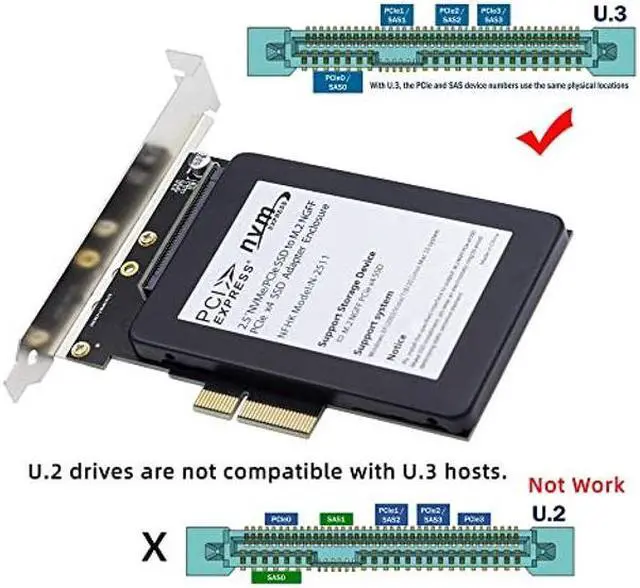

Please note: The card only work for U. 3 SSD, not work for U. 2 SSD, not work for SATA/SAS SSD. U. 2 drives are not compatible with U. 3 hosts.
This PCI Express card expands the PC by one U. 3 SFF-8639 interface. It can be connected e. g. the U. 3 U3 PM1735 Series SSD.
The speed and other properties is not changed, only form conversion interface. Transparent to the operating system and does not require any software drivers.
U. 3 is a Tri-mode standard, building on the U. 2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U. 3 can also support hot-swap between the different drives.
U. 3 drives are still backward compatible with U. 2, though--the U. 3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U. 3 drives can still act as dual-port NVMe drives in supporting systems.
Please note: The card only work for U. 3 SSD, not work for U. 2 SSD, not work for SATA/SAS SSD. U. 2 drives are not compatible with U. 3 hosts.
This PCI Express card expands the PC by one U. 3 SFF-8639 interface. It can be connected e. g. the U. 3 U3 PM1735 Series SSD.
The speed and other properties is not changed, only form conversion interface. Transparent to the operating system and does not require any software drivers.
U. 3 is a Tri-mode standard, building on the U. 2 spec and using the same SFF-8639 connector. It combines SAS, SATA and NVMe support into a single controller. Where firmware support is available, U. 3 can also support hot-swap between the different drives.
U. 3 drives are still backward compatible with U. 2, though--the U. 3 drives determine which host type it is inserted into (by using different combinations of HPT0 and HTP1 being open or ground), and configure the data lanes on power-up. U. 3 drives can still act as dual-port NVMe drives in supporting systems.
