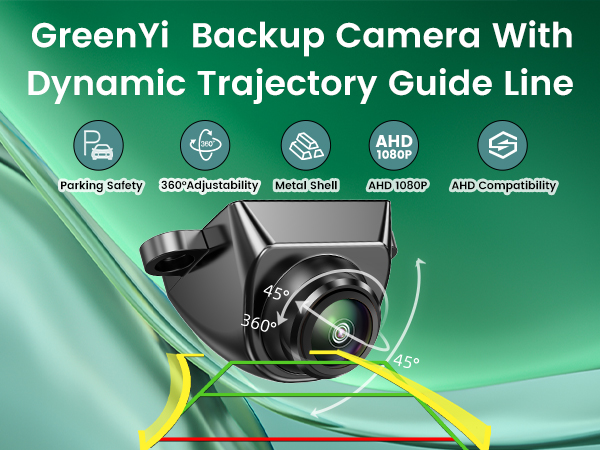

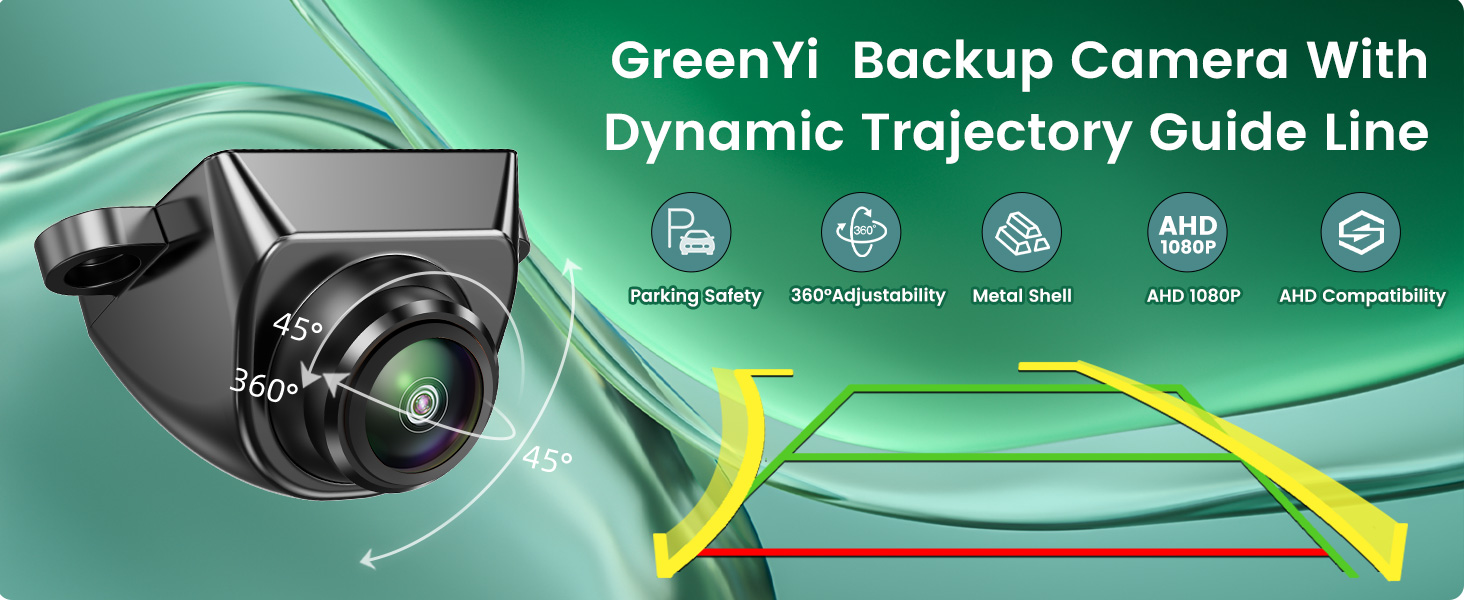

GreenYi AHD 1080P Backup Camera with Dynamic Trajectory Guide Line

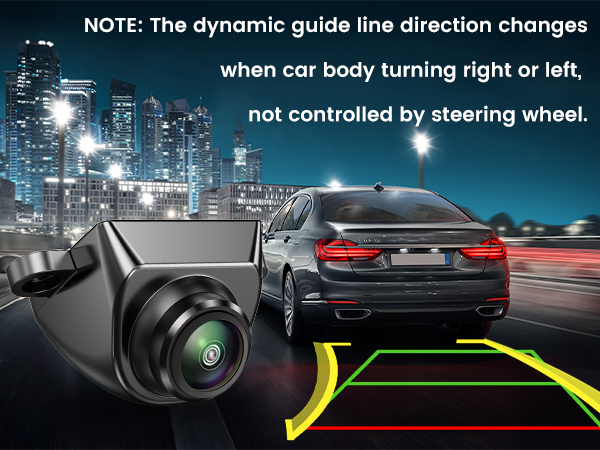

The GreenYi backup camera with intelligent trajectory moving dynamic guide line(guide line direction changes when car turning right or left, not controlled by steering wheel), no need of extra canbus, can only be seen on some new luxury car models in recent years.
Three Holders for Selection(Holder 2 needs to buy separately):
Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.
Holder 2: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM, you can choose the way that suits your needs for mounting.

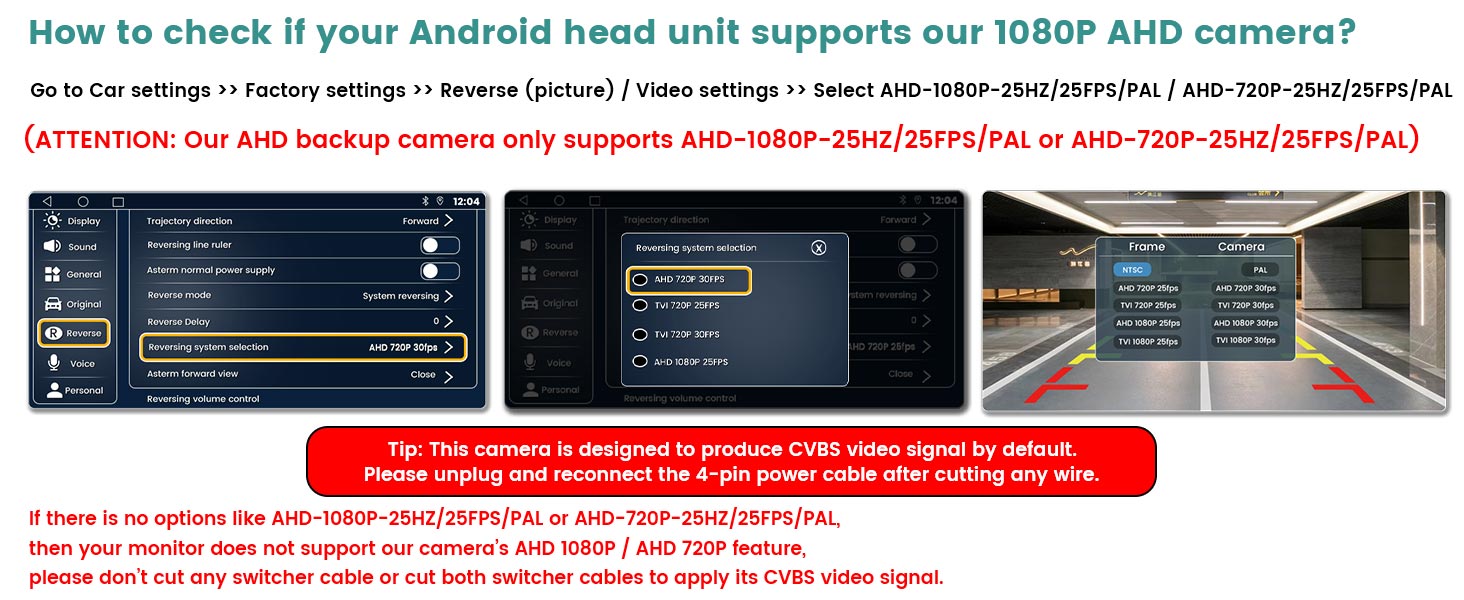

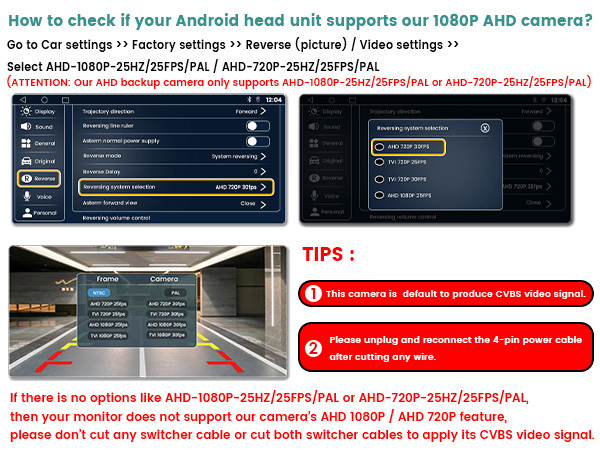

Settings for AHD 1080P
* It produces CVBS video signal by default, please set to CVBS, which is compatible with all monitors.
* Cut the green wire: Generate AHD-1080P-25HZ/25FPS/PAL video signal.
* Cut the white wire:Generate AHD-720P-25HZ/25FPS/PAL video signal.
* Cut both switcher cables: Generate CVBS video signal.
About GreenYi Vehicle Backup Camera:

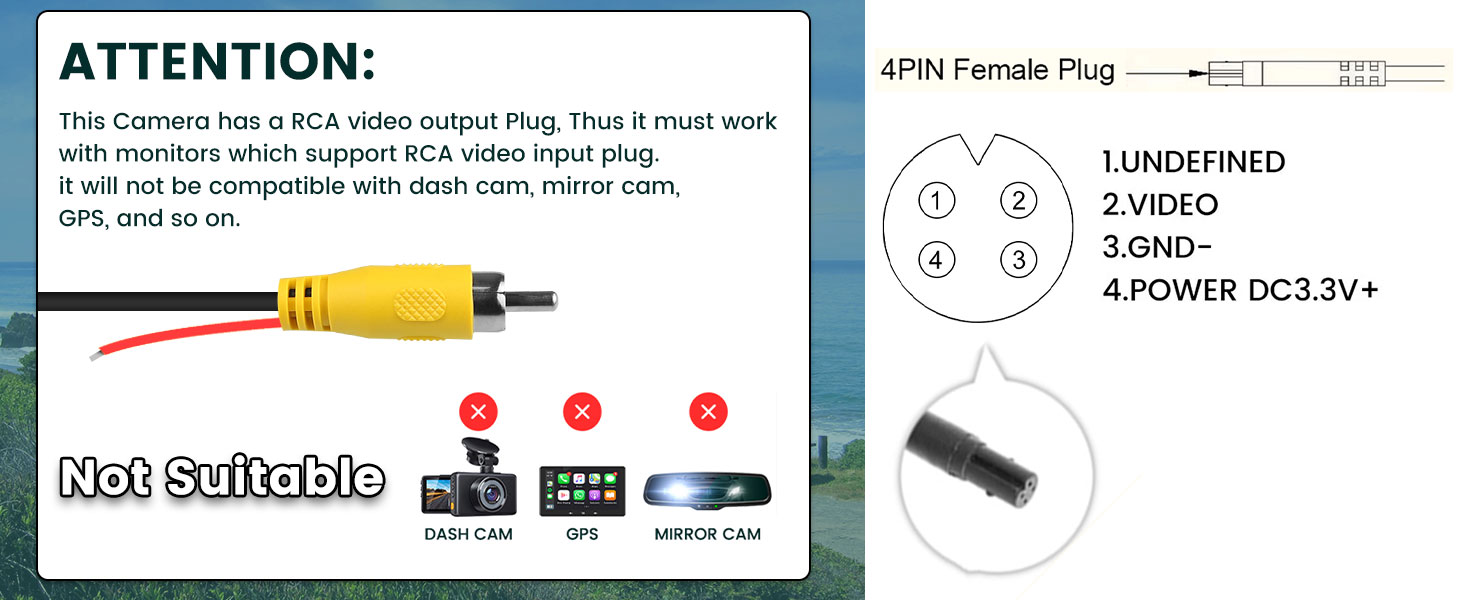

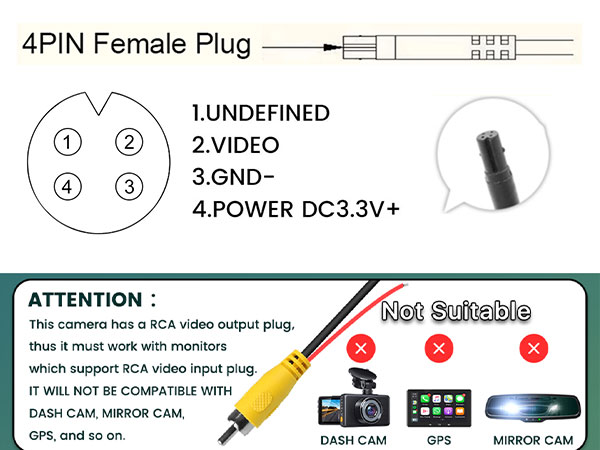

NOTE: All of our 4pin backup cameras can't be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.
* Please test the back up cameras before final installation.
* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable's trigger wire. If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
* Some cheap/old Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.
* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.
* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* Please unplug and reconnect the 4-pin power cable after cutting any wire.
Compromises Other Backup Cameras' Advantages:
 1080P trajectory Camera |  1080P Backup Camera |  1080P Backup Camera |  Backup Camera |  1080P Backup Camera |  Back Camera | |
|---|---|---|---|---|---|---|
Customer Reviews | — | — | — | — | — | — |
Price | — | — | — | — | — | — |
Adjustable Camera Body | Yes | Yes | Yes | Yes | Yes | Yes |
Viewing Angle | 170 Degrees | 170 Degrees / 120 Degrees | 170 Degrees / 120 Degrees | 170 Degrees | 170 Degrees | 170 Degrees |
Video Signal | CVBS to AHD | AHD to CVBS | AHD to CVBS | CVBS to AHD | CVBS to AHD | CVBS |
Support Guideline on / off | NO | Yes | Yes | Yes | Yes | Yes |
Resolution | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1280x720p | 1920x1080p / 1280x720p | 960x720p |
Can be Used as | Reverse Camera | Front / Rear / Side View Cam | Front / Rear / Side View Cam | Front / Rear / Side View Cam | Reverse Camera | Reverse Camera |
GreenYi AHD 1080P Backup Camera with Dynamic Trajectory Guide Line
The GreenYi backup camera with intelligent trajectory moving dynamic guide line(guide line direction changes when car turning right or left, not controlled by steering wheel), no need of extra canbus, can only be seen on some new luxury car models in recent years.
Applying best material , our back up camera can show a wide view angle, and a vivid image.
Driving carefree with GreenYi Cameras.

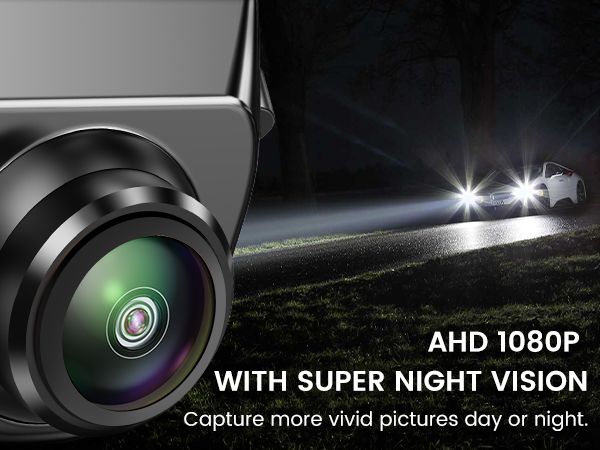

A good performance even when reversing at dark night, high clarity sharp colorful image.
With this 170 view angle camera, you can get a perfect view with all kinds of position installation.
To use this camera, the monitor should has RCA video input, otherwise, it is not compatible.
Three Holders for Selection(Holder 2 needs to buy separately):
Holder 1: The backup camera comes with this metal holder installed well by default. You can install it with horizontal or vertical(upside down) mounting.
Holder 2: This metal holder is for flush hidden mounting, need to drill a hole. Need to buy separately with ASIN: B0BLG78TTM, you can choose the way that suits your needs for mounting.
Settings for AHD 1080P
* It produces CVBS video signal by default, please set to CVBS, which is compatible with all monitors.
* Cut the green wire: Generate AHD-1080P-25HZ/25FPS/PAL video signal.
* Cut the white wire:Generate AHD-720P-25HZ/25FPS/PAL video signal.
* Cut both switcher cables: Generate CVBS video signal.
About GreenYi Vehicle Backup Camera:
NOTE: All of our 4pin backup cameras can't be connected directly with any other monitors(no matter DVR or dashcam or whatever) which is not compatible with RCA video input.
* Please test the back up cameras before final installation.
* There is a pink color wire on your head unit usually, please connect it with the 26FT video cable's trigger wire. If your head unit doesn't have reversing trigger wire, then no need to use the trigger wires on the video cable.
* Some cheap/old Android head units may also have the setting for AHD video signal , but they can't display any AHD image, because they don't support AHD at all. If so, then you can only apply CVBS video signal, hope you understand.
* Before you routing, if there is no image on the screen, other than check the camera, please check display settings as well. You can use other device with RCA connector, such as TV to check if the camera works.
* If you connect the backup camera for pickup to a FACTORY RADIO, please order a suited Harness & Programmer separately, because different RADIO needs different Harness & Programmer.
* Please unplug and reconnect the 4-pin power cable after cutting any wire.
Compromises Other Backup Cameras' Advantages:
1080P trajectory Camera | 1080P Backup Camera | 1080P Backup Camera | Backup Camera | 1080P Backup Camera | Back Camera |
|---|---|---|---|---|---|
| Customer Reviews | |||||
| — | — | — | — | — | — |
| Price | |||||
| — | — | — | — | — | — |
| Adjustable Camera Body | |||||
| Yes | Yes | Yes | Yes | Yes | Yes |
| Viewing Angle | |||||
| 170 Degrees | 170 Degrees / 120 Degrees | 170 Degrees / 120 Degrees | 170 Degrees | 170 Degrees | 170 Degrees |
| Video Signal | |||||
| CVBS to AHD | AHD to CVBS | AHD to CVBS | CVBS to AHD | CVBS to AHD | CVBS |
| Support Guideline on / off | |||||
| NO | Yes | Yes | Yes | Yes | Yes |
| Resolution | |||||
| 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1920x1080p / 1280x720p | 1280x720p | 1920x1080p / 1280x720p | 960x720p |
| Can be Used as | |||||
| Reverse Camera | Front / Rear / Side View Cam | Front / Rear / Side View Cam | Front / Rear / Side View Cam | Reverse Camera | Reverse Camera |
