1080P USB 3.0 HDMI Capture Card Video Recording Box for Game DVD Camcorder Camera Live Streaming Video Conference Online Teaching Portable USB HD Video Capture Card eokCXOY

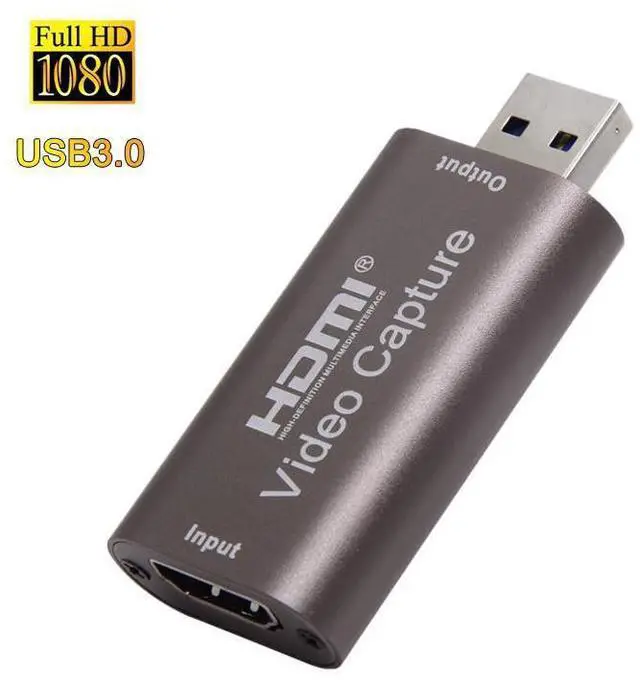

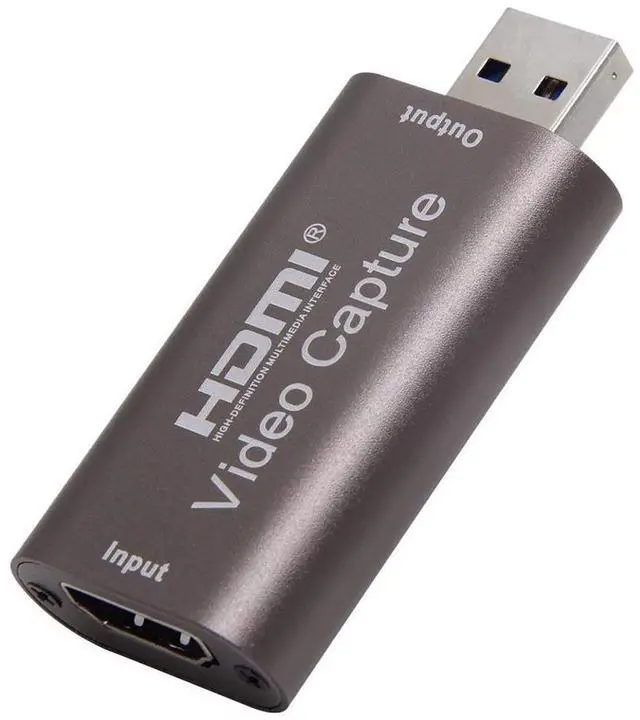

Portable Mini USB 3.0 HDMI Capture Card Video Recording Box for Game DVD Camcorder Camera Live Streaming

Introduction:

This USB 3.0 capture card can capture HDMI audio and video. Audio and video signals can be transmitted to a computer or smartphone for preview and storage. Suitable for high-definition acquisition, teaching recording, medical imaging, etc.

KEY_TAB

Feature:

Support the highest input resolution up 3840 x 2160 at 60Hz.

Support the highest output resolution up 1920 x 1080 at 60Hz.

Support 8/10/12 bit color depth.

When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution).

Support most acquisition software, such as VLC, OBS, Amcap, etc.

Supports for Windows, Android and MacOS.

Conforms to the USB video UVC specification.

Conforms to the USB audio UAC specification.

No need for external power supply, small size and easy to carry.

Specification:

HDMI Input Resolution: Maximum 3840 x 2160 at 60Hz

Video Input Format: 8/10/12 Bit Color Depth

Video Output Mode: YUV, JPEG

Video Output Resolution: Maximum 1920 x 1080 at 60Hz

Support Audio Format: LPCM

Input Transmission Length: =15m, AWG26 HDMI Standard Cable

Maximum Working Current: DC 0.4A/5V

Operating Temperature Range: (-10 - +55?)

Product Size: 64 X 28 X 13mm/2.52 X 1.1 X 0.51"

Product Weight: 50g

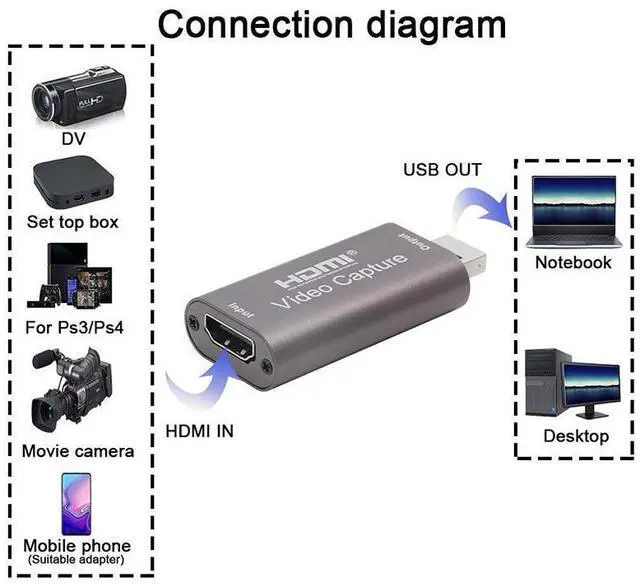

Connection Operation:

1. Connect the HDMI signal source and the HDMI input port of the USB capture card via 1 HDMI cable.

2. Plug the USB male of the USB capture card into the USB port of the computer.

3. Recording Operation Steps (OBS): Open the Software - Add New Source - Select "Video Capture Device" - Set the Screen Size - Select "Studio Mode" (Dual Window) - Click "Start Recording"

Note:

1. Computer hardware configuration requirements CPU: PC i5-3400 or above; NB i7-3537U 2.0GHZ or above Graphics card: PC NVIDIA GT630 or above; NC NVIDIA GT35M or above Storage: 4G RAM

2. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

3. Please allow 1-3mm measuring deviation due to manual measurement.
