4K USB Video Capture Card USB 2.0 HDMI Video Grabber Record adapter with Loop Audio for Record via DSLR Camcorder Camera PC Youtube OBS Live Streaming Broadcast

4K USB Video Capture Card USB 2.0 HDMI Video Grabber Record adapter with Loop Audio for Record via DSLR Camcorder Camera PC Youtube OBS Live Streaming Broadcast



Description:KEY_TAB KEY_TAB

Nsendato 4K HDMI to USB2.0 Video Capture Dongle,it is easy to carry,have a superior performance,superior compatibility,simple installation and many other features,It can capture one HDMI 1080p60 input and output signal; compatible with Windows,Linux,Macos X and USB interface,Compatible with many USB chipset (Intel,Renesas,ASMedia,Fresco Logic),Compatible with USB and preview, record, capture, live broadcast through a number of free third-party software via USBKEY_TAB interface;The HDMI video capture meets UVC and UAC standard.

KEY_TAB

Features:

1. It can capture one single channel HD HDMI video signals

2. The capture resolution up to 1080P/30Hz, input resolution up to 4K/30Hz

3. Support MJPEG

4. Support UAC&UVC,support 48 KHz PCM audio

5. It need to install a driver with the Windows7 system

6. It is compatible with Windows 7,Windows8,Windows8.1,Windows10 or later, Linux OS, Mac OS operating systems.

7. USB2.0, 60MB / s throughput max

8. It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

9. It can automatically detect the input audio formats and swift it to 48KHz PCM audio.

10. Two capture can be used on one PC

11. The firmware can be updated.

12. Support for all thrid-party player software compatible with UVC and UAC protocols.KEY_TAB

KEY_TAB

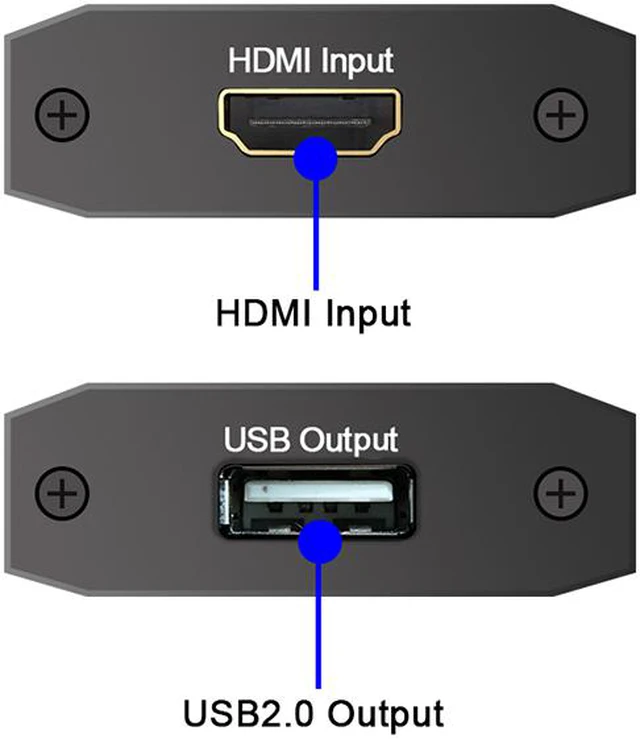

Input interface:1 HDMI

Output interface:USB2.0, 40MB/s throughput MAX

HDMI input:4K/30,25, 24; 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P,1280x1024, 1280x960, 1024x768, 800x600, 640x480

HDMI audio input:1 LPCM audio signal

KEY_TAB

Standards:

HDMI input formats:It meets the HDMI 1.4 standard, and supports 225 MHZ 4K/30Hz 12bit deep color

Output Formats Preview resolution :1920x1080 Frame rate 30fps

Video Sampling Rate:HDMI 165MHz

Audio and video capture:It meets the standards of UVC (USB video class) and UAC(USB audio class)

Output color space:YUV, RGB

Operating system:for Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS

Software compatibility:Adobe Flash Media Live Encoder (Windows, OS X) Real Producer Plus (Windows) VLC (Windows, OS X, Linux) QuickTime Broadcaster (OS X)QuickTime Player (OS X)and etc.OBS.PotPlayer

Upgrade:The firmware can be upgraded

KEY_TAB

You'll receive:

1 x Nsendato 4K HDMI to USB2.0 Capture CardKEY_TAB

1 x USB Cable

1 x User Manua
