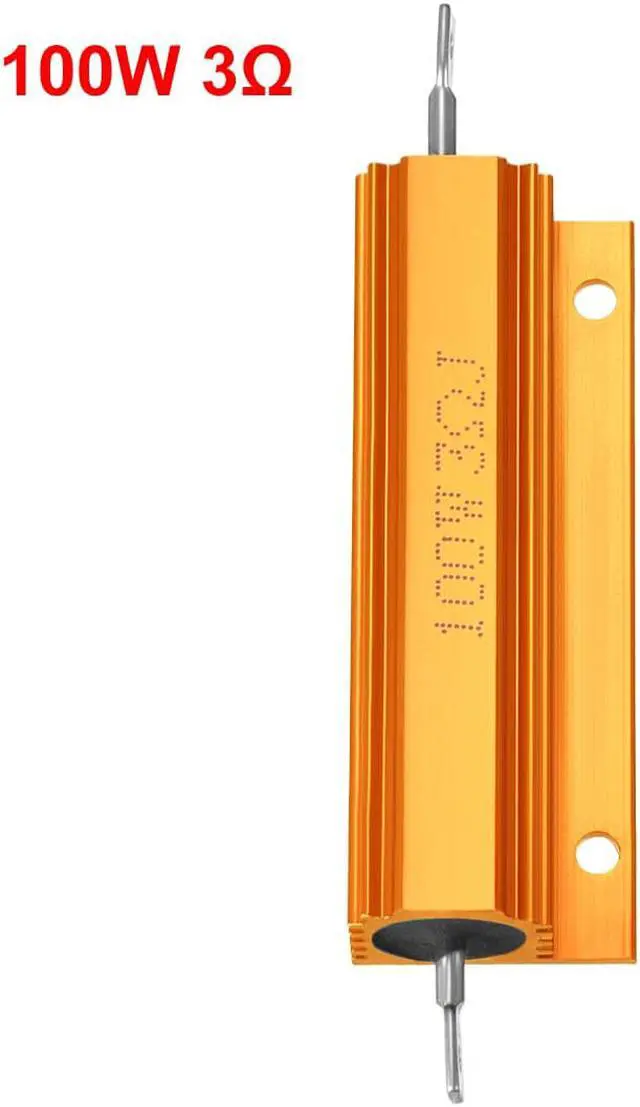

Aluminum Case Resistor 100W 3 Ohm Wirewound Yellow for LED Replacement Converter 100W 3RJ 2Pcs

Description:

1. 100 Wattage and 3 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.

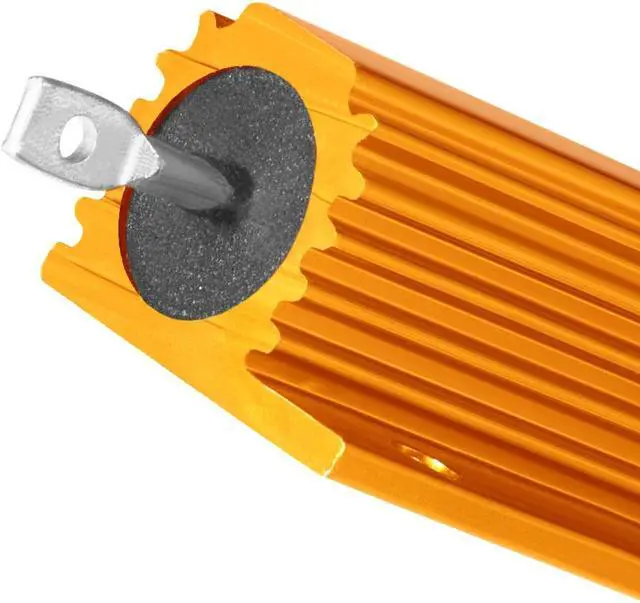

2. Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.

3. This 100W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.

4. Board length 2.32 inches(59mm) and two rods with 2mm hole for a soldering connection. Dia. 3.2mm antisymmetric anchoring hole for holding.

5. Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc.

KEY_TAB

Specification:

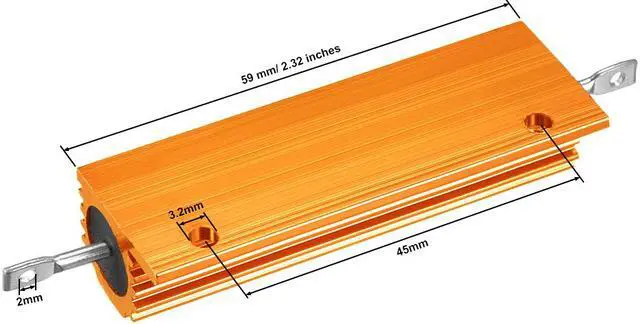

Main Body Length: 59 mm/ 2.32 inches

Power: 100 Wattage

Rated Resistance: 3 R

Tolerances: 5%(J)

Connection Type: Rod terminals with hole

Rod Length: 12mm/0.47 inches

Screw Hole: 3.2mm

Distance between screw hole: 45mm

Weight: 60g/2.1 Oz

Materials: Nickel alloys Wire Wound Resistor with Aluminum Case

Color: Yellow

KEY_TAB

Package Content:

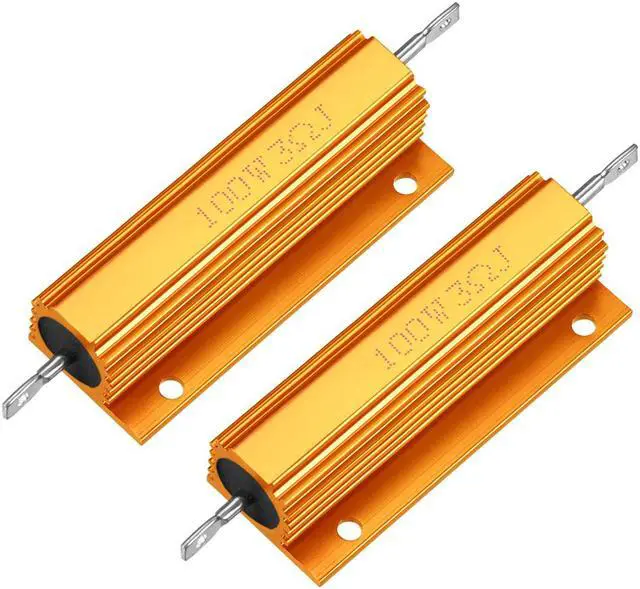

2x 100W 3R Aluminum Housed Resistor
