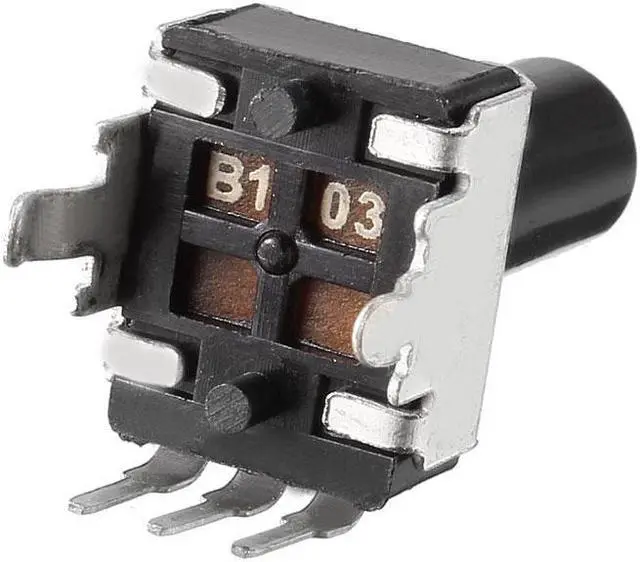

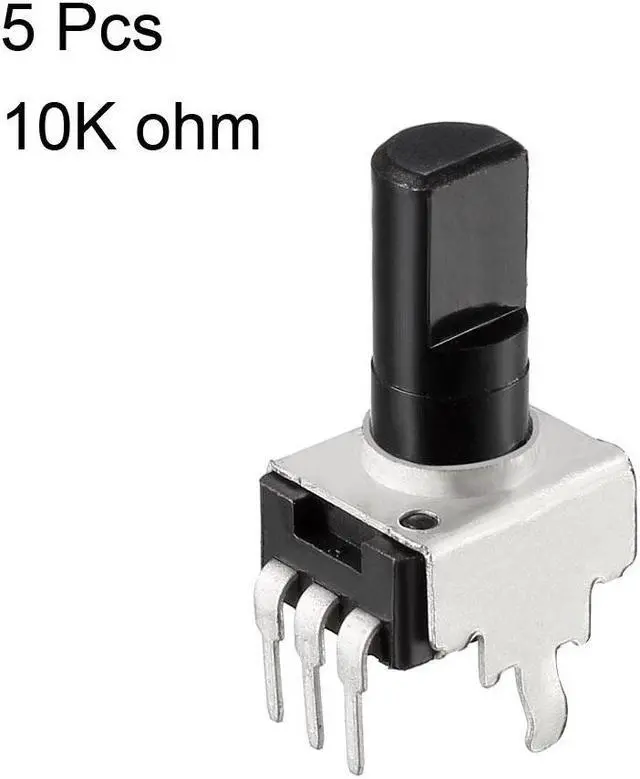

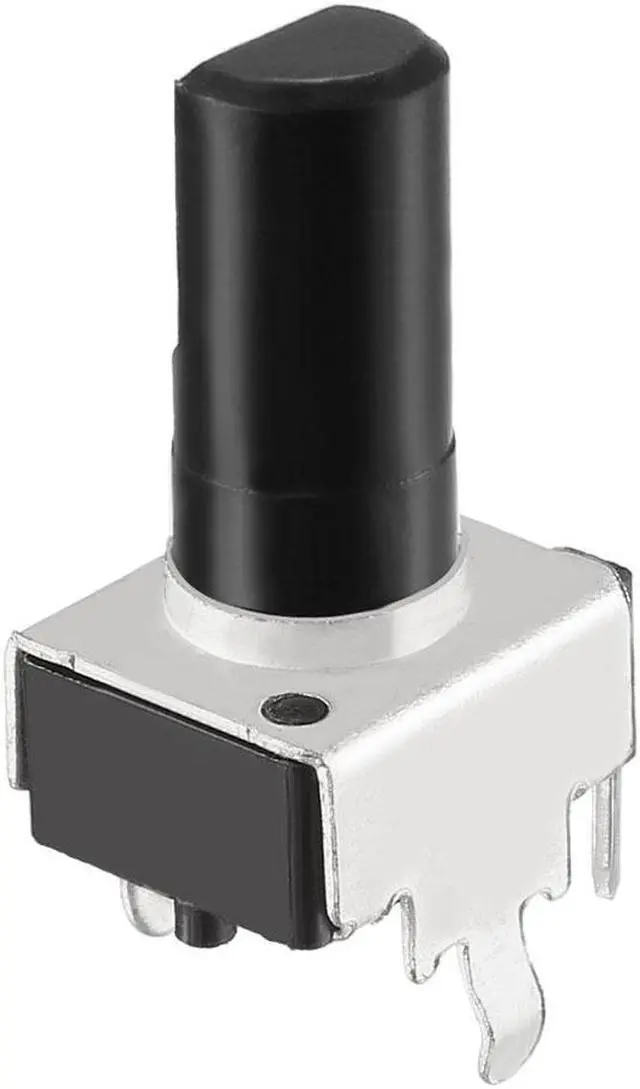

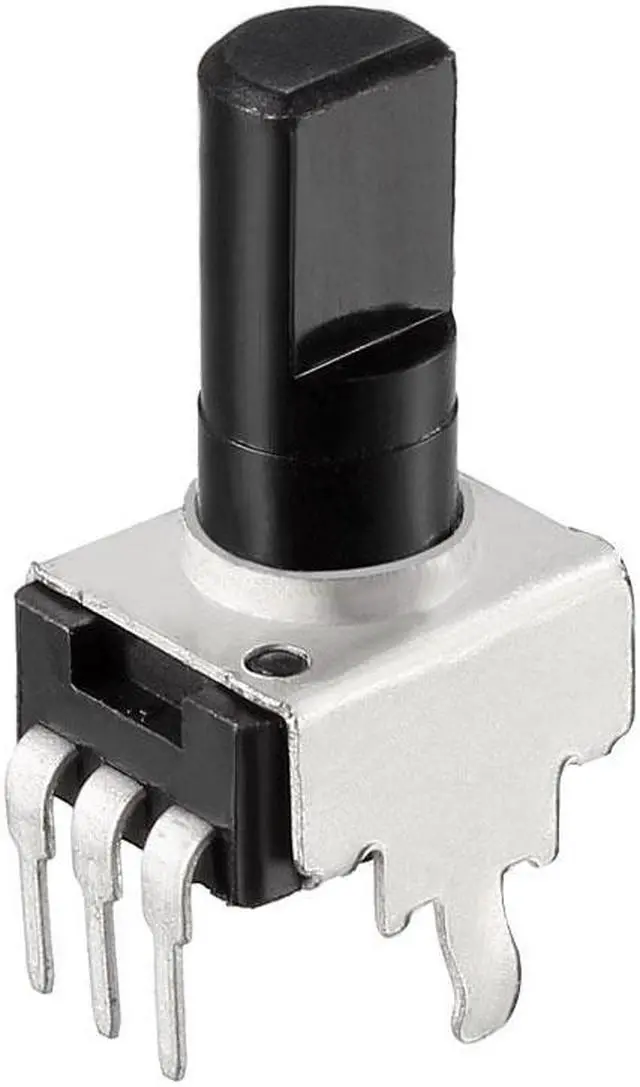

Carbon Film Potentiometer, 10K Ohm Variable Resistors Single Turn Rotary Half Shaft Design 5pcs
- 1. Model: 0932, 10K ohm, Tolerance: +/-20%, 3 Terminals, Single Linear, Suits Most Standard Knobs.this item do not include Knobs).3. Knurled shaft with split design for push-on knob.
+
+
Overview
Specs
Reviews
Description:
1.Single Linear, Suits Most Standard Knobs.this item do not include Knobs)
2.Top adjustment type and Half shaft design for easy operate in daily use.
3. Main used to control electrical devices such as volume controls on audio equipment.
4.Half shaft design with split design for push-on knob.
KEY_TAB
Specification:
Product Name: Carbon Film Potentiometer
Model: 0932
Material: Carbon film Metal
Resistance Value: 10K ohm
Tolerance: +/-20%
Turn Number: Single Turn
Terminals Number: 3
Features: Round Shaft
Total Hight: 24mm
Base Szie : 12x10x5( Lx Wx H)
Shaft Diameter: 6mm/0.24 inch
Shaft Length: 12mm
KEY_TAB
Package Content:
5 x Carbon Film Potentiometer
