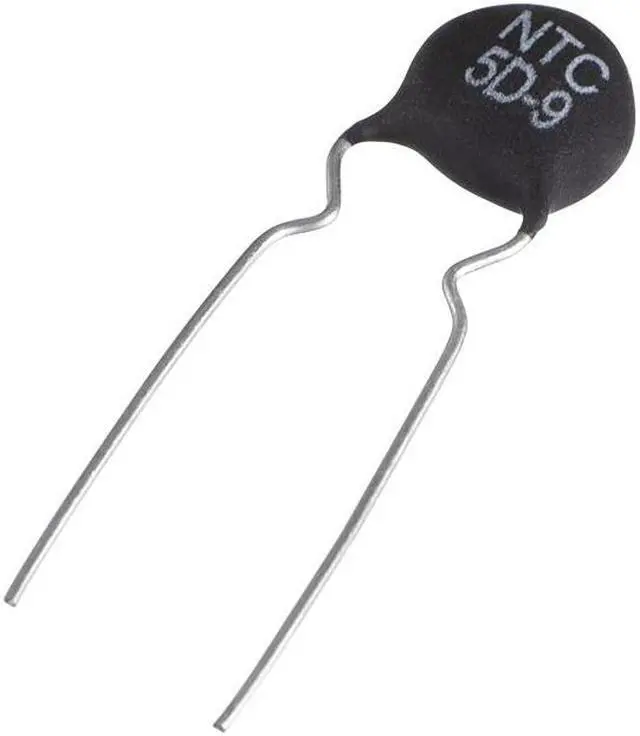

NTC Thermistor Resistors 5D-9 3A 5 Ohm Inrush Current Limiter Temperature Sensors Pack of 20

Description:

* The NTC thermistors are reliable and stable, with wide range of over-current control.

* With small size and large power, they have strong capacity to inhibit surge current.

* Large material constant (B value), with small residual resistance.

* Thermal shock resistance, with wide range of operating temperature.

* Used for controlling the inrush current of motor, heaters, bulb voltage Stabilizer, electronic energy-saving lamp, electronic Rectifier and other electronic installations.

KEY_TAB

Note: The thermistor cannot be used in parallel in the circuit.

KEY_TAB

Specification:

* Product Name: NTC Thermistor

* Color: Black, Silver Tone

* Material: Ceramic, Metal

* Model: 5D-9

* Zero Power Resistance @25C: 5 Ohm

* B Value: >/=2800

* Thermal Recovery Time Coefficient: 35s

* Thermal Dissipation Constant: 11mw/C

* Operating Temperature: -50-200C

* Max Steady State Current: 3A

* 25C Insulation Max Resistance:

* Lead Type: Radial Direction

* Lead Shape: I

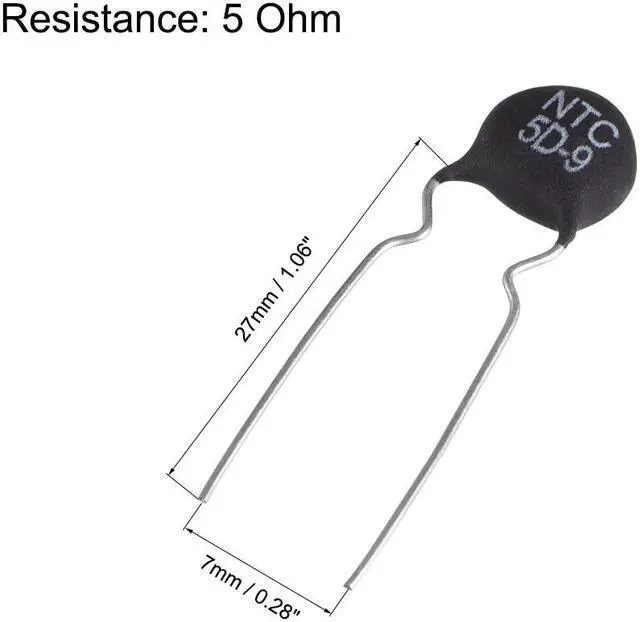

* Pin Pitch: 7mm / 0.28inch

* Lead Size(Approx.): 0.7 x 27mm / 0.03 x 1.06inch (D*L)

* Body Size(Approx.): 8.6 x 3.8mm / 0.34 x 0.15inch (D*T)

KEY_TAB

Package Content:

* 20 x NTC Thermistors
