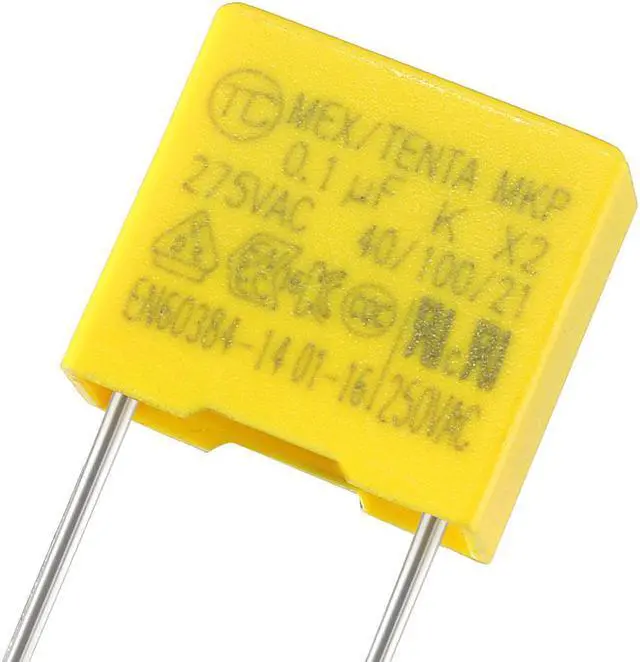

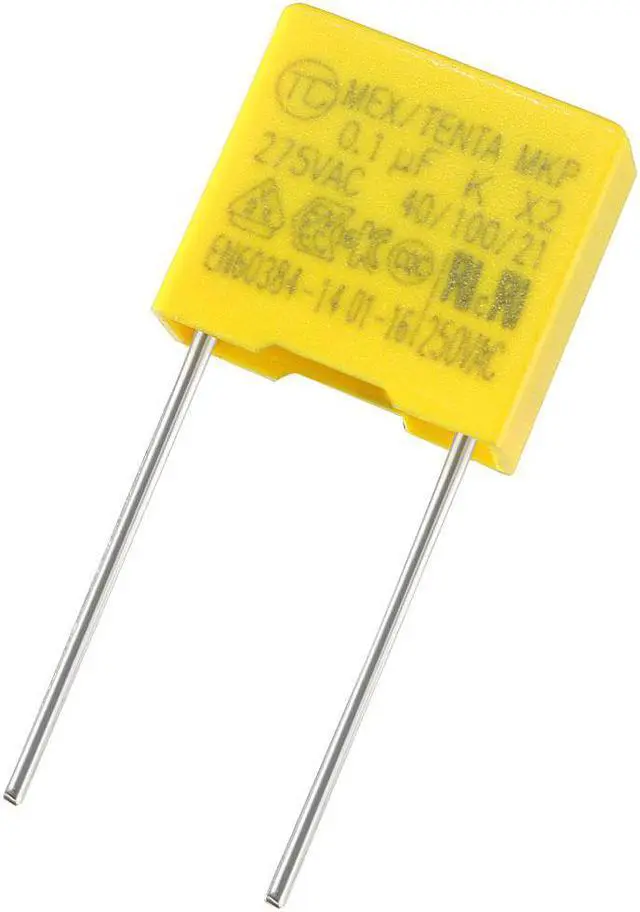

Polypropylene Film Safety Capacitors 0.1uF 275VAC X2 MKP 10 Pcs

Description:

* X2 Series safety capacitor features dip mounting type and compact size.

* Anti-electromagnetic interference, it can withstand over-pressure shock, and has excellent flame retardant and moisture-proof ability.

* Small size is suitable for high-density components of the circuit board; low frequency loss, and it has long service life.

* It applies to jumper the power line, EMI filters, switching power supply and other power supply with security requirements.

* Widely used in the bypass of various electronic and electrical products, DC blocking, filtering, coupling and resonance.

KEY_TAB

Specification:

* Product Name: Safety Capacitor

* Model: 275V104P10

* Color: Yellow

* Material: Polypropylene, Metal

* Shape: Rectangle

* Withstand Voltage: 275V AC

* Rated Voltage: 250V AC

* Capacitance: 0.1uF

* Tolerance: K(±10%)

* Temperature Characteristic: 40/100/21

* Lead Type: Radial Direction

* Lead Shape: S

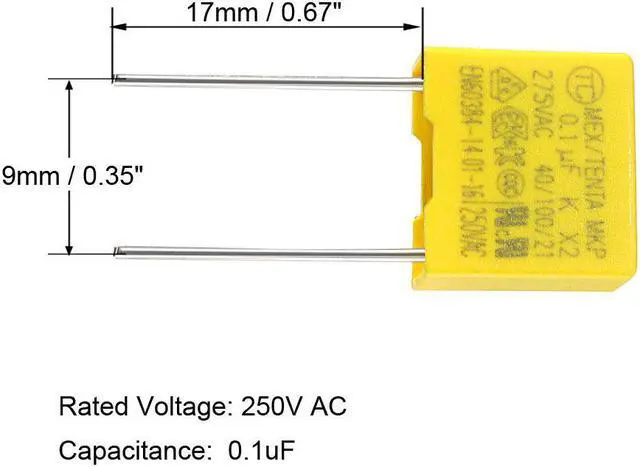

* Lead Size (Approx.): 0.6 x 17mm / 0.02 x 0.67inch

* Pin Pitch (Approx.): 9mm / 0.35inch

* Body Size (Approx.): 12.8 x 11.8 x 5.8mm / 0.5 x 0.46 x 0.23inch

KEY_TAB

Package Content:

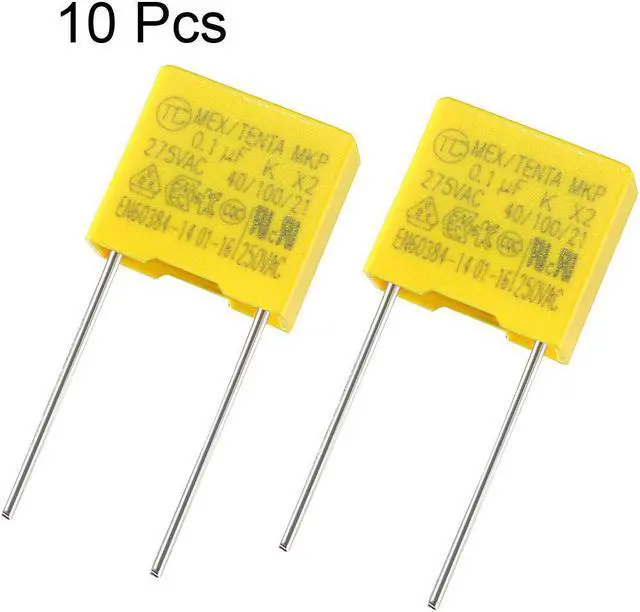

* 10 x Safety Capacitors
