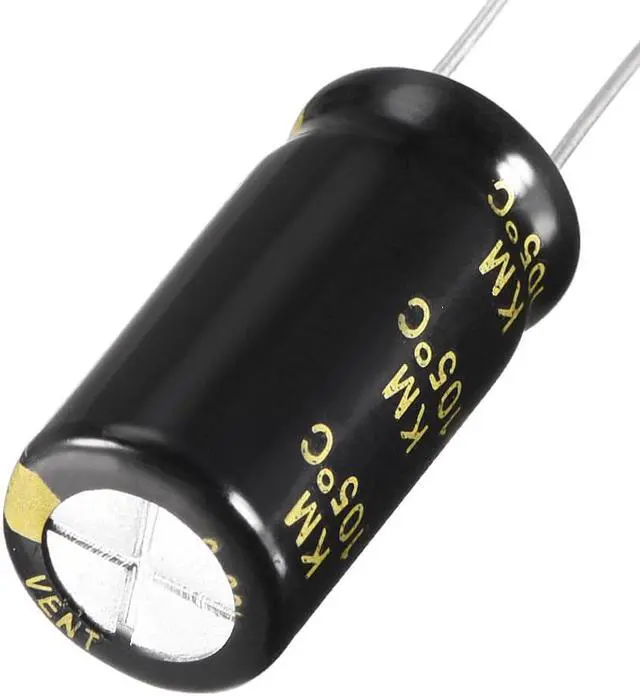

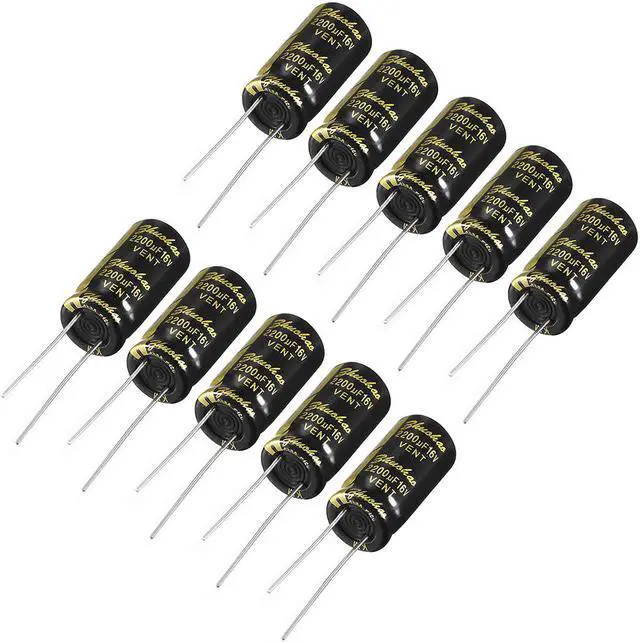

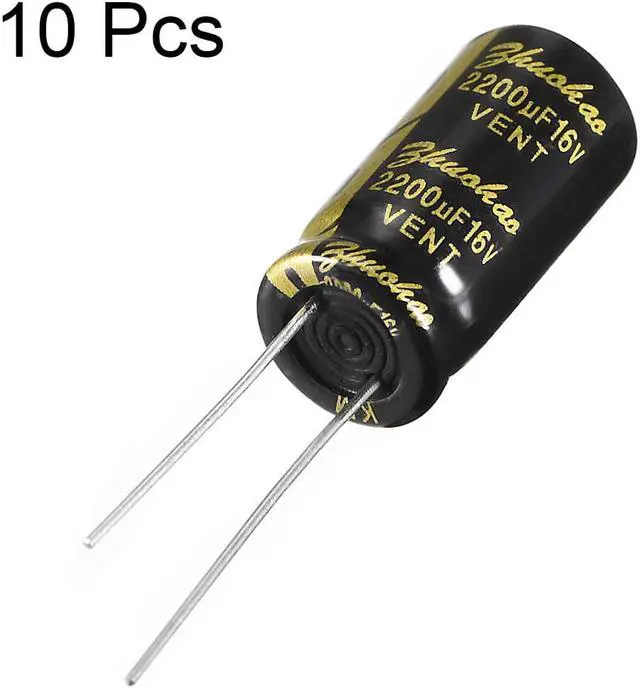

Aluminum Radial Electrolytic Capacitor 2200uF 16V Life 10 x 20 mm Black 10pcs

Features:

Standard General Purpose.

Radial lead, aluminum electrolytic capacitor.

The longer lead is positive electrode and the shorter one is negative electrode.

Notice:

1.Capacitance: Don't change the capacitance.

2.Voltage: You can go higher, but don't go lower.

3.Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.

Product Name : Aluminum Electrolytic Capacitor

Type: Radial Lead

Feature: For Standard

Category Temperature Range: -40 ~ + 105 Celsius(6.3~100V)

Rated Voltage: 16V ;

Capacitance: 2200uF;

Capacitance Tolerance: ±20%(120Hz,+20 Celsius);

Standard Load Life: 2000hrs

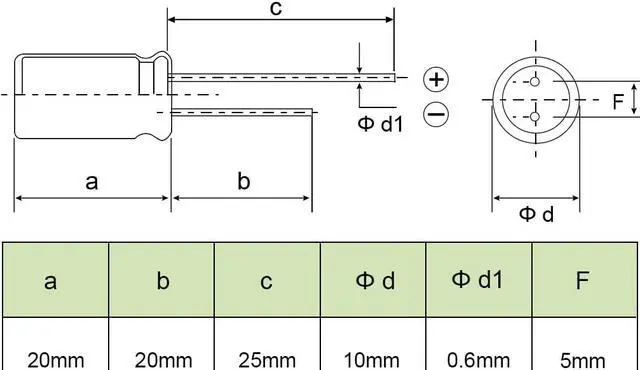

Body Size: 10 x 20mm/0.39" x 0.79"(D*L);

Lead Length: 25mm/0.98", 20mm/0.79";

Lead Pitch : 5mm/0.2"
