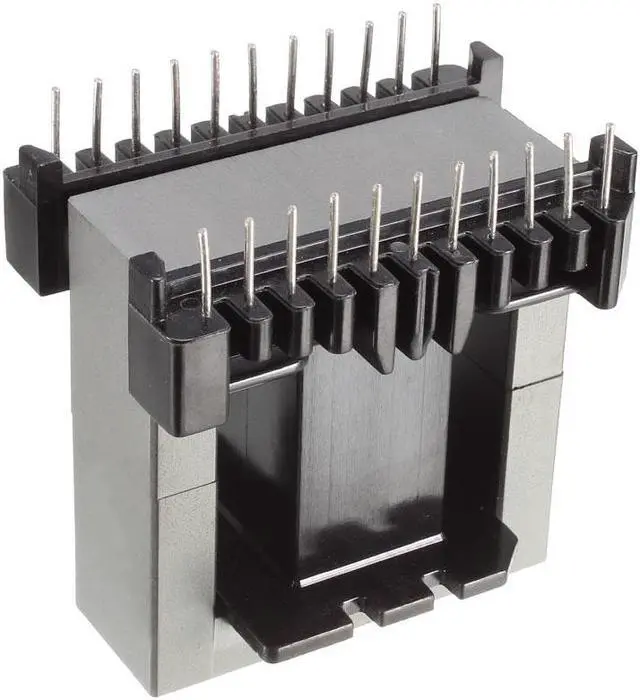

EE55B 11 with 11pin Transformer Bobbin PC40 Ferrite Core Vertical 2 Ferrite Halves and 1 Bobbin
- Product Name: EE55B Vertical Ferrite Core Transformer Bobbin 11+11Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE55B
Pin spacing: 5mm/0.2''
Row spacing: 35mm/1.4"
Ferrite core Size: 55.5 x 20.5 x 28mm/2.2" x 0.8" x 1.1"(L*W*T)
Bobbin size: 61 x 42 x 60mm/2.4" x 1.6" x 2.4"(L*W*H)
Winding frame size: 32 x 20 x 24mm/1.2" x 0.8" x 0.9"(L*W*T)

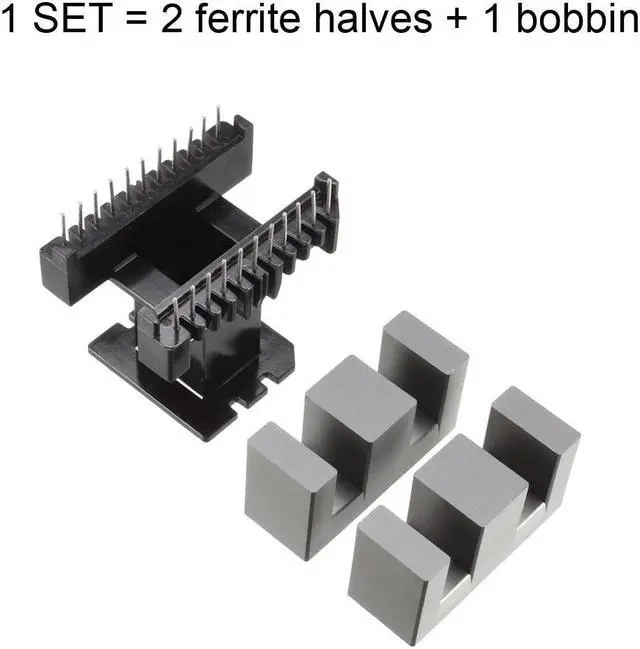

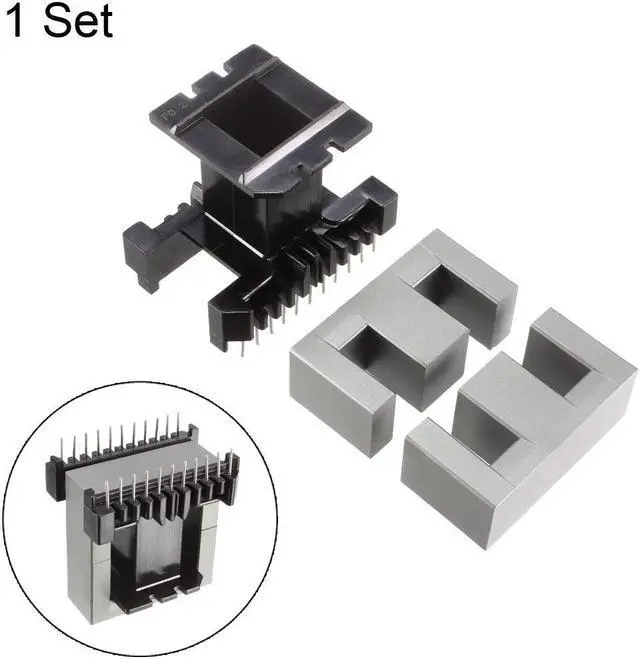

Package content: 1 SET = 2 ferrite halves + 1 bobbin
