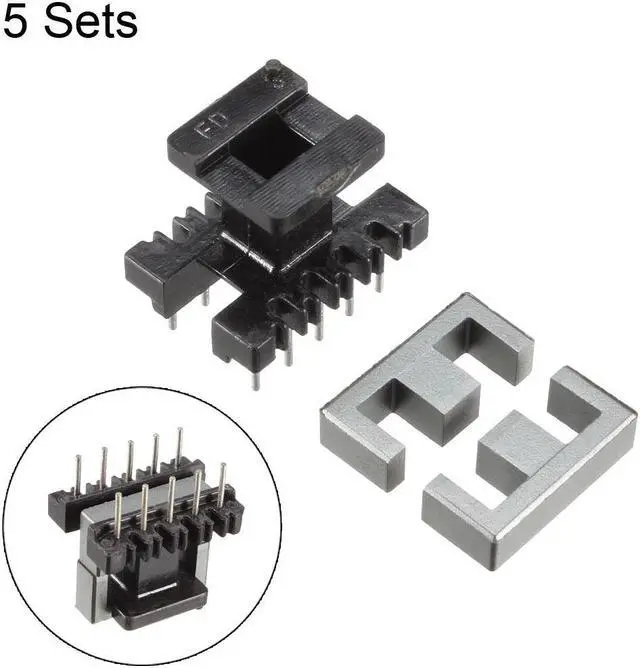

5 Sets EE19 5 with 5pin Transformer Bobbin PC40 Ferrite Core Vertical 10 Ferrite Halves and 5 Bobbin
- Product Name: EE19 Vertical Ferrite Core Transformer Bobbin 5+5 Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE19

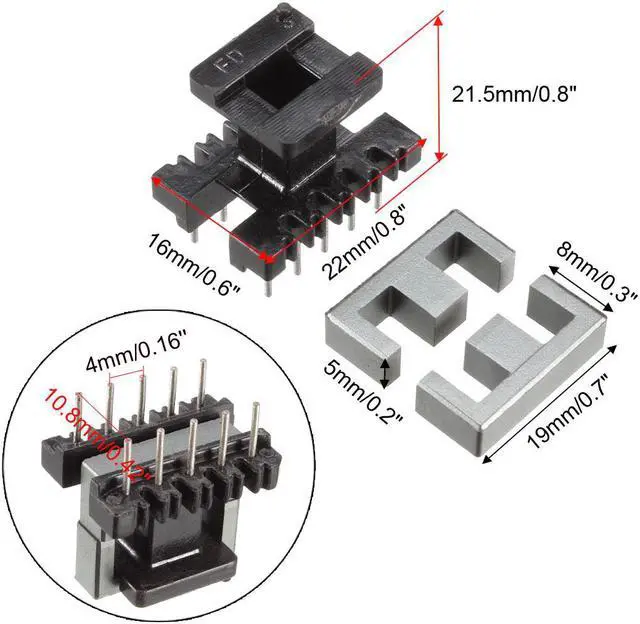

Pin spacing: 4mm/0.16''
Row spacing: 10.8mm/0.42"
Ferrite core Size: 19 x 5 x 8mm/0.7" x 0.2" x 0.3"(L*W*T)
Bobbin size: 22 x 16 x 21.5mm/0.8" x 0.6" x 0.8"(L*W*H)
Winding frame size: 9 x 7 x 7mm/0.3" x 0.2" x 0.2"(L*W*H)

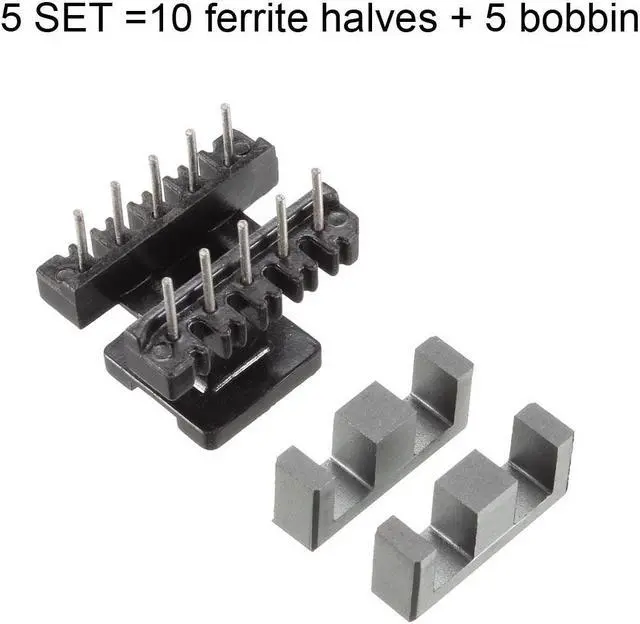

Package content: 5 SET =10 ferrite halves + 5 bobbin
