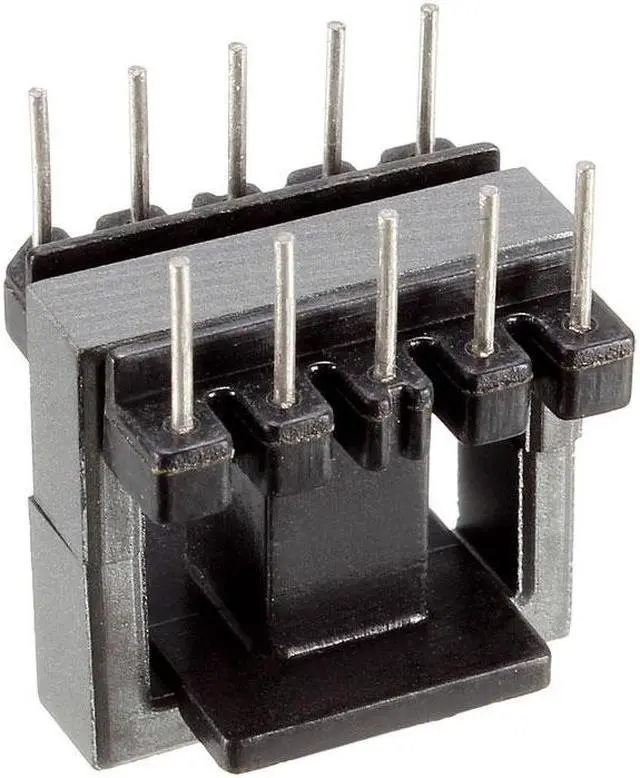

3 Sets EE16 5 with 5pin Transformer Bobbin PC40 Ferrite Core Vertical 6 Ferrite Halves and 3 Bobbin
- Product Name: EE16 Vertical Ferrite Core Transformer Bobbin 5+5 Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE16

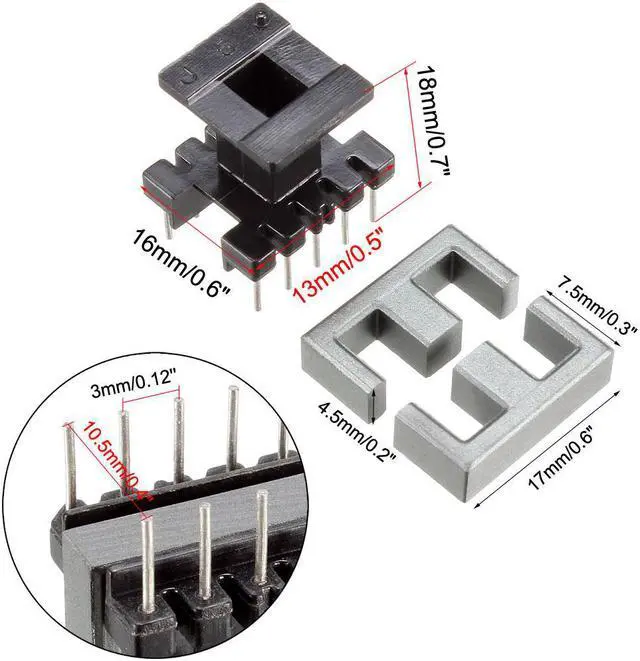

Pin spacing: 3mm/0.12''
Row spacing: 10.5mm/0.4"
Ferrite core Size: 17 x 4.5 x 7.5mm/0.6" x 0.2" x 0.3"(L*W*T)
Bobbin size: 16 x 13 x 18mm/0.6" x 0.5" x 0.7"(L*W*H)
Winding frame size: 8.5 x 6.5 x 5.5mm/0.3" x 0.2" x 0.2"(L*W*H)

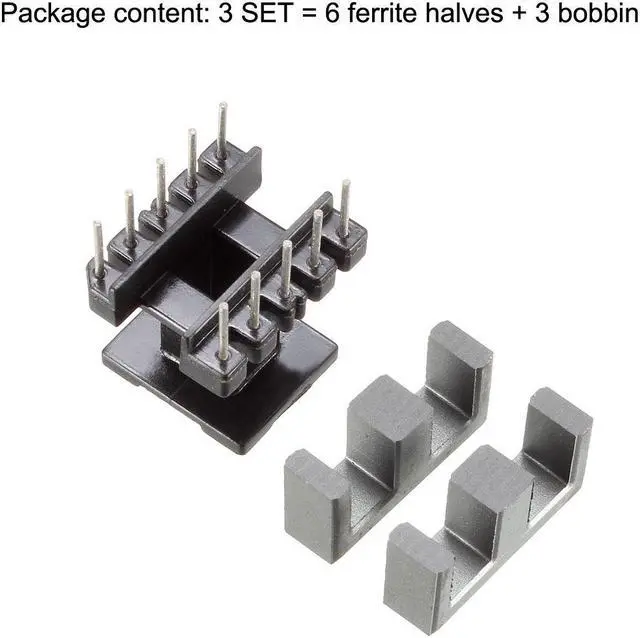

Package content: 3 SET = 6 ferrite halves + 3 bobbin
