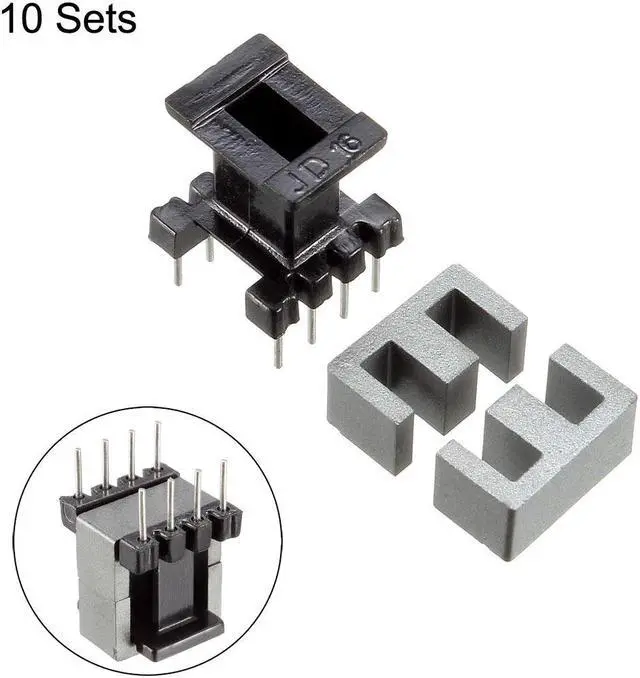

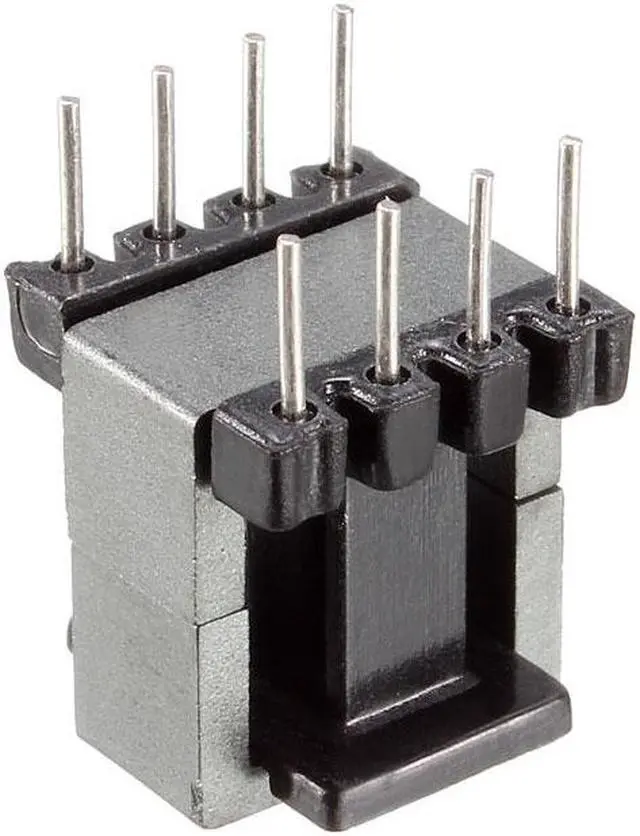

10 Sets EE10 4 with 4pin Transformer Bobbin PC40 Ferrite Core Vertical 20 Ferrite Halves and 10 Bobbin
- Product Name: EE10 Vertical Ferrite Core Transformer Bobbin 4+4Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE10

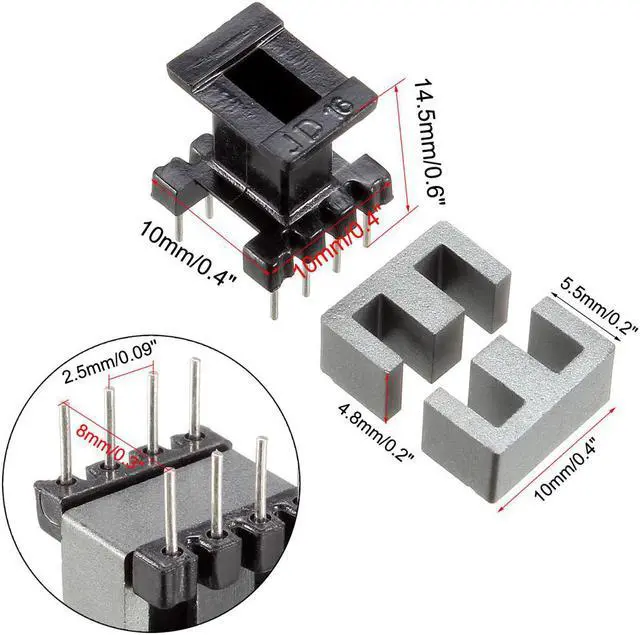

Pin spacing: 2.5mm/0.09''
Row spacing: 8mm/0.3"
Ferrite core Size: 10.3 x 4.8 x 5.5mm/0.4" x 0.2" x 0.2"(L*W*T)
Bobbin size: 10 x 10 x 14.5mm/0.4" x 0.4" x 0.6"(L*W*H)
Winding frame size: 7 x 4 x 6mm/0.2" x 0.1" x 0.2"(L*W*H)

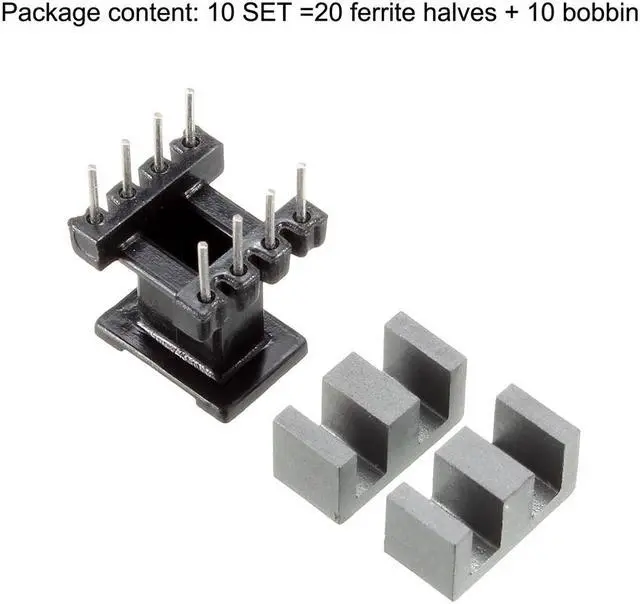

Package content: 10 SET =20 ferrite halves + 10 bobbin
