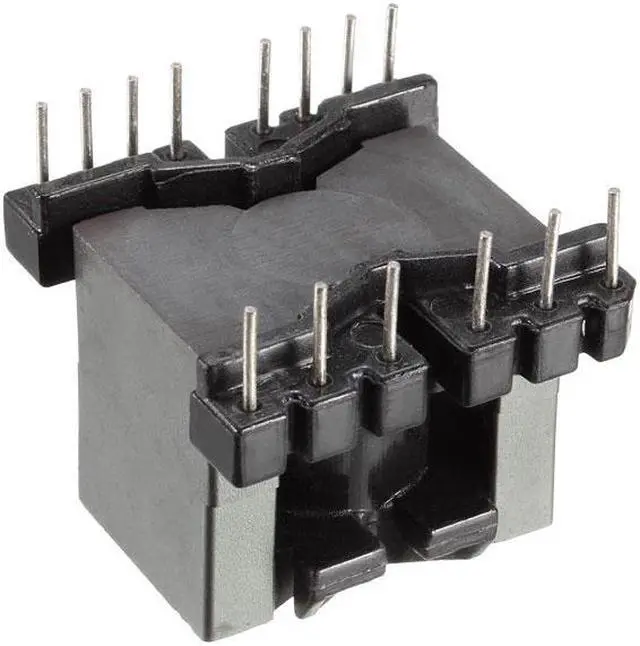

5 Sets PQ20 6 with 8pin Transformer Bobbin PC40 Ferrite Core Vertical 10 Ferrite Halves and 5 Bobbin
- Product Name: PQ20 Vertical Ferrite Core Transformer Bobbin 6+8 Pin
+
+
Overview
Specs
Reviews
Product description
KEY_TAB
Widely used in color TV, monitor, electric car charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
KEY_TAB
KEY_TAB
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: PQ20
Pin spacing: 2.5mm/0.1''
Ferrite core Size: 20.5 x 14 x 8.6mm/0.8" x 0.5" x 0.3"(L*W*T)
Bobbin size: 23.5 x 23.5 x 22mm/0.9" x 0.9" x 0.8"(L*W*H)
Winding frame size: 7 x 10mm/0.3" x 0.4"(L*W)

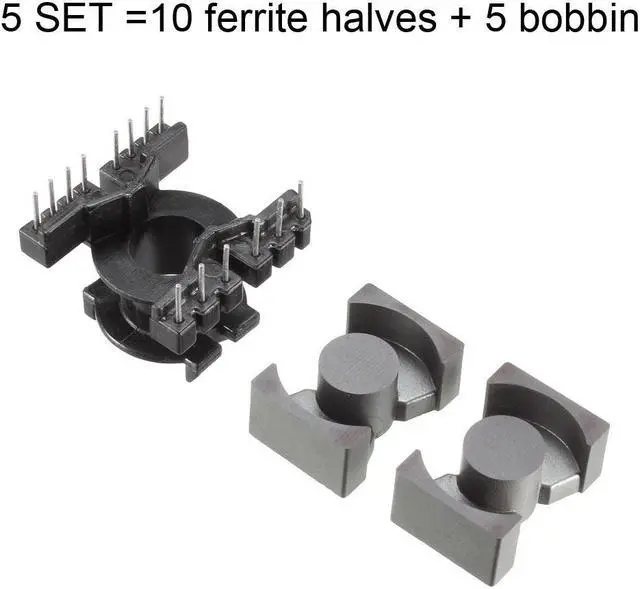

Package content: 5 SET =10 ferrite halves + 5 bobbin
